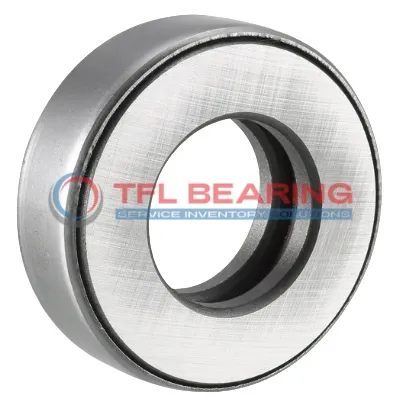

Thrust Ball Bearing With Outside Band T-100-2

Thrust Ball Bearing With Outside Band T-100-2

The T-100-2 is a thrust ball bearing measuring 0.625″ in width and 1.375″ in outer diameter, with a 0.625″ bore. Made from durable 52100 chrome steel, it handles thrust loads up to 2225 lbf.

Its outside band design provides stability, while the 12 steel balls ensure smooth rotation. The bearing performs well at various speeds, with load capacities ranging from 1465 lbf at 100 RPM to 645 lbf at 1500 RPM.

Requiring regular lubrication, it operates in temperatures from -30°C to 110°C. Its compact size and 0.07kg weight make it easy to handle.

Ideal for machinery where space is limited but thrust load support is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-2
  • Brand TFL
  • Bore Dia 0.625000"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 0.656250"
  • Outer Dia 1.375000"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.625000"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 1/4"
  • Ball Qty 12
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 2225 lbf
  • Dynamic Thrust Load(100 RPM) 1465 lbf
  • Dynamic Thrust Load(500 RPM) 905 lbf
  • Dynamic Thrust Load(1500 RPM) 645 lbf
  • Static Thrust Load 6701 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.07 kg
Thrust Ball Bearing With Outside Band T-100-2 dimension drawing
Download DWG Download PDF

Features

How Is T-100-2 Bearing Engineered for Reliability?

T-100-2 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and tear.
Its dynamic thrust load capacity reaches 2225 lbf, ensuring dependable performance under pressure.

The bearing’s 12-ball design distributes loads evenly, enhancing stability and longevity.
With a temperature range of -30° to 110°C, it performs reliably in varied conditions.

T-100-2 Bearing requires lubrication, ensuring smooth operation and reduced friction.
Its precise tolerances and inch measurements make it suitable for specialised applications.

Application

Where Is T-100-2 Bearing Used?
T-100-2 Bearing is commonly seen in industrial settings, especially in machinery that handles axial loads, like hydraulic pumps and gear reducers. Its inch sizing makes it a good fit for equipment designed to US standards.
In automotive applications, T-100-2 Bearing works well in clutch release mechanisms and steering systems, where its thrust capacity ensures reliable performance. The chrome steel construction helps it withstand frequent use.
For automation projects, T-100-2 Bearing provides smooth operation in robotic joints and linear actuators. The required lubrication keeps it running efficiently in repetitive motion tasks.
Around the home, you might find T-100-2 Bearing in power tools like drills, where its compact size and load handling are useful. The temperature range allows it to perform in various environments.
