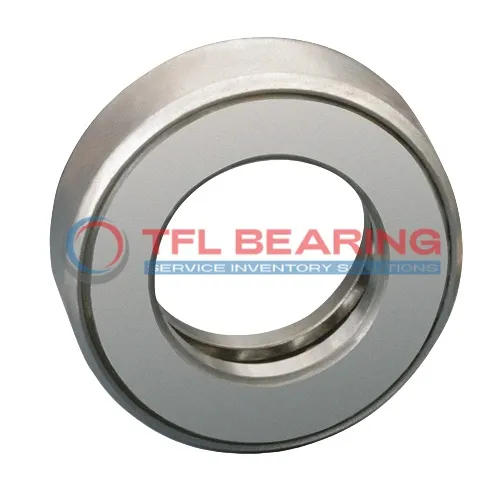

Thrust Ball Bearing With Outside Band T-100-13

Thrust Ball Bearing With Outside Band T-100-13

The T-100-13 is a thrust ball bearing with a 1.25-inch bore and 2.1875-inch outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 4250 lbf and operates smoothly across various speeds, from 100 to 1500 RPM.

Its outside band design provides stability, while the 17 steel balls ensure even load distribution. The bearing requires regular lubrication for optimal performance and works in temperatures from -30°C to 110°C.

With precise tolerances and a lightweight 0.17kg build, it’s a reliable choice for machinery needing consistent thrust support. Compliant with RoHS and REACH standards, it’s safe for industrial use. Ideal for applications like pumps or gear systems where steady performance matters.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-13
  • Brand TFL
  • Bore Dia 1.25"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.281250"
  • Outer Dia 2.187500"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.687500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 5/16"
  • Ball Qty 17
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 4250 lbf
  • Dynamic Thrust Load(100 RPM) 2800 lbf
  • Dynamic Thrust Load(500 RPM) 1725 lbf
  • Dynamic Thrust Load(1500 RPM) 1240 lbf
  • Static Thrust Load 14833 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.17 kg

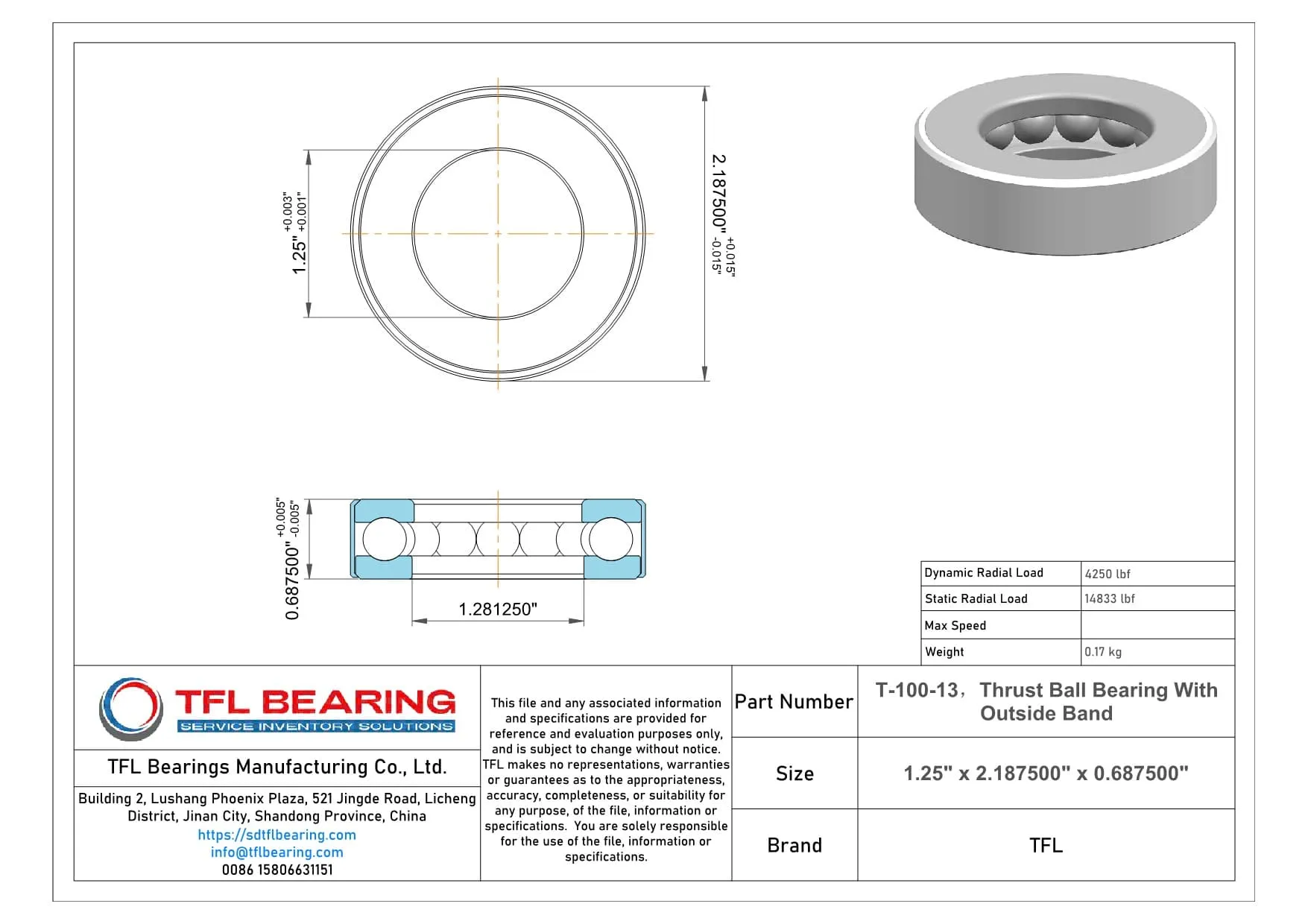

Thrust Ball Bearing With Outside Band T-100-13 dimension drawing
Download DWG Download PDF

Features

How Does T-100-13 Bearing Handle Heavy Loads?

T-100-13 Bearing is crafted from 52100 chrome steel, offering robust performance under high thrust loads.
Its static thrust load capacity reaches 14,833 lbf, making it suitable for demanding industrial applications.

The bearing’s 17-ball design ensures even load distribution, reducing wear and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in varied operating conditions.

T-100-13 Bearing requires lubrication, ensuring smooth operation and extended service life.
Its inch-based measurements provide precise compatibility for machinery using imperial units.

Application

Industrial Uses of T-100-13 Bearing
T-100-13 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gearboxes, where its thrust load capacity ensures reliable performance. The inch sizing makes it a good fit for equipment designed to imperial measurements.

In automotive applications, T-100-13 Bearing handles axial loads in components like steering systems and transmissions. Its chrome steel construction provides durability under constant stress and varying speeds.

For automation systems, T-100-13 Bearing supports precise movements in robotic arms and conveyor belts. The required lubrication helps maintain smooth operation over extended periods.

In household appliances like washing machines, T-100-13 Bearing’s balanced design reduces vibration and noise. Its temperature tolerance ensures stability even during prolonged use.
