Thrust Ball Bearing With Outside Band T-100-10

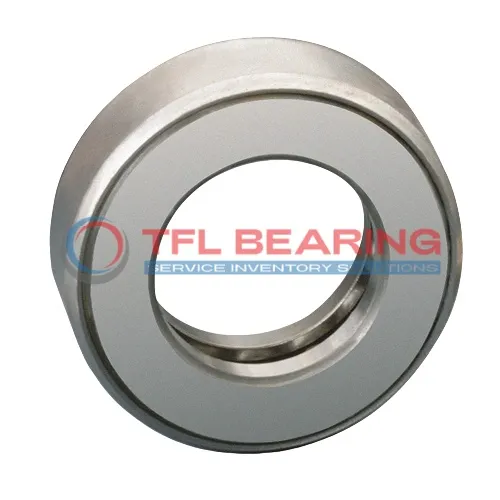

Thrust Ball Bearing With Outside Band T-100-10

The T-100-10 is a thrust ball bearing measuring 1.06″ by 2.19″ by 0.81″, made from durable 52100 chrome steel. It handles thrust loads up to 4985 lbf and performs well at various speeds, with reduced load capacity at higher RPMs.

Its design includes 13 steel balls, each 3/8″ in diameter, ensuring smooth operation under pressure. The bearing requires regular lubrication to maintain performance.

With a static load capacity of 16334 lbf, it’s built for heavy-duty applications. Suitable for use in temperatures ranging from -30°C to 110°C.

This bearing is compliant with RoHS and REACH standards, making it a safe and reliable choice for industrial machinery or equipment with thrust load requirements. Weighing 0.24kg, it’s sturdy yet manageable for installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-10
  • Brand TFL
  • Bore Dia 1.062500"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.093750"
  • Outer Dia 2.187500"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.812500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 3/8"
  • Ball Qty 13
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 4985 lbf
  • Dynamic Thrust Load(100 RPM) 3285 lbf
  • Dynamic Thrust Load(500 RPM) 2025 lbf
  • Dynamic Thrust Load(1500 RPM) 1455 lbf
  • Static Thrust Load 16334 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.24 kg
Thrust Ball Bearing With Outside Band T-100-10 dimension drawing
Download DWG Download PDF

Features

How Does T-100-10 Bearing Handle Heavy Loads?

T-100-10 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.

Its static thrust load capacity reaches 16334 lbf, making it suitable for demanding industrial applications.

The bearing’s design includes 13 balls, each with a diameter of 3/8″, ensuring even load distribution.

With a temperature range of -30° to 110°C, it performs reliably in various environmental conditions.

Application

Industrial Uses of T-100-10 Bearing
T-100-10 Bearing is commonly used in industrial settings, especially in heavy machinery where axial loads are a concern, like hydraulic pumps and gear reducers. Its inch sizing makes it a good fit for equipment designed to imperial measurements.

What Makes T-100-10 Bearing a Preferred Choice?
In automotive applications, T-100-10 Bearing handles thrust loads in components such as steering systems and transmissions. The chrome steel construction ensures it can withstand frequent use without significant wear.

Built for Heavy-Duty Use: T-100-10 Bearing
For automation systems, T-100-10 Bearing provides reliable performance in robotic arms and assembly line equipment. The required lubrication helps maintain smooth operation over long periods.

Medical vs Industrial: Where T-100-10 Bearing Excels
While not typically used in medical devices, T-100-10 Bearing shines in industrial tools like presses and lathes. Its high static thrust load capacity makes it suitable for demanding environments.
