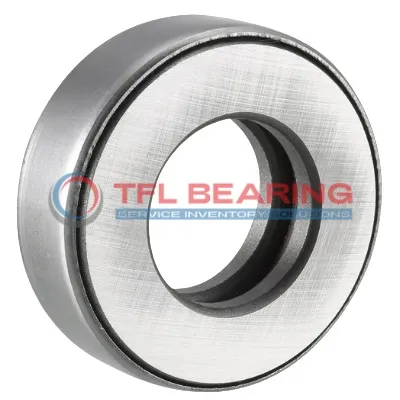

Thrust Ball Bearing With Outside Band T-100-1

Thrust Ball Bearing With Outside Band T-100-1

The T-100-1 is a compact thrust ball bearing measuring 0.5″ in bore diameter and 1.1875″ in outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 1930 lbf and operates smoothly across a range of speeds, with reduced load capacity at higher RPMs.

Its design includes an outside band for added stability, and it requires regular lubrication for optimal performance. The bearing works reliably in temperatures from -30°C to 110°C, making it suitable for various environments.

With a static load capacity of 5584 lbf and a lightweight build at just 0.06kg, it’s a practical choice for applications like small machinery or automotive components. Compliant with RoHS and REACH standards, it’s both safe and dependable.

The bearing features 10 steel balls, each 1/4″ in diameter, ensuring smooth rotation under thrust loads. Its inch-sized dimensions make it a handy option for systems using imperial measurements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-1
  • Brand TFL
  • Bore Dia 0.5"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 0.531250"
  • Outer Dia 1.187500"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.625000"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 1/4"
  • Ball Qty 10
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 1930 lbf
  • Dynamic Thrust Load(100 RPM) 1275 lbf
  • Dynamic Thrust Load(500 RPM) 785 lbf
  • Dynamic Thrust Load(1500 RPM) 565 lbf
  • Static Thrust Load 5584 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.06 kg

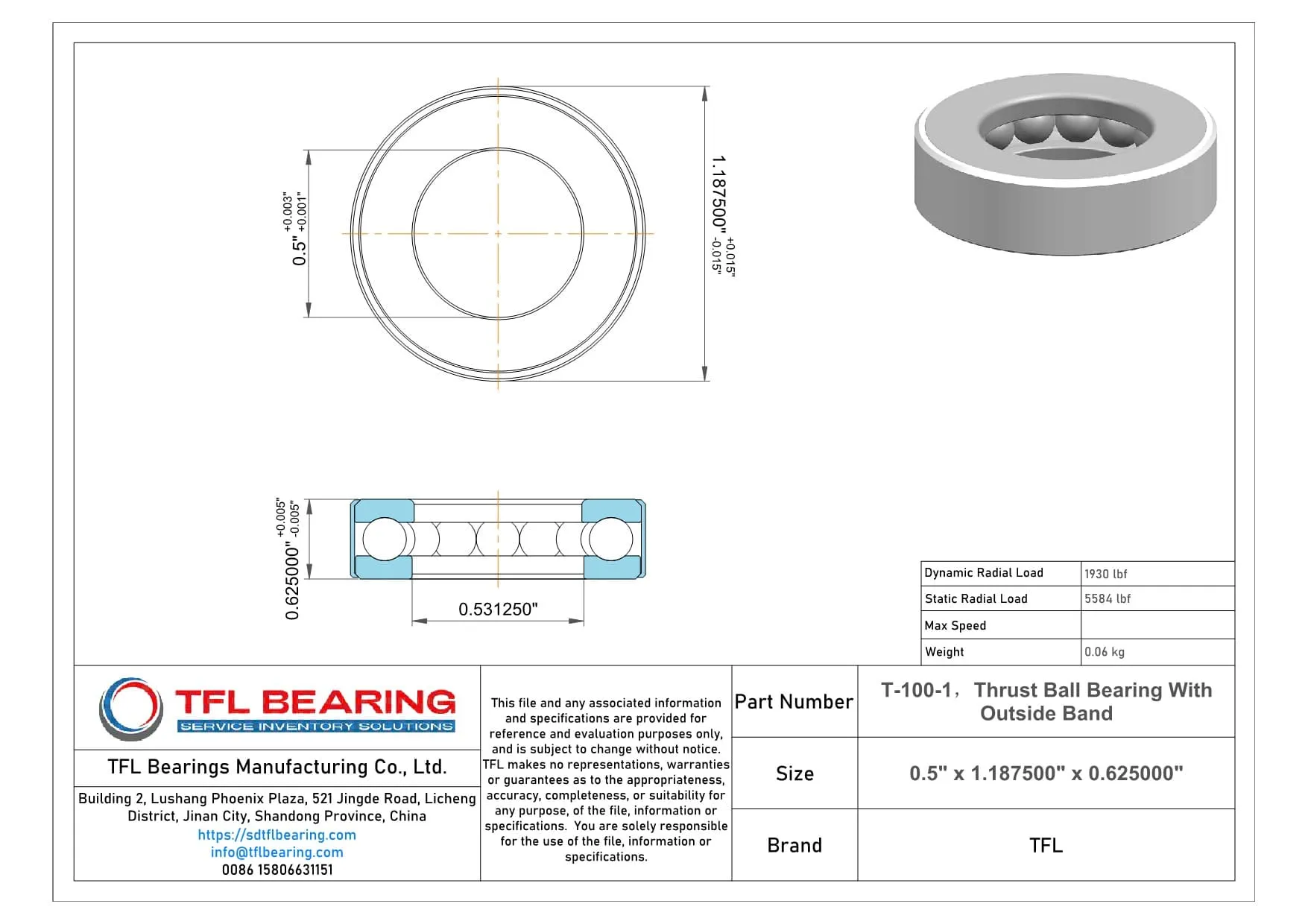

Thrust Ball Bearing With Outside Band T-100-1 dimension drawing
Download DWG Download PDF

Features

How Does T-100-1 Bearing Handle Heavy Loads?

T-100-1 Bearing is built with 52100 chrome steel rings and balls, offering strong resistance to thrust loads.

Its static thrust load capacity reaches 5584 lbf, ensuring reliable performance in demanding conditions.

The bearing’s design includes 10 evenly spaced 1/4″ balls, promoting smooth operation under pressure.

With a temperature range of -30° to 110°C, it performs well in various environments.

Application

Industrial Uses of T-100-1 Bearing
T-100-1 Bearing is commonly used in industrial settings, especially in machinery that handles axial loads, like presses and lathes. Its inch sizing makes it a good fit for equipment designed to US standards.

Where Is T-100-1 Bearing Used?
You’ll often find T-100-1 Bearing in automotive applications, such as steering systems and transmissions, where its thrust load capacity is key. The chrome steel construction ensures it can handle frequent use without wearing out quickly.

Built for Heavy-Duty Use: T-100-1 Bearing
T-100-1 Bearing works well in heavy machinery, offering reliable performance under high thrust loads. Its open design allows for easy lubrication, which helps extend its service life.

Automotive vs Aerospace: Applications of T-100-1 Bearing
In automotive systems, T-100-1 Bearing is ideal for gearboxes and clutches, while in aerospace, it suits lighter applications like control mechanisms. The temperature range ensures it performs well in various environments.

Perfect Fit for Automation: T-100-1 Bearing
T-100-1 Bearing is a solid choice for automated systems, such as conveyor belts and robotic arms, where precision and durability matter. The inch measurements make it easy to integrate into existing setups.
