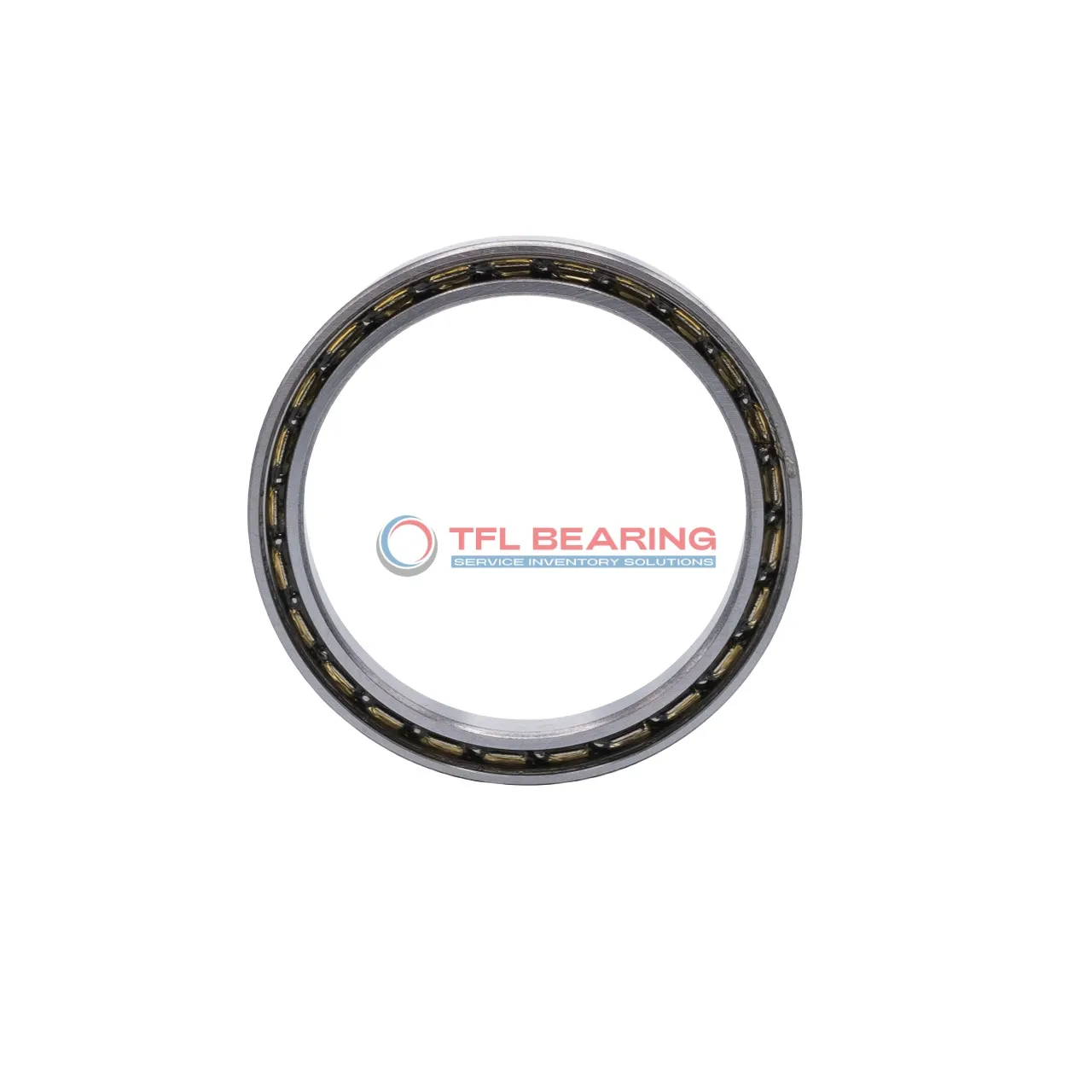

Thin Section Ball Bearings SER1458

Thin Section Ball Bearings SER1458

The SER1458 is a thin-section ball bearing with a compact size of 0.625″×0.875″×0.1562″, made entirely from stainless steel for durability. It handles radial loads up to 218 lbf and can spin at speeds up to 10,000 RPM.

Its open design requires regular lubrication but allows for easy maintenance. The ABEC-1 tolerance ensures reliable performance in light-duty applications.

This bearing operates in temperatures from -86°F to 230°F, making it versatile for various environments. Ideal for small machinery or instruments where space is limited.

Weighing just 3.64g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SER1458
  • Brand TFL
  • Bore Dia 0.625"
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 0.875"
  • Outer Dia Tolerance -0.009mm to 0
  • Width 0.1562"
  • Width Tolerance -0.12mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 218 lbf
  • Static Radial Load 139 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 3.64 g
  • Price（$） 2.5
Thin Section Ball Bearings SER1458 dimension drawing
Download DWG Download PDF

Features

Why Choose SER1458 Bearing for Precision Tasks?

SER1458 Bearing is crafted with stainless steel rings and balls, ensuring precise radial load handling.
Its ABEC-1 tolerance class guarantees consistent performance in applications requiring accuracy.
The open design allows for easy lubrication, maintaining smooth operation up to 10,000 rpm.
With a temperature range of -86 to 230°F, it adapts well to varying environmental conditions.

Application

Ideal for Precision: SER1458 Bearing
SER1458 Bearing works well in industrial robots, where its thin section design saves space without sacrificing performance. The stainless steel construction ensures it can handle frequent movements smoothly.

In automotive applications, SER1458 Bearing fits neatly into compact spaces like steering systems or small electric motors. Its ABEC-1 tolerance provides reliable operation for everyday driving conditions.

For medical devices, SER1458 Bearing’s lightweight and corrosion-resistant materials make it suitable for delicate instruments. The open design allows for easy cleaning, which is essential in sterile environments.

Automation equipment benefits from SER1458 Bearing’s ability to handle moderate radial loads at high speeds. Its inch sizing makes it a convenient choice for machinery using imperial measurements.
