Thin Section Ball Bearings SER1212

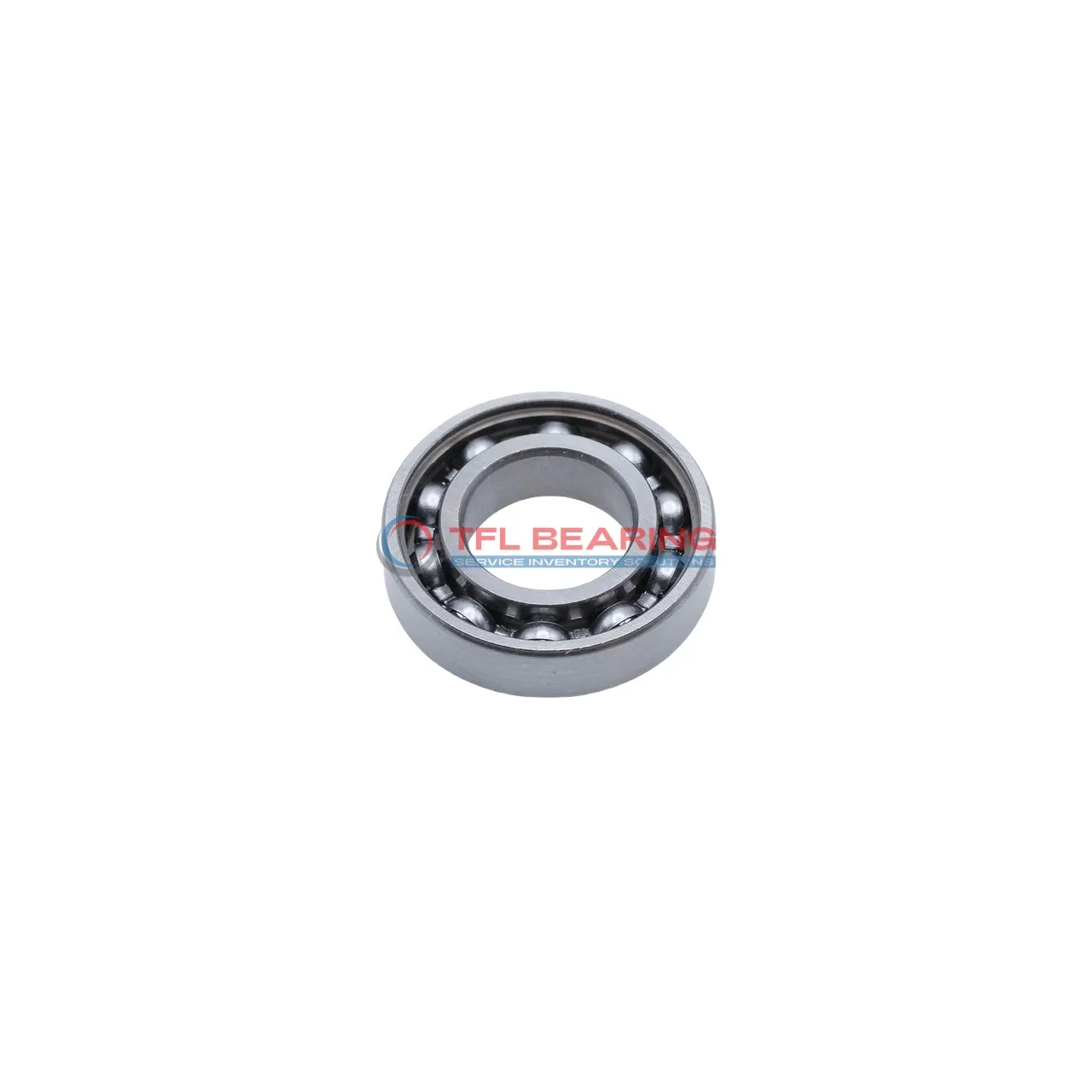

Thin Section Ball Bearings SER1212

The SER1212 is a slim radial ball bearing with a 0.5-inch bore and 0.75-inch outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 207 lbf and can spin at speeds up to 12,000 RPM.

Its open design makes lubrication straightforward, while the stainless steel cage ensures smooth operation. The bearing performs reliably in temperatures ranging from -86°F to 230°F.

With a lightweight build at just 3.01 grams, it’s ideal for compact applications like small motors or precision instruments. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

The ABEC-1 tolerance and C0 radial clearance offer a balance of performance and affordability. Perfect for projects where space is limited but reliability is key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SER1212
  • Brand TFL
  • Bore Dia 0.5"
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 0.75"
  • Outer Dia Tolerance -0.009mm to 0
  • Width 0.1562"
  • Width Tolerance -0.12mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 207 lbf
  • Static Radial Load 121 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 3.01 g
  • Price（$） 2.8
Thin Section Ball Bearings SER1212 dimension drawing
Download DWG Download PDF

Features

Performance Features of SER1212 Bearing

SER1212 Bearing is crafted with stainless steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 207 lbf ensures steady performance in various applications.

The open design allows for easy lubrication, maintaining smooth operation over time.
With a maximum speed of 12,000 rpm, it delivers efficiency without compromising durability.

SER1212 Bearing operates in temperatures from -86 to 230°F, adapting to diverse environments.
Its ABEC-1 tolerance class ensures consistent precision for everyday use.

Application

Common Applications of SER1212 Bearing
SER1212 Bearing is widely used in robotics, especially in compact robotic arms where space is limited but smooth rotation is essential. Its thin section design fits neatly into tight spaces without compromising performance.

In medical devices like portable scanners, SER1212 Bearing offers reliable movement thanks to its stainless steel construction. The open seal design allows for easy cleaning, which is vital in sterile environments.

For consumer electronics such as high-end cameras, SER1212 Bearing ensures precise lens adjustments. Its lightweight build and corrosion resistance make it ideal for portable devices that face daily wear and tear.

Automotive enthusiasts appreciate SER1212 Bearing in custom gear systems where radial load support is key. The inch sizing makes it compatible with many aftermarket parts, simplifying upgrades.

In industrial automation, SER1212 Bearing keeps conveyor rollers running smoothly. Its ABEC-1 tolerance provides consistent performance even in high-speed production lines.
