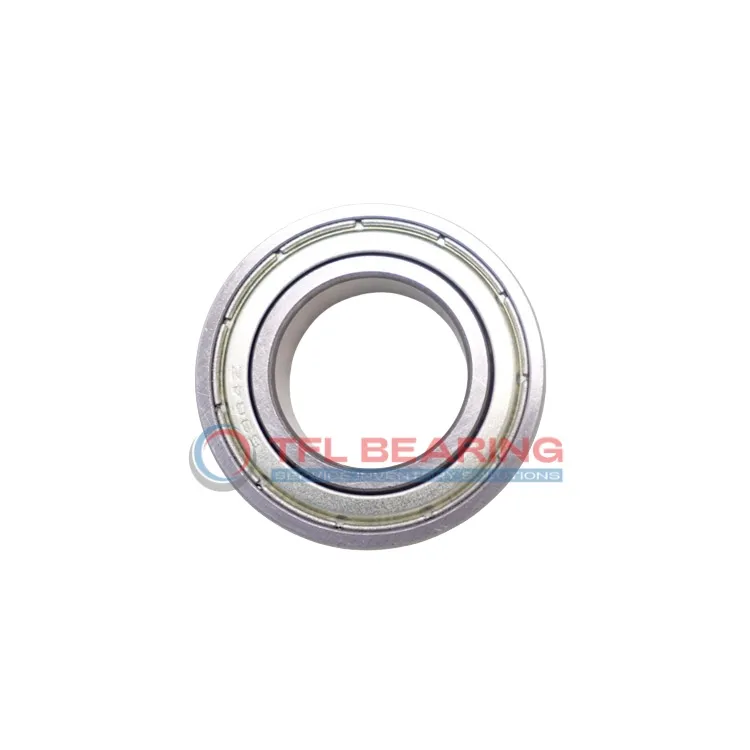

Thin Section Ball Bearings S6917zz

Thin Section Ball Bearings S6917zz

The S6917zz is a thin-section ball bearing with an 85mm bore and 120mm outer diameter, crafted entirely from stainless steel for durability. Its compact 18mm width makes it ideal for space-sensitive applications while handling radial loads up to 6454 lbf.

The shielded design keeps contaminants out, extending its lifespan, and it spins smoothly at speeds up to 4800 RPM. With a C0 clearance rating, it offers reliable performance under typical operating conditions.

This bearing operates in temperatures from -86°F to 230°F and requires regular lubrication for optimal performance. Perfect for machinery where slim profiles and corrosion resistance are key, like medical equipment or food processing units.

Weighing 535g, it meets RoHS and REACH standards, ensuring safe use across various industries. Its ABEC-1 tolerance provides consistent quality for general-purpose applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6917zz
  • Brand TFL
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.200mm to 0
  • Radial Clearance 0.012mm to 0.036mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 6454 lbf
  • Static Radial Load 5989 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 535 g
  • Price（$） 4
Thin Section Ball Bearings S6917zz dimension drawing
Download DWG Download PDF

Features

Performance Features of S6917zz Bearing

S6917zz Bearing is crafted with stainless steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6454 lbf, ensuring reliable performance in various applications.

The shielded design of S6917zz Bearing protects against contaminants, enhancing its durability.
With a maximum speed of 4,800 rpm, it balances efficiency and longevity.

S6917zz Bearing operates in temperatures from -86 to 230 °F, making it versatile for different environments.
Its ABEC-1 tolerance class ensures consistent performance for precision tasks.

Application

Industrial Uses of S6917zz Bearing
S6917zz Bearing works well in industrial settings, especially for machinery needing slim profiles like packaging equipment or textile machines. Its shielded design helps keep contaminants out while maintaining smooth rotation.

What Makes S6917zz Bearing a Preferred Choice?
In robotics, S6917zz Bearing fits neatly into articulated arms where space is tight but precision matters. The stainless steel construction also resists corrosion in humid or washdown environments.

Built for Heavy-Duty Use: S6917zz Bearing
You’ll often spot S6917zz Bearing in conveyor systems handling medium loads, thanks to its balanced radial load capacity. The C0 clearance provides reliable performance without excessive play.

Medical vs Industrial: Where S6917zz Bearing Excels
While S6917zz Bearing suits lab equipment like centrifuges, it really shines in food processing lines where frequent cleaning is needed. The all-stainless materials meet hygiene standards nicely.

How Does S6917zz Bearing Support High-Speed Operations?
At moderate speeds up to 4,800 rpm, S6917zz Bearing keeps 3D printer carriages moving accurately. The thin section design saves weight without sacrificing durability.
