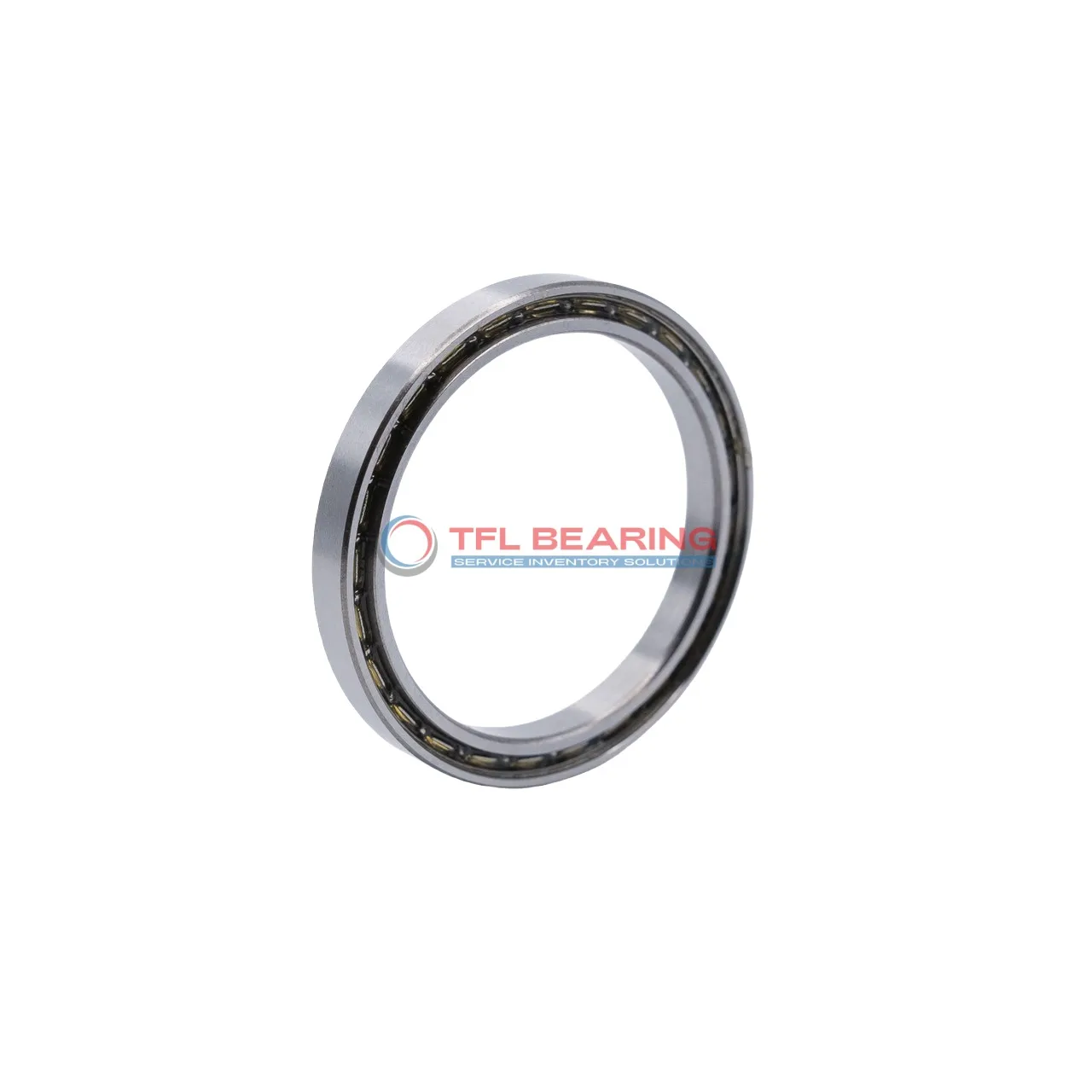

Thin Section Ball Bearings 6800

Thin Section Ball Bearings 6800

The 6800 is a slim, lightweight ball bearing with a 10mm bore and 19mm outer diameter, measuring just 5mm wide. Made from chrome steel, it’s built to handle radial loads up to 387 lbf while spinning at speeds up to 40,000 RPM.

Its open design allows for easy lubrication, and the stainless steel cage ensures smooth operation. With a radial clearance of 0.003mm to 0.018mm, it offers reliable performance in tight spaces.

This bearing is ideal for compact applications like small motors or precision instruments where space is limited. It operates efficiently in temperatures from -30°C to 110°C.

Weighing only 5.6g, it’s a practical choice for lightweight designs. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6800
  • Brand TFL
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 5 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 387 lbf
  • Static Radial Load 189 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 40000 rpm
  • Weight 5.6 g
  • Price（$） 1.8
Thin Section Ball Bearings 6800 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6800 Bearing

6800 Bearing is designed with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 387 lbf, making it suitable for various applications.

The stainless steel cage ensures smooth operation, even at high speeds up to 40,000 rpm.
With a compact size of 10 mm×19 mm×5 mm, it fits well in space-constrained designs.

6800 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class provides consistent performance for general-purpose use.

Application

Common Applications of 6800 Bearing
6800 Bearing is widely used in industrial equipment like small conveyor systems and precision machinery, where its compact size and radial load capacity are beneficial. The open design simplifies lubrication, ensuring smooth operation in continuous-use environments.

In automotive applications, 6800 Bearing fits well in components such as electric motors and small gearboxes, thanks to its high-speed capability. The chrome steel construction offers durability, even in demanding conditions.

For automation and robotics, 6800 Bearing is a reliable choice for lightweight robotic arms and 3D printers. Its low friction and ABEC-1 tolerance ensure consistent performance in precise movements.

In consumer electronics, 6800 Bearing can be found in devices like cooling fans and small printers. The lightweight design and stainless steel cage make it ideal for compact, low-maintenance applications.
