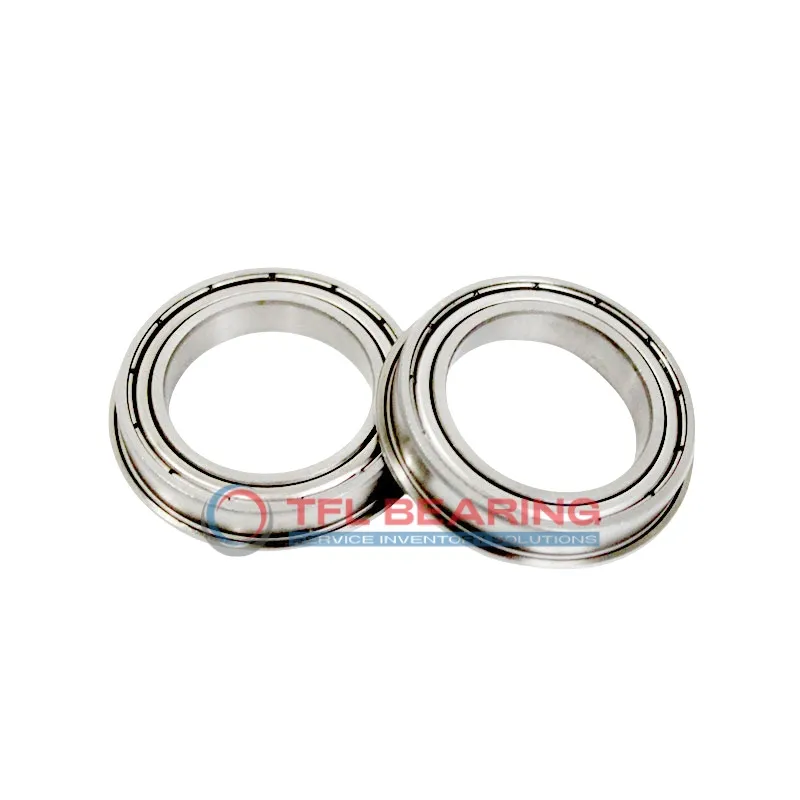

Standard Flanged Ball Bearings SF63800ZZ

Standard Flanged Ball Bearings SF63800ZZ

The SF63800ZZ is a compact flanged ball bearing with a 10mm bore and 19mm outer diameter, crafted from stainless steel for durability. Its shielded design keeps dirt out while allowing smooth rotation at speeds up to 30,600 RPM.

With a dynamic radial load capacity of 348 lbf, it handles moderate forces well. The stainless steel cage and chrome steel balls ensure reliable performance in temperatures from -30°C to 110°C.

The flange adds stability, making it easier to mount in tight spaces. Ideal for small machinery, electric motors, or applications where space is limited.

Weighing just 7.8g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a practical choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF63800ZZ
  • Brand TFL
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 21 mm
  • Flange Thickness 1.5 mm
  • Ball Qty 10
  • Ball Dia 2.381 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Stainless Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 348 lbf
  • Static Radial Load 170 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 30600 rpm
  • Weight 7.80 g
  • Price（$） 5.17
Standard Flanged Ball Bearings SF63800ZZ dimension drawing
Download DWG Download PDF

Features

How Does SF63800ZZ Bearing Reduce Friction?

SF63800ZZ Bearing features stainless steel rings and a chrome steel ball setup, ensuring smooth operation with minimal friction.
The shielded design helps keep contaminants out, maintaining consistent performance over time.
With a dynamic radial load capacity of 348 lbf, it handles moderate loads efficiently.
Its high-speed capability of 30,600 rpm makes it suitable for precision applications.

Why Choose SF63800ZZ Bearing for Precision Tasks?

SF63800ZZ Bearing is built with a stainless steel cage and precise ball alignment, enhancing accuracy in radial load applications.
The ABEC-1 tolerance class ensures reliable performance for tasks requiring consistent precision.
Its compact size (10 mm×21 mm×7 mm) makes it ideal for space-constrained installations.
The shielded seals protect against dust, prolonging its operational life.

Engineered for Efficiency: SF63800ZZ Bearing

SF63800ZZ Bearing combines stainless steel construction with chrome steel balls for balanced durability and efficiency.
The flange design provides secure mounting, reducing misalignment risks during operation.
With a maximum speed of 30,600 rpm, it delivers smooth performance in high-speed scenarios.
Its lightweight design (7.80 g) ensures easy handling without compromising strength.

Application

Common Applications of SF63800ZZ Bearing
SF63800ZZ Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its compact size and shielded design help keep dust and debris out, ensuring smooth operation.

Industrial Uses of SF63800ZZ Bearing
In conveyor systems and packaging machinery, SF63800ZZ Bearing provides reliable radial load support. The stainless steel construction makes it resistant to corrosion in humid or washdown environments.

Where Is SF63800ZZ Bearing Used?
You’ll often find SF63800ZZ Bearing in printer mechanisms and office equipment, where its low noise and high-speed capabilities are valued. The flange design also simplifies installation in tight spaces.

Built for Heavy-Duty Use: SF63800ZZ Bearing
SF63800ZZ Bearing handles demanding conditions in automotive components like alternators and cooling fans. Its ABEC-1 tolerance ensures consistent performance without unnecessary precision costs.

Medical vs Industrial: Where SF63800ZZ Bearing Excels
While SF63800ZZ Bearing works well in medical devices like dental handpieces, its real strength lies in industrial automation. The shielded design protects against contaminants in both environments.
