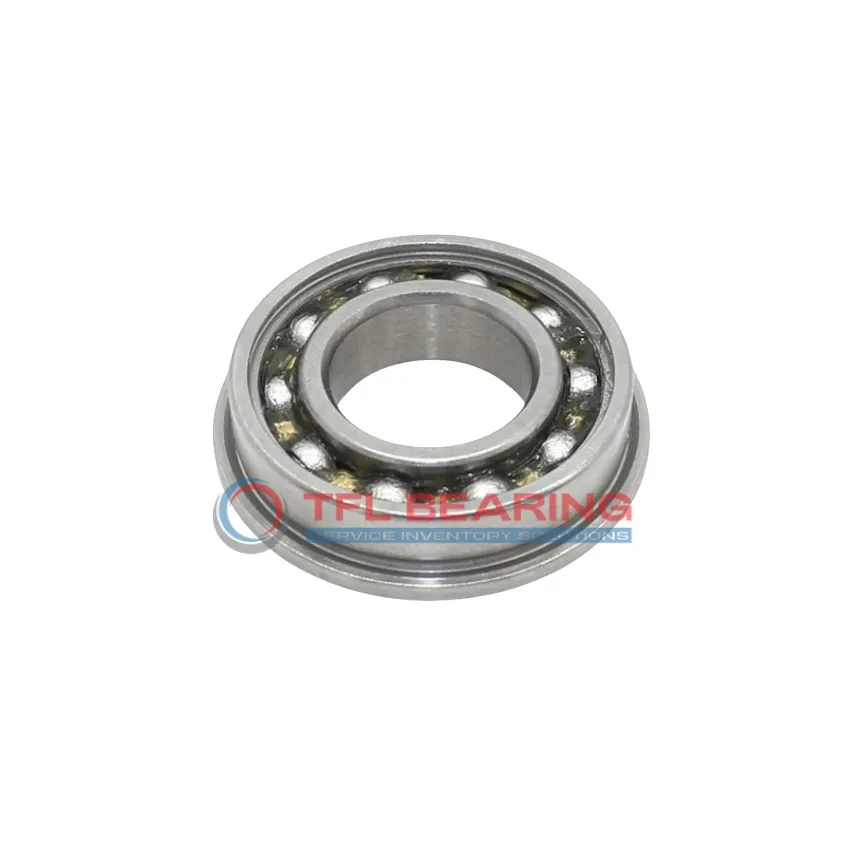

Standard Flanged Ball Bearings F6908

Standard Flanged Ball Bearings F6908

The F6908 is a standard flanged ball bearing with a 40mm bore and 62mm outer diameter, featuring a compact width of 12mm. Made from chrome steel, it’s built to handle radial loads up to 3075 lbf and speeds of 11000 RPM.

The flange design adds stability, making it easier to mount in tight spaces. Its open construction allows for simple lubrication and maintenance.

With a stainless steel cage and balls, it offers reliable performance in temperatures from -30°C to 110°C. The ABEC-1 tolerance ensures smooth operation for general applications.

Ideal for use in machinery where space is limited, such as small motors or conveyor systems. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F6908
  • Brand TFL
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013 mm to 0
  • Width 12 mm
  • Width Tolerance -0.12 mm to 0
  • Flange Outer Dia 65 mm
  • Flange Thickness 2.5 mm
  • Ball Qty 14
  • Ball Dia 6.747 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 3075 lbf
  • Static Radial Load 2241 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Price（$） 4.9
Standard Flanged Ball Bearings F6908 dimension drawing
Download DWG Download PDF

Features

Performance Features of F6908 Bearing

F6908 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 3075 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 11,000 rpm, it delivers a balance of durability and efficiency.

F6908 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Common Applications of F6908 Bearing
F6908 Bearing is widely used in industrial equipment like conveyor systems and small gearboxes, where its compact flanged design helps with easy mounting and alignment. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, F6908 Bearing fits well in electric motors and transmission systems, providing smooth radial load support. Its metric sizing makes it compatible with various vehicle models, offering reliable performance.

For home appliances, F6908 Bearing works efficiently in devices like washing machines and fans, where its open design allows for simple maintenance. The stainless steel cage adds longevity, making it a cost-effective choice for everyday use.

Automation systems benefit from F6908 Bearing’s precision, particularly in robotic arms and small machinery. The ABEC-1 tolerance ensures consistent operation, while the flange provides added stability during high-speed rotations.
