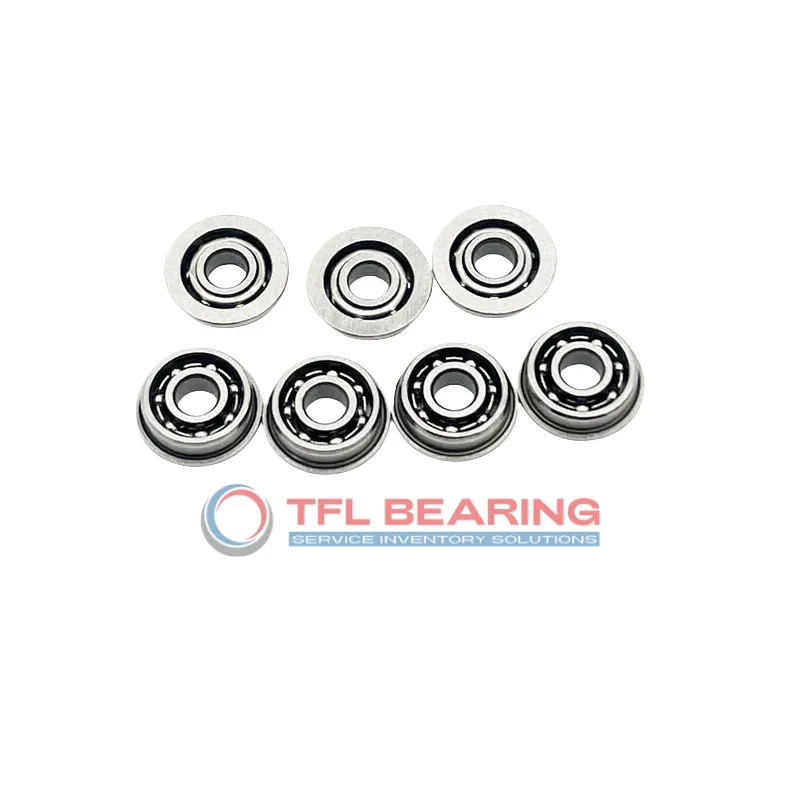

Standard Flanged Ball Bearings F63806

Standard Flanged Ball Bearings F63806

The F63806 is a compact flanged ball bearing with a 30mm bore and 42mm outer diameter, featuring a 45mm flange for secure mounting. Made from chrome steel, it handles radial loads up to 1020 lbf and spins smoothly at speeds up to 15,000 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing operates well in temperatures from -30°C to 110°C, making it versatile for various conditions.

The flange provides added stability, ideal for applications where precise alignment is needed. Suitable for use in small machinery, electric motors, or conveyor systems where space is limited.

Compliant with RoHS and REACH standards, it’s a reliable choice for both replacements and new installations. The ABEC-1 tolerance ensures consistent performance without unnecessary complexity.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F63806
  • Brand TFL
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.010mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011 mm to 0
  • Width 10 mm
  • Width Tolerance -0.12 mm to 0
  • Flange Outer Dia 45 mm
  • Flange Thickness 2 mm
  • Ball Qty 17
  • Ball Dia 3.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 1020 lbf
  • Static Radial Load 765 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Price（$） 4.7
Standard Flanged Ball Bearings F63806 dimension drawing
Download DWG Download PDF

Features

How Does F63806 Bearing Reduce Friction?

F63806 Bearing features chrome steel rings and balls, designed to minimise friction during radial load operations.
Its dynamic radial load capacity of 1020 lbf ensures smooth performance in various applications.

The stainless steel cage maintains ball alignment, reducing wear and enhancing longevity.
With a maximum speed of 15,000 rpm, it offers both efficiency and durability.

F63806 Bearing operates within a temperature range of -30° to 110°C, suitable for diverse environments.
Its ABEC-1 tolerance class ensures consistent performance under standard conditions.

Application

Industrial Uses of F63806 Bearing
F63806 Bearing is commonly used in conveyor systems, where its flanged design helps maintain alignment under radial loads. The chrome steel construction ensures durability in dusty or humid industrial environments.

Where Is F63806 Bearing Used?
You’ll often find F63806 Bearing in small electric motors, thanks to its compact size and reliable performance. Its open seal design makes it easy to lubricate, extending its service life in high-speed applications.

Built for Heavy-Duty Use: F63806 Bearing
F63806 Bearing handles radial loads effortlessly in machinery like packaging equipment. The stainless steel cage adds corrosion resistance, making it suitable for food processing or chemical industries.

Automotive vs Aerospace: Applications of F63806 Bearing
In automotive alternators, F63806 Bearing provides smooth rotation with minimal maintenance. While not typically used in aerospace, its precision suits hobbyist drones or lightweight robotic arms.

Perfect Fit for Automation: F63806 Bearing
F63806 Bearing works well in 3D printer extruders due to its low-friction operation. The ABEC-1 tolerance offers enough precision for most consumer-grade automated devices.
