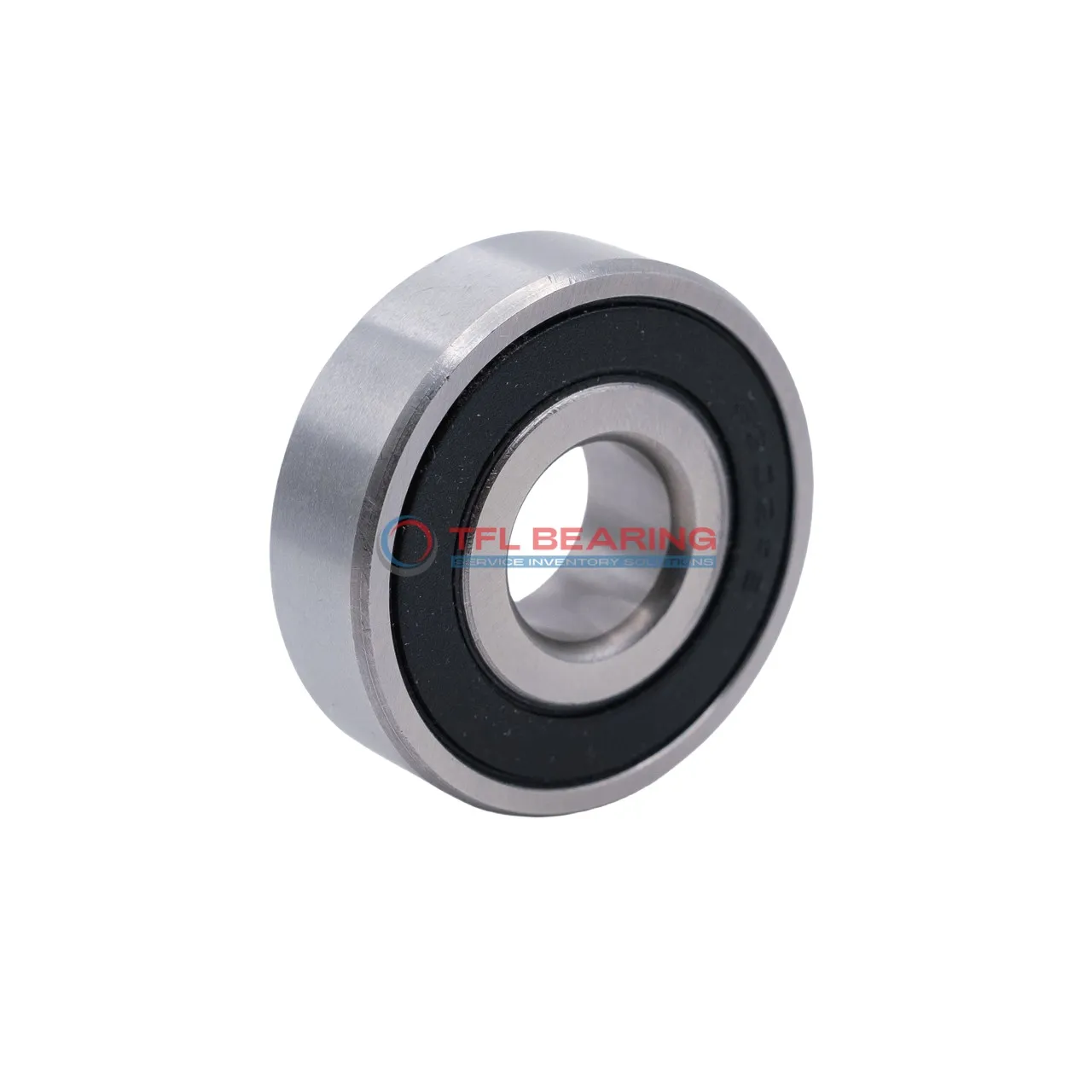

Stainless Steel Deep Groove Ball Bearings W 6208-2RS1/W64F

Stainless Steel Deep Groove Ball Bearings W 6208-2RS1/W64F

The W 6208-2RS1/W64F is a stainless steel deep groove ball bearing with a 40mm bore and 80mm outer diameter, designed for radial loads. Its compact 18mm width makes it suitable for tight spaces while handling loads up to 5643 lbf.

Featuring sealed construction and solid oil lubrication, it runs smoothly at speeds up to 12,000 RPM. The stainless steel rings and balls resist corrosion, ideal for humid or washdown environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It performs well in temperatures from -30°C to 120°C, making it versatile for various applications.

Common uses include food processing equipment, marine applications, or any setting requiring corrosion resistance. Weighing 0.34kg, it balances durability with manageable size. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6208-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 5643 lbf
  • Static Radial Load 3957 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.34 kg
  • Price（$） 49.69
Stainless Steel Deep Groove Ball Bearings W 6208-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

How Does W 6208-2RS1/W64F Bearing Resist Wear?

W 6208-2RS1/W64F Bearing is crafted from stainless steel, offering excellent resistance to wear and corrosion.
Its sealed design protects against contaminants, ensuring smooth operation in harsh environments.

The solid oil lubrication reduces friction, extending the bearing’s service life.
With a dynamic radial load capacity of 5643 lbf, it handles demanding radial loads with ease.

W 6208-2RS1/W64F Bearing operates efficiently at speeds up to 12,000 rpm.
Its durable construction makes it suitable for a wide temperature range, from -30°C to 120°C.

Application

Industrial Uses of W 6208-2RS1/W64F Bearing
W 6208-2RS1/W64F Bearing is commonly used in conveyor systems and pumps, where its sealed design helps keep contaminants out. The stainless steel construction makes it suitable for wet or corrosive environments.

How Does W 6208-2RS1/W64F Bearing Improve Performance?
In food processing equipment, W 6208-2RS1/W64F Bearing’s solid oil lubrication ensures smooth operation without frequent maintenance. Its ABEC 1 tolerance provides reliable performance for consistent production lines.

Built for Heavy-Duty Use: W 6208-2RS1/W64F Bearing
W 6208-2RS1/W64F Bearing handles radial loads well in agricultural machinery, like harvesters and tractors. The chrome steel cage adds durability for long service life in tough conditions.

Automotive vs Aerospace: Applications of W 6208-2RS1/W64F Bearing
In automotive alternators, W 6208-2RS1/W64F Bearing offers quiet operation and resistance to heat. For less demanding aerospace applications, its lightweight design can be an advantage.

Perfect Fit for Automation: W 6208-2RS1/W64F Bearing
W 6208-2RS1/W64F Bearing works well in robotic arms, where precision and low maintenance are key. The sealed design keeps lubrication in and dirt out for reliable performance.
