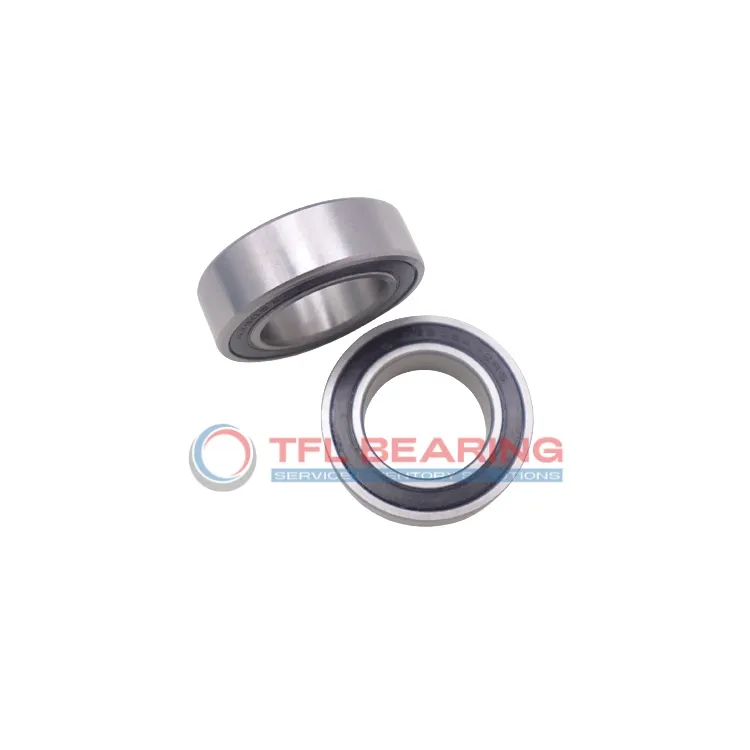

Stainless Steel Deep Groove Ball Bearings W 6203-2RS1/W64F

Stainless Steel Deep Groove Ball Bearings W 6203-2RS1/W64F

The W 6203-2RS1/W64F is a stainless steel deep groove ball bearing measuring 17mm by 40mm by 12mm, designed for radial loads. It handles dynamic loads up to 1812 lbf and spins smoothly at speeds up to 26000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making maintenance hassle-free. The stainless steel construction resists corrosion, ideal for damp or harsh environments.

With a solid oil lubrication, it runs quietly and lasts longer. Suitable for applications like electric motors or food processing equipment where cleanliness and durability matter.

Weighing just 0.061kg, it’s lightweight yet sturdy. Compliant with REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6203-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 1068 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 26000 rpm
  • Weight 0.061 kg
  • Price（$） 18.17
Stainless Steel Deep Groove Ball Bearings W 6203-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

How Does W 6203-2RS1/W64F Bearing Reduce Friction?

W 6203-2RS1/W64F Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.

The sealed design keeps contaminants out, maintaining consistent performance over time.

With a dynamic radial load capacity of 1812 lbf, it handles demanding radial loads efficiently.

Its solid oil lubrication reduces maintenance needs while extending service life.

Application

Industrial Uses of W 6203-2RS1/W64F Bearing
W 6203-2RS1/W64F Bearing is commonly used in food processing equipment, where its stainless steel construction resists corrosion from frequent washdowns. The sealed design keeps contaminants out, ensuring long-lasting performance in demanding environments.

Where Is W 6203-2RS1/W64F Bearing Used?
You’ll often find W 6203-2RS1/W64F Bearing in electric motors and pumps, thanks to its ability to handle moderate radial loads smoothly. Its solid oil lubrication reduces maintenance needs, making it a reliable choice for continuous operation.

Built for Versatility: W 6203-2RS1/W64F Bearing
W 6203-2RS1/W64F Bearing works well in household appliances like washing machines, where quiet operation and durability are key. The ABEC 1 tolerance ensures consistent performance without overcomplicating the design.

Automotive vs Aerospace: Applications of W 6203-2RS1/W64F Bearing
In automotive applications, W 6203-2RS1/W64F Bearing supports auxiliary components like alternators, while its corrosion resistance makes it suitable for marine environments. The metric sizing fits seamlessly into European and Asian vehicle designs.

Perfect Fit for Automation: W 6203-2RS1/W64F Bearing
W 6203-2RS1/W64F Bearing is a go-to for conveyor systems in packaging lines, where its sealed design prevents dust ingress. The stainless steel material also handles moderate loads without compromising on longevity.
