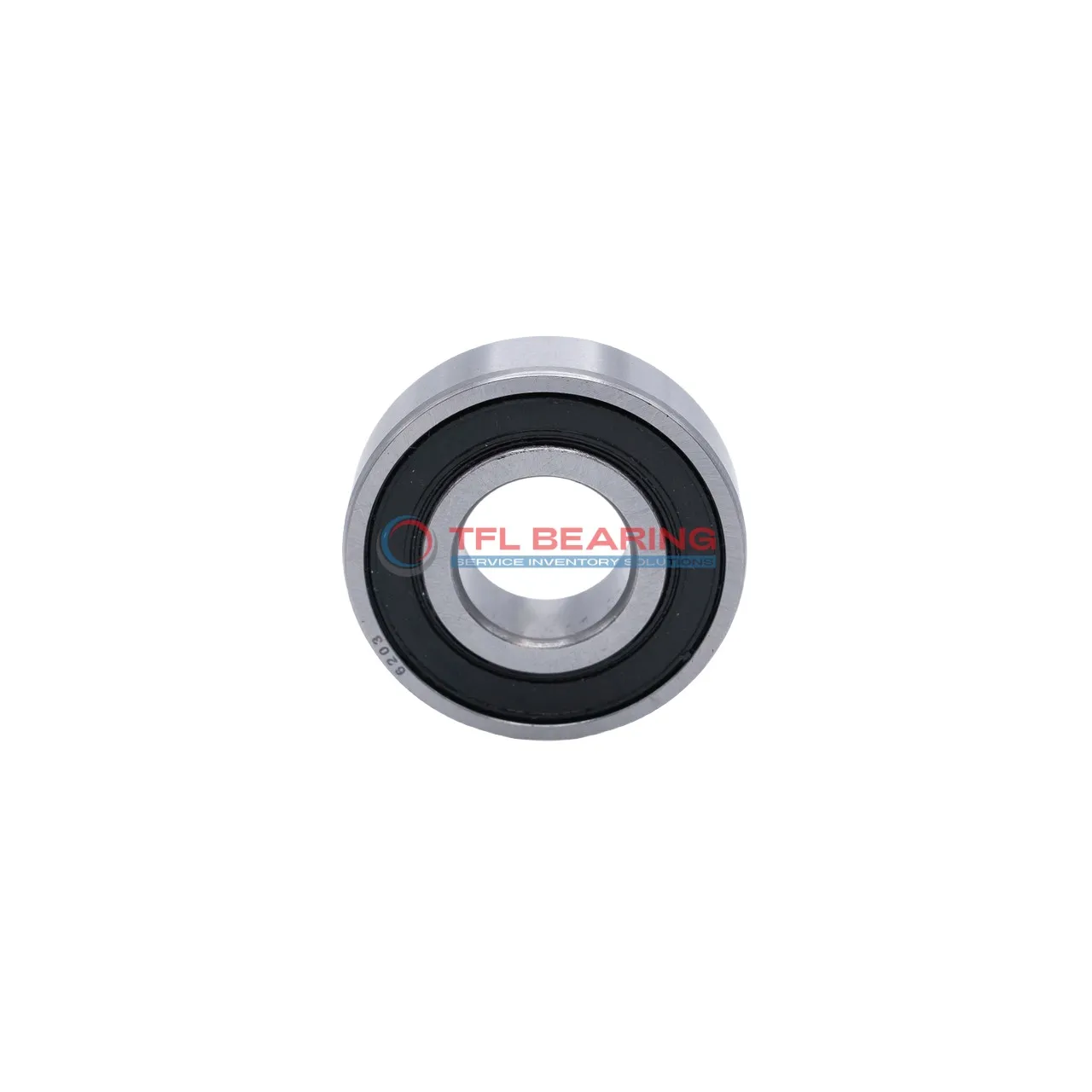

Stainless Steel Deep Groove Ball Bearings W 6200-2RS1/VP311

Stainless Steel Deep Groove Ball Bearings W 6200-2RS1/VP311

The W 6200-2RS1/VP311 is a compact stainless steel deep groove ball bearing, measuring 10mm by 30mm by 9mm. Its sealed design keeps grease in and dirt out, making it low-maintenance and durable.

This bearing handles radial loads up to 980 lbf and spins smoothly at speeds up to 16,000 RPM. It’s built entirely from stainless steel, offering good corrosion resistance for harsh environments.

The P0 tolerance and CN radial clearance ensure reliable performance in most general applications. It works in temperatures from -30°C to 120°C, suitable for a wide range of conditions.

Ideal for small machinery, electric motors, or food processing equipment where hygiene matters. Weighing just 0.03kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6200-2RS1/VP311
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 980 lbf
  • Static Radial Load 522 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 0.03 kg
  • Price（$） 14.8
Stainless Steel Deep Groove Ball Bearings W 6200-2RS1/VP311 dimension drawing
Download DWG Download PDF

Features

How Does W 6200-2RS1/VP311 Bearing Reduce Friction?

W 6200-2RS1/VP311 Bearing features stainless steel construction, reducing friction for smoother radial load performance.
Its sealed design keeps grease in and contaminants out, ensuring consistent lubrication.
The single-row deep groove design enhances load distribution, improving efficiency.
With a maximum speed of 16,000 rpm, it offers reliable operation in various applications.

Application

Industrial Uses of W 6200-2RS1/VP311 Bearing
W 6200-2RS1/VP311 Bearing is commonly used in industrial settings, such as conveyor systems and small electric motors, where its sealed design helps keep out dust and debris.
The stainless steel construction makes it suitable for environments where corrosion resistance is important, like food processing equipment.

How Does W 6200-2RS1/VP311 Bearing Improve Performance?
In automotive applications, W 6200-2RS1/VP311 Bearing provides smooth rotation in components like alternators and water pumps.
Its grease lubrication ensures long-lasting performance even under continuous use, reducing maintenance needs.

Perfect Fit for Automation: W 6200-2RS1/VP311 Bearing
W 6200-2RS1/VP311 Bearing works well in robotic arms and 3D printers, where precision and reliability are key.
The compact size and radial load capacity make it a versatile choice for small automated systems.

Medical vs Industrial: Where W 6200-2RS1/VP311 Bearing Excels
In medical devices like dental tools, W 6200-2RS1/VP311 Bearing offers quiet and smooth operation.
For industrial uses, its durability and resistance to harsh conditions make it ideal for pumps and compressors.

Where to Use W 6200-2RS1/VP311 Bearing
W 6200-2RS1/VP311 Bearing is great for household appliances like washing machines and fans, where low noise and reliability matter.
The sealed design also helps protect against moisture, extending the bearing’s life in humid environments.
