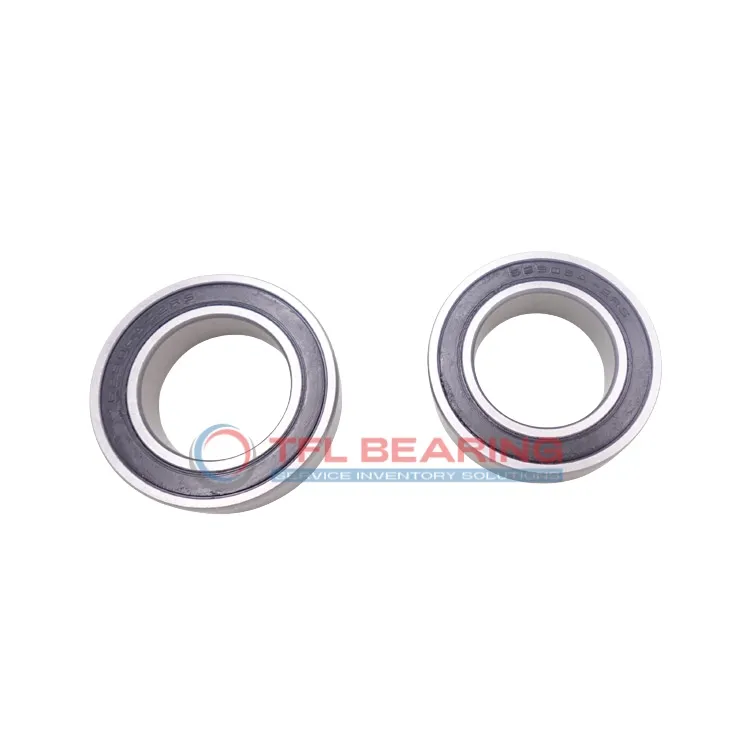

Stainless Steel Deep Groove Ball Bearings W 61804-2RS1

Stainless Steel Deep Groove Ball Bearings W 61804-2RS1

The W 61804-2RS1 is a compact stainless steel deep groove ball bearing, measuring 20mm by 32mm by 7mm. It’s designed for radial loads and comes sealed for protection against dust and moisture.

With a dynamic radial load capacity of 701 lbf, it handles moderate forces while spinning smoothly at up to 13,000 RPM. The all-stainless construction ensures good corrosion resistance.

The sealed design keeps grease in place, reducing maintenance needs. It operates well in temperatures from -30°C to 120°C, making it versatile for various environments.

This bearing is interchangeable with SKF models, ideal for small machinery or appliances where reliability and corrosion resistance are important. Its lightweight 17g design doesn’t compromise on durability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61804-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 701 lbf
  • Static Radial Load 468 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.017 kg
  • Price（$） 13.16
Stainless Steel Deep Groove Ball Bearings W 61804-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 61804-2RS1 Bearing Reduce Friction?

W 61804-2RS1 Bearing features a sealed design with stainless steel components, ensuring smooth operation with minimal friction.
Its single-row construction and grease lubrication help maintain consistent performance even at high speeds of up to 13,000 rpm.
The stainless steel cage and balls reduce wear, extending the bearing’s service life.
With a dynamic radial load capacity of 701 lbf, it is suitable for various radial load applications.

Application

Common Applications of W 61804-2RS1 Bearing
W 61804-2RS1 Bearing works well in small electric motors, thanks to its compact 20 mm×32 mm×7 mm size and sealed design. The stainless steel construction ensures it handles moisture and light corrosion without issues.

In household appliances like washing machines, W 61804-2RS1 Bearing provides quiet and smooth rotation for drum assemblies. Its grease lubrication helps maintain performance over long periods with minimal maintenance.

For food processing equipment, W 61804-2RS1 Bearing’s stainless steel materials meet hygiene standards while handling moderate radial loads. The sealed design also prevents contamination from dust or liquids.

Where Is W 61804-2RS1 Bearing Used?
You’ll often find W 61804-2RS1 Bearing in office printers, where its low-profile design fits into tight spaces. The P0 tolerance ensures reliable alignment for consistent paper feed mechanisms.

In medical devices like dental handpieces, W 61804-2RS1 Bearing offers precise rotation at high speeds. The stainless steel balls and cage resist wear even with frequent sterilisation cycles.
