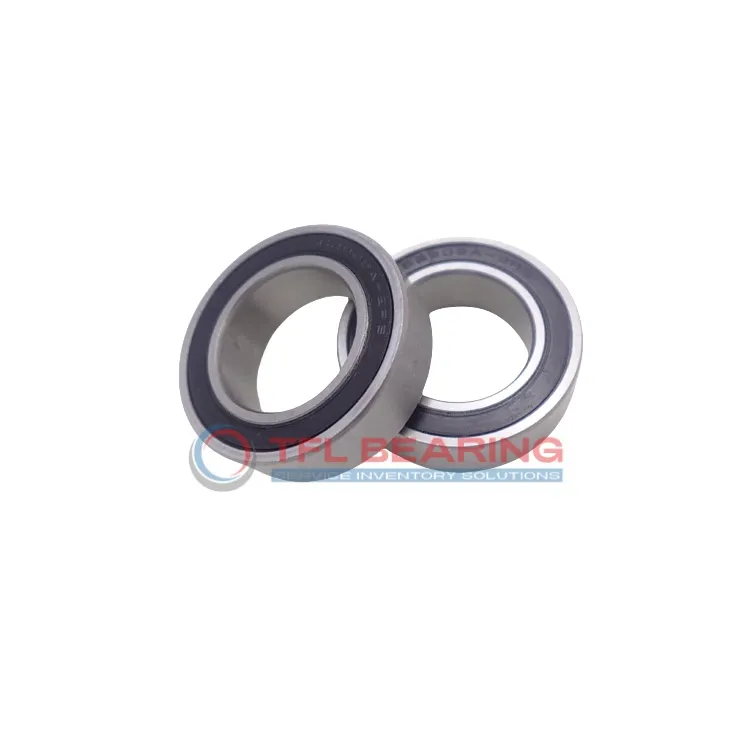

Stainless Steel Deep Groove Ball Bearings W 61804-2RS1/VT378

Stainless Steel Deep Groove Ball Bearings W 61804-2RS1/VT378

The W 61804-2RS1/VT378 is a compact stainless steel deep groove ball bearing, measuring 20mm by 32mm by 7mm. It’s designed for radial loads and handles up to 701 lbf, with a maximum speed of 13,000 RPM.

Its sealed construction keeps out dirt and moisture, making it low-maintenance. The stainless steel rings and balls offer good corrosion resistance, while the chrome steel cage adds durability.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, easing replacements.

Lightweight at just 0.017kg, it’s ideal for small machinery or applications where space is tight. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61804-2RS1/VT378
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 701 lbf
  • Static Radial Load 468 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.017 kg
Stainless Steel Deep Groove Ball Bearings W 61804-2RS1/VT378 dimension drawing
Download DWG Download PDF

Features

How Does W 61804-2RS1/VT378 Bearing Reduce Friction?

W 61804-2RS1/VT378 Bearing is crafted with stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining consistent performance over time.

The ABEC 1 tolerance class ensures reliable precision, suitable for various radial load applications.
With a maximum speed of 13,000 rpm, it delivers efficient performance in demanding conditions.

W 61804-2RS1/VT378 Bearing’s chrome steel cage enhances durability, reducing wear during high-speed operation.
Its static radial load capacity of 468 lbf makes it a dependable choice for many industrial uses.

Application

Where Is W 61804-2RS1/VT378 Bearing Used?
W 61804-2RS1/VT378 Bearing is commonly found in food processing equipment, where its stainless steel construction resists corrosion from frequent washdowns. The sealed design also keeps contaminants out, ensuring smooth operation in humid environments.

In small electric motors, W 61804-2RS1/VT378 Bearing provides reliable radial support, thanks to its compact 20 mm bore and low-friction design. It’s a popular choice for appliances like blenders and power tools.

For medical devices, W 61804-2RS1/VT378 Bearing’s precision and cleanliness make it suitable for lab instruments and diagnostic machines. The ABEC 1 tolerance ensures consistent performance without unnecessary cost.

Automation systems often use W 61804-2RS1/VT378 Bearing in lightweight robotic arms, where its 7 mm width saves space without sacrificing durability. The chrome steel cage adds extra strength for repetitive movements.
