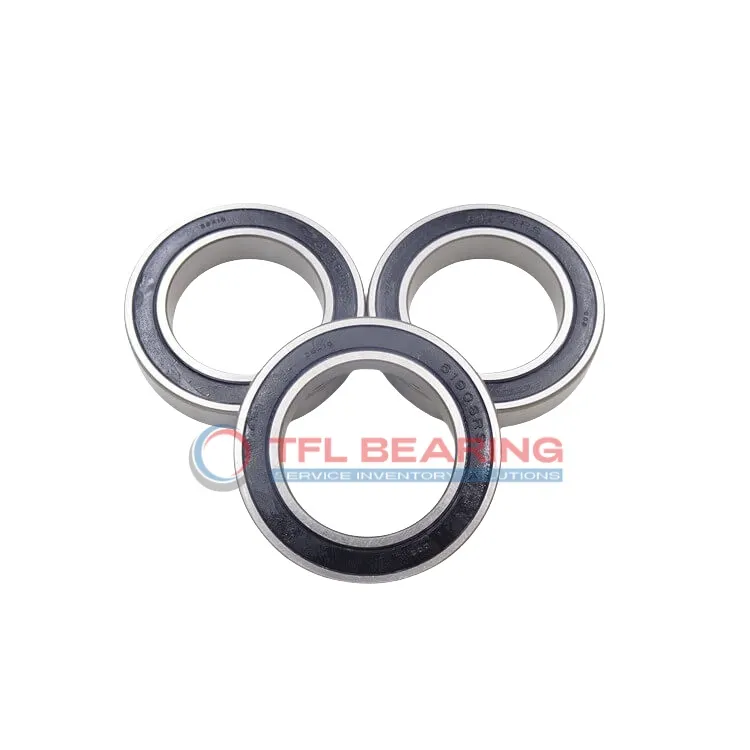

Stainless Steel Deep Groove Ball Bearings W 61705-2RS1

Stainless Steel Deep Groove Ball Bearings W 61705-2RS1

The W 61705-2RS1 is a compact stainless steel deep groove ball bearing, measuring 25mm by 32mm by 4mm. It handles radial loads up to 139 lbf and spins smoothly at speeds up to 12,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures good corrosion resistance and durability.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings for easy replacement.

Ideal for small machinery or instruments where space is limited but reliable performance is needed. Compliant with RoHS and REACH standards, it weighs just 6.9 grams.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61705-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 139 lbf
  • Static Radial Load 105 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.0069 kg
Stainless Steel Deep Groove Ball Bearings W 61705-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 61705-2RS1 Bearing Reduce Friction?

W 61705-2RS1 Bearing features a sealed design with stainless steel components, ensuring smooth operation and reduced friction.
The single-row construction and grease lubrication enhance its efficiency, making it suitable for radial load applications.

With a maximum speed of 12,000 rpm, W 61705-2RS1 Bearing maintains consistent performance in various conditions.
Its compact size (25 mm×32 mm×4 mm) allows for easy integration into space-constrained designs.

The stainless steel material resists corrosion, extending the bearing’s lifespan even in challenging environments.
W 61705-2RS1 Bearing’s P0 tolerance class ensures precision and reliability in demanding applications.

Application

Common Applications of W 61705-2RS1 Bearing
W 61705-2RS1 Bearing is widely used in industrial equipment like small conveyor systems and compact machinery, where its sealed design protects against dust and debris. The stainless steel construction ensures it performs well in humid or corrosive environments.

In automotive applications, W 61705-2RS1 Bearing fits well in electric motors and small gear mechanisms, offering reliable radial load support. Its compact size makes it ideal for tight spaces without compromising performance.

For medical devices, W 61705-2RS1 Bearing is often found in precision instruments like lab equipment, where smooth operation is essential. The grease lubrication helps maintain quiet and efficient performance over time.

In consumer electronics, W 61705-2RS1 Bearing works effectively in small fans and printers, providing durability in everyday use. The sealed design also reduces maintenance needs, making it a hassle-free choice.
