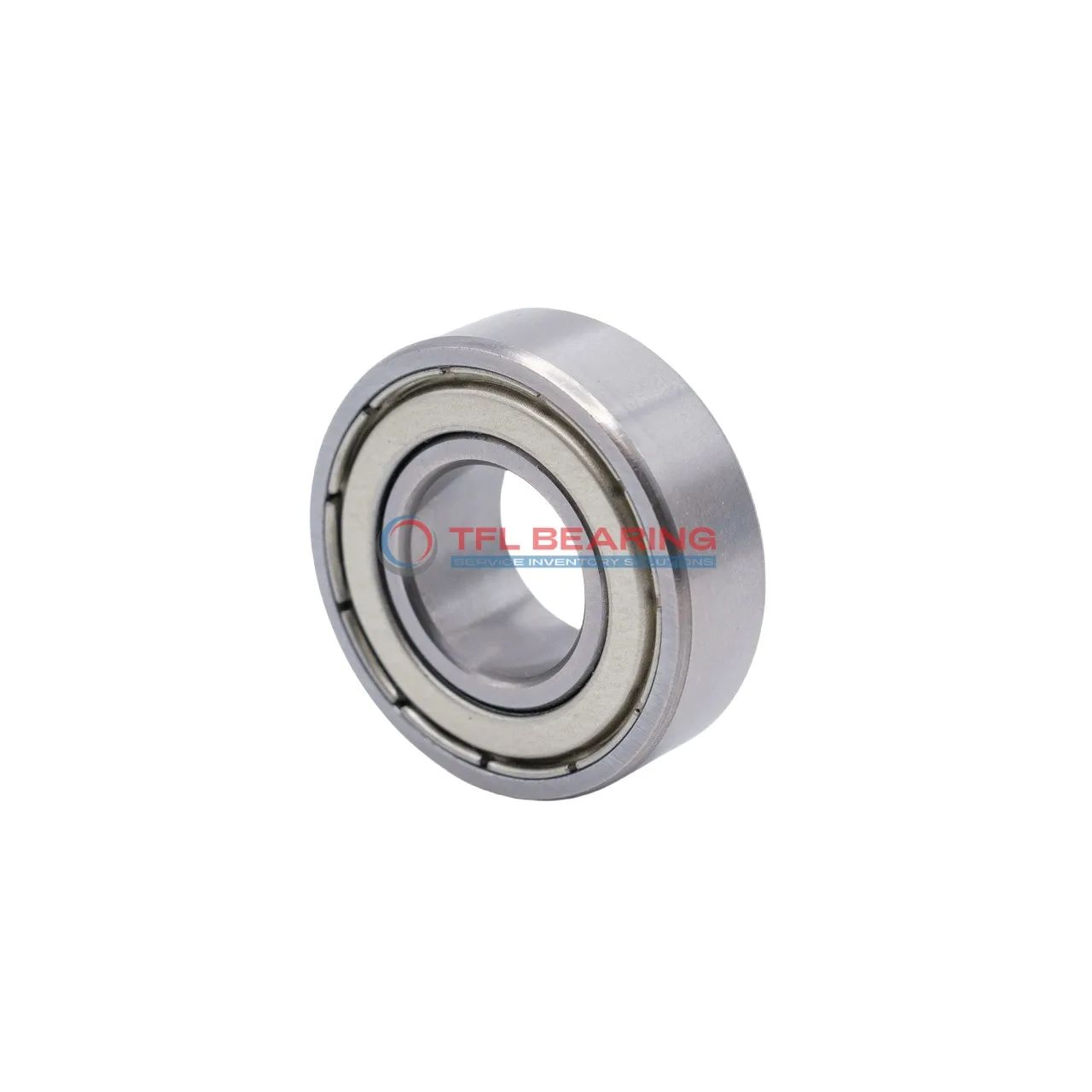

Stainless Steel Deep Groove Ball Bearings W 6005-2Z

Stainless Steel Deep Groove Ball Bearings W 6005-2Z

The W 6005-2Z is a stainless steel deep groove ball bearing with a 25mm bore and 47mm outer diameter, measuring 12mm wide. Its shielded design keeps dirt out while retaining grease for smooth operation.

Made entirely from stainless steel, it resists corrosion and handles radial loads up to 1958 lbf. It spins efficiently at speeds up to 16000 RPM, suitable for various applications.

The bearing operates in temperatures from -30°C to 120°C and comes pre-lubricated with grease for immediate use. Its compact size and lightweight (0.077kg) make it easy to install.

Ideal for food processing equipment or marine environments where moisture resistance is key. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for convenient replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6005-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1958 lbf
  • Static Radial Load 1315 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 0.077 kg
  • Price（$） 15.32
Stainless Steel Deep Groove Ball Bearings W 6005-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 6005-2Z Bearing for Precision Tasks?

W 6005-2Z Bearing features stainless steel rings and balls, ensuring excellent resistance to corrosion and wear.
Its shielded design protects against contaminants, making it ideal for precision applications.
With a dynamic radial load capacity of 1958 lbf, it handles demanding radial loads with ease.
The bearing operates smoothly at speeds up to 16,000 rpm, balancing performance and durability.

Application

Industrial Uses of W 6005-2Z Bearing
W 6005-2Z Bearing is commonly used in conveyor systems and packaging machinery, where its shielded design helps keep contaminants out. The stainless steel construction ensures it performs well in humid or corrosive environments.

In automotive applications, W 6005-2Z Bearing fits well in electric motors and pumps, offering reliable radial load support. Its metric sizing makes it easy to integrate into various vehicle designs.

For home appliances like washing machines, W 6005-2Z Bearing provides quiet and smooth operation. The grease lubrication ensures long service life with minimal maintenance.

Automation & Robotics: Where W 6005-2Z Bearing Excels
W 6005-2Z Bearing works efficiently in robotic arms and 3D printers, thanks to its precise radial load handling. The stainless steel materials make it suitable for cleanroom environments.

In medical devices such as dental drills, W 6005-2Z Bearing offers consistent performance with low friction. Its shielded design helps maintain hygiene by preventing debris buildup.
