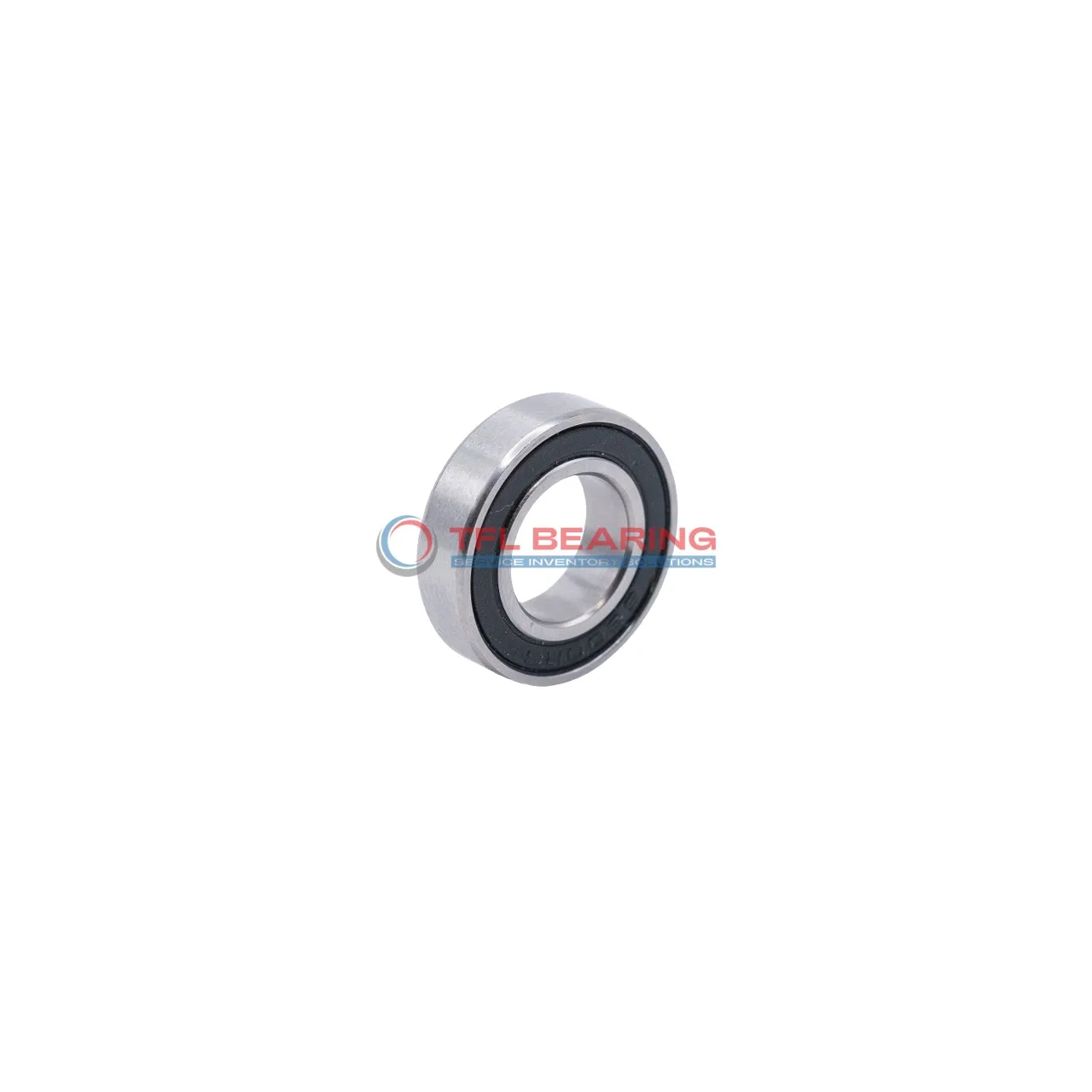

Stainless Steel Deep Groove Ball Bearings W 6001-2RS1

Stainless Steel Deep Groove Ball Bearings W 6001-2RS1

The W 6001-2RS1 is a compact stainless steel deep groove ball bearing, measuring 12mm by 28mm by 8mm. It handles radial loads up to 994 lbf and spins smoothly at speeds up to 16,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance and durable. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It works well in applications like small motors, pumps, or food processing equipment where cleanliness matters.

Weighing just 0.02kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6001-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 994 lbf
  • Static Radial Load 531 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 0.02 kg
  • Price（$） 10.11
Stainless Steel Deep Groove Ball Bearings W 6001-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6001-2RS1 Bearing for Precision Tasks?

W 6001-2RS1 Bearing features a stainless steel construction, making it resistant to corrosion and ideal for precision applications.
Its sealed design keeps out contaminants, ensuring smooth operation in various environments.

The dynamic radial load capacity of 994 lbf allows it to handle demanding radial loads with ease.
With a maximum speed of 16,000 rpm, it offers reliable performance for high-speed applications.

W 6001-2RS1 Bearing’s compact size (12 mm×28 mm×8 mm) makes it suitable for space-constrained installations.
The grease lubrication ensures long-lasting performance with minimal maintenance required.

Application

Common Applications of W 6001-2RS1 Bearing
W 6001-2RS1 Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its sealed design keeps out dust and debris. The stainless steel construction ensures it performs well in humid or corrosive environments.

In automotive applications, W 6001-2RS1 Bearing fits well in components like window regulators and wiper motors, offering smooth rotation and long service life. Its compact size makes it ideal for tight spaces in modern vehicle designs.

For home appliances, W 6001-2RS1 Bearing is a reliable choice for items like washing machine pumps and kitchen mixer gears. The grease lubrication helps maintain quiet operation, even with frequent use.

In medical devices, W 6001-2RS1 Bearing’s corrosion-resistant materials make it suitable for handheld surgical tools and diagnostic equipment. The sealed design also prevents contamination in sterile environments.

Automation systems benefit from W 6001-2RS1 Bearing’s precision in robotic arms and small CNC machines. Its ability to handle moderate radial loads ensures consistent performance in repetitive tasks.
