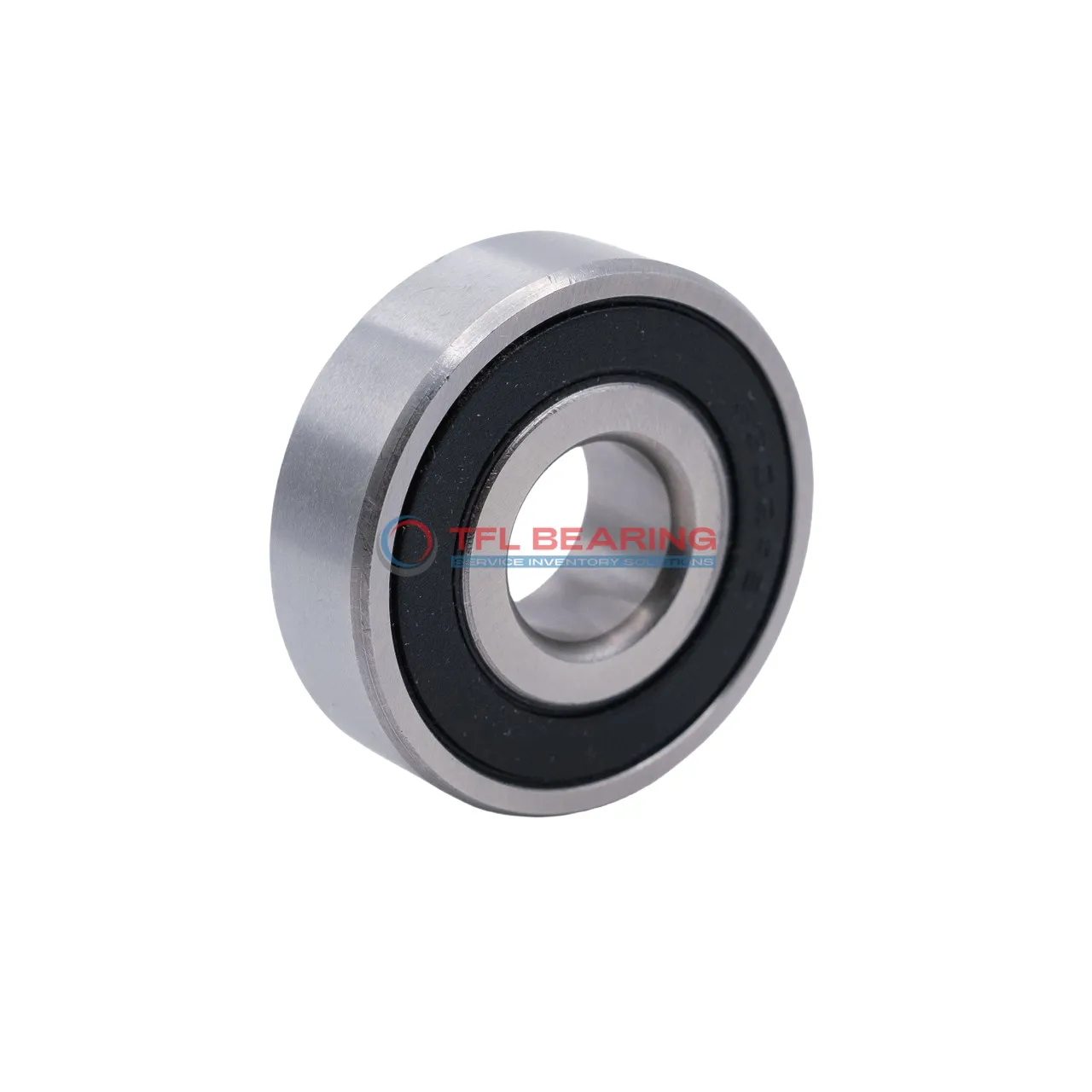

Stainless Steel Deep Groove Ball Bearings W 6000-2RS1

Stainless Steel Deep Groove Ball Bearings W 6000-2RS1

The W 6000-2RS1 is a compact stainless steel deep groove ball bearing, measuring 10mm in bore and 26mm in outer diameter. Its sealed design keeps grease in and dirt out, making it low-maintenance.

This bearing handles radial loads up to 892 lbf and spins smoothly at speeds up to 19,000 RPM. The all-stainless construction resists corrosion, ideal for damp or washdown environments.

With a temperature range of -30°C to 120°C, it works well in varied conditions. The grease lubrication ensures quiet operation over long periods.

Weighing just 18 grams, it’s a lightweight choice for small machinery, food processing equipment, or medical devices. Compliant with RoHS and REACH standards for safety.

Interchangeable with SKF bearings, it’s a practical option for replacements or upgrades. The sealed design also simplifies installation in hard-to-reach spots.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6000-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 892 lbf
  • Static Radial Load 441 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 19000 rpm
  • Weight 0.018 kg
  • Price（$） 6.22
Stainless Steel Deep Groove Ball Bearings W 6000-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 6000-2RS1 Bearing Reduce Friction?

W 6000-2RS1 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining consistent performance over time.
The grease lubrication further reduces friction, enhancing efficiency and extending bearing life.
With a maximum speed of 19,000 rpm, it delivers reliable performance in various applications.

Application

Common Applications of W 6000-2RS1 Bearing
W 6000-2RS1 Bearing is widely used in industrial equipment like small pumps and electric motors, where its sealed design keeps contaminants out. The stainless steel construction ensures it performs well in wet or corrosive environments.

In the automotive sector, W 6000-2RS1 Bearing fits well in components like alternators and cooling fans, offering reliable radial load support. Its compact size makes it ideal for space-constrained applications.

For home appliances, W 6000-2RS1 Bearing is a go-to choice for items like washing machines and food processors. The grease lubrication ensures smooth, quiet operation over long periods.

Automation systems benefit from W 6000-2RS1 Bearing’s precision in devices like conveyor belts and small robotic arms. The P0 tolerance class guarantees consistent performance in repetitive tasks.

Medical devices like dental tools often use W 6000-2RS1 Bearing for its hygienic stainless steel build. The sealed design also prevents lubricant leakage, crucial for sterile environments.
