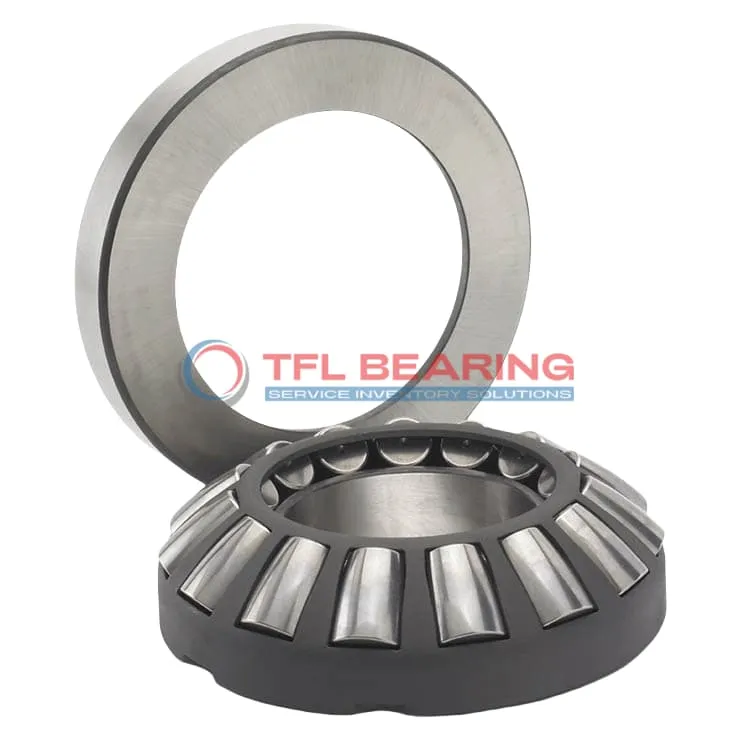

Spherical Roller Thrust Bearings 29317 E

Spherical Roller Thrust Bearings 29317 E

The 29317 E is a spherical roller thrust bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy steel for long-lasting use. It manages combined loads up to 85427 lbf and operates smoothly at speeds up to 4000 RPM.

Its single-row design with steel rollers and cage ensures reliable performance, even under heavy loads. The bearing requires lubrication and works in temperatures from -30°C to 100°C.

With a compact width of 39mm, it fits well in tight spaces while handling significant thrust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial applications.

Ideal for heavy machinery like gearboxes or presses, where robust load handling is essential. Weighing 2.75kg, it balances strength and practicality for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29317 E
  • Brand TFL
  • Interchangeable SKF
  • Size 85 mm x 150 mm x 39 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02 to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.025 to 0
  • Width 39 mm
  • Outside Diameter(d1) 134 mm
  • Shoulder Diameter Outer Ring (D1) 110 mm
  • Height Shaft Washer Cage(B1) 33.8 mm
  • Height Housing Washer(C) 20 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s) 50 mm
  • Chamfer Dimension Shaft Washer(r1,2) 1.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Spherical
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Roller Material Steel
  • Cage Material Steel
  • Dynamic Thrust Load 85427 lbf
  • Static Thrust Load 238297 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30 to 100 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.75 kg
  • Price（$） 297

Features

Performance Features of 29317 E Bearing

29317 E Bearing is built for combined load applications, offering a dynamic thrust load capacity of 85427 lbf.
Its spherical roller design ensures smooth operation even under heavy loads and misalignment conditions.

The steel rollers and cage provide durability, while the single-row construction enhances stability.
With a maximum speed of 4000 rpm, it delivers reliable performance in various industrial settings.

29317 E Bearing operates within a temperature range of -30 to 100 °C, suitable for diverse environments.
Its robust design and high static thrust load of 238297 lbf make it ideal for demanding applications.

Application

Industrial Uses of 29317 E Bearing
29317 E Bearing is commonly used in heavy machinery like mining equipment and construction cranes, where its spherical roller design handles combined loads with ease. The steel construction ensures durability even in demanding environments.

In automotive applications, 29317 E Bearing supports components such as heavy-duty transmissions and differential systems. Its high dynamic thrust load capacity makes it reliable for vehicles operating under strenuous conditions.

For industrial automation, 29317 E Bearing fits well in robotic arms and conveyor systems, providing smooth movement under varying loads. The metric sizing ensures compatibility with a wide range of machinery.

Medical imaging devices benefit from 29317 E Bearing’s precision and reliability, ensuring consistent performance in critical applications. The steel cage enhances longevity, reducing maintenance needs.

In wind turbines, 29317 E Bearing handles the axial and radial loads generated by rotor movements. Its robust design and high load capacity make it a dependable choice for renewable energy systems.
