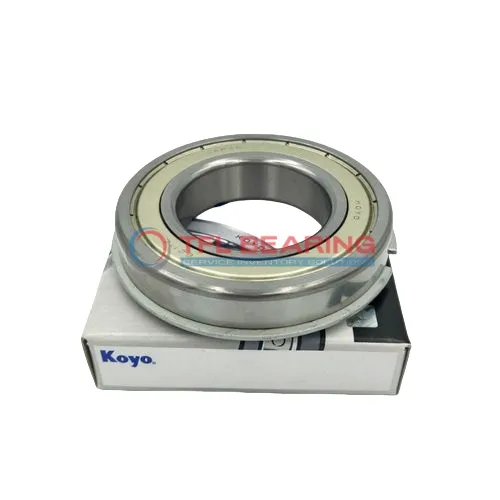

Snap Ring Groove Ball Bearings 6215-ZNR/C3

Snap Ring Groove Ball Bearings 6215-ZNR/C3

The 6215-ZNR/C3 is a shielded snap ring groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 15152 lbf and operates smoothly at speeds up to 4800 RPM.

Its snap ring design ensures secure fitting, while the C3 radial clearance allows for thermal expansion in demanding conditions. The shielded construction keeps contaminants out, extending bearing life.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery, pumps, or gearboxes where radial loads and secure mounting are key.

Weighing 1170g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215-ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 139.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 15152 lbf
  • Static Radial Load 10858 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 1170 g
  • Price（$） 38
Snap Ring Groove Ball Bearings 6215-ZNR/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6215-ZNR/C3 Bearing

6215-ZNR/C3 Bearing is built with chrome steel rings and balls, offering robust resistance to radial loads.
Its dynamic radial load capacity reaches 15152 lbf, ensuring reliable performance in various applications.

The shielded design of 6215-ZNR/C3 Bearing protects against contaminants, enhancing durability.
With a snap ring groove on the outer ring, it provides secure mounting and easy installation.

6215-ZNR/C3 Bearing operates smoothly within a temperature range of -30° to 120°C.
Its C3 radial clearance allows for thermal expansion, making it suitable for high-speed applications.

The chrome steel cage ensures proper ball alignment, reducing wear and extending service life.
With a maximum speed of 4,800 rpm, it balances performance and longevity.

Application

Industrial Uses of 6215-ZNR/C3 Bearing
The 6215-ZNR/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. Its snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

What Makes 6215-ZNR/C3 Bearing a Preferred Choice?
With its chrome steel construction, the 6215-ZNR/C3 Bearing offers durability in automotive applications such as wheel hubs and transmissions. The C3 radial clearance allows for better thermal expansion handling during operation.

Perfect Fit for Automation: 6215-ZNR/C3 Bearing
In robotic arms and conveyor systems, the 6215-ZNR/C3 Bearing provides smooth rotation thanks to its balanced load distribution. The snap ring groove simplifies installation, saving time in assembly lines.

Light-Duty vs Heavy-Duty: Best Uses for 6215-ZNR/C3 Bearing
For light-duty applications like office printers, the 6215-ZNR/C3 Bearing ensures quiet operation. In heavy-duty scenarios such as agricultural machinery, its robust design handles radial loads effectively.
