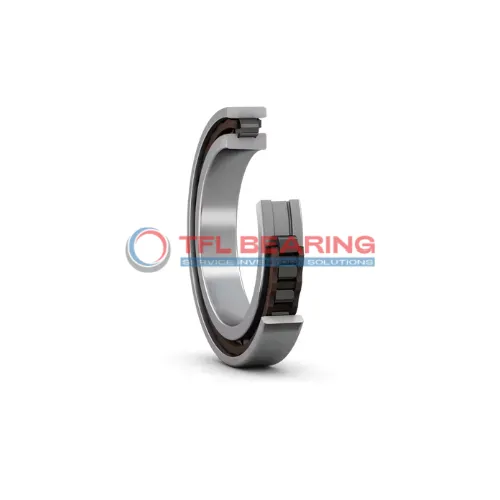

Single Row Super-Precision Cylindrical Roller Bearings N 1016 KTNHA/HC5SP

Single Row Super-Precision Cylindrical Roller Bearings N 1016 KTNHA/HC5SP

The N 1016 KTNHA/HC5SP is a single-row cylindrical roller bearing with an 80mm tapered bore and 125mm outer diameter, crafted from high-quality chrome steel. It handles combined loads up to 15098 lbf and reaches speeds of 18000 RPM.

Its PEEK cage and silicon nitride rollers reduce friction, ensuring smooth operation even at high speeds. The open design allows for easy lubrication with grease or oil.

With a temperature range of -30°C to 110°C, this bearing is versatile for various environments. It’s interchangeable with SKF models, making replacements straightforward.

Ideal for precision applications like machine tools or high-speed spindles, where reliability and performance are key. Weighing 0.79kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 1016 KTNHA/HC5SP
  • Size 80 mm x 125 mm x 22 mm
  • Brand TFL
  • Interchangeable Brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 80 mm
  • Bore Dia Tolerance 0 to +0.015mm
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 22 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 97 mm
  • Raceway Diameter Outer Ring 113 mm
  • Chamfer Dimension Outer Ring(r1,2)(min.) 1.1 mm
  • Chamfer Dimension Inner Ring(r3,4)(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 3 mm
  • Ring Material Chrome Steel
  • Roller Material Si3N4
  • Cage Material PEEK cage, outer ring centred
  • Dynamic Radial Load 15098 lbf
  • Static Radial Load 20250 lbf
  • Max Speed 18000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.79 kg

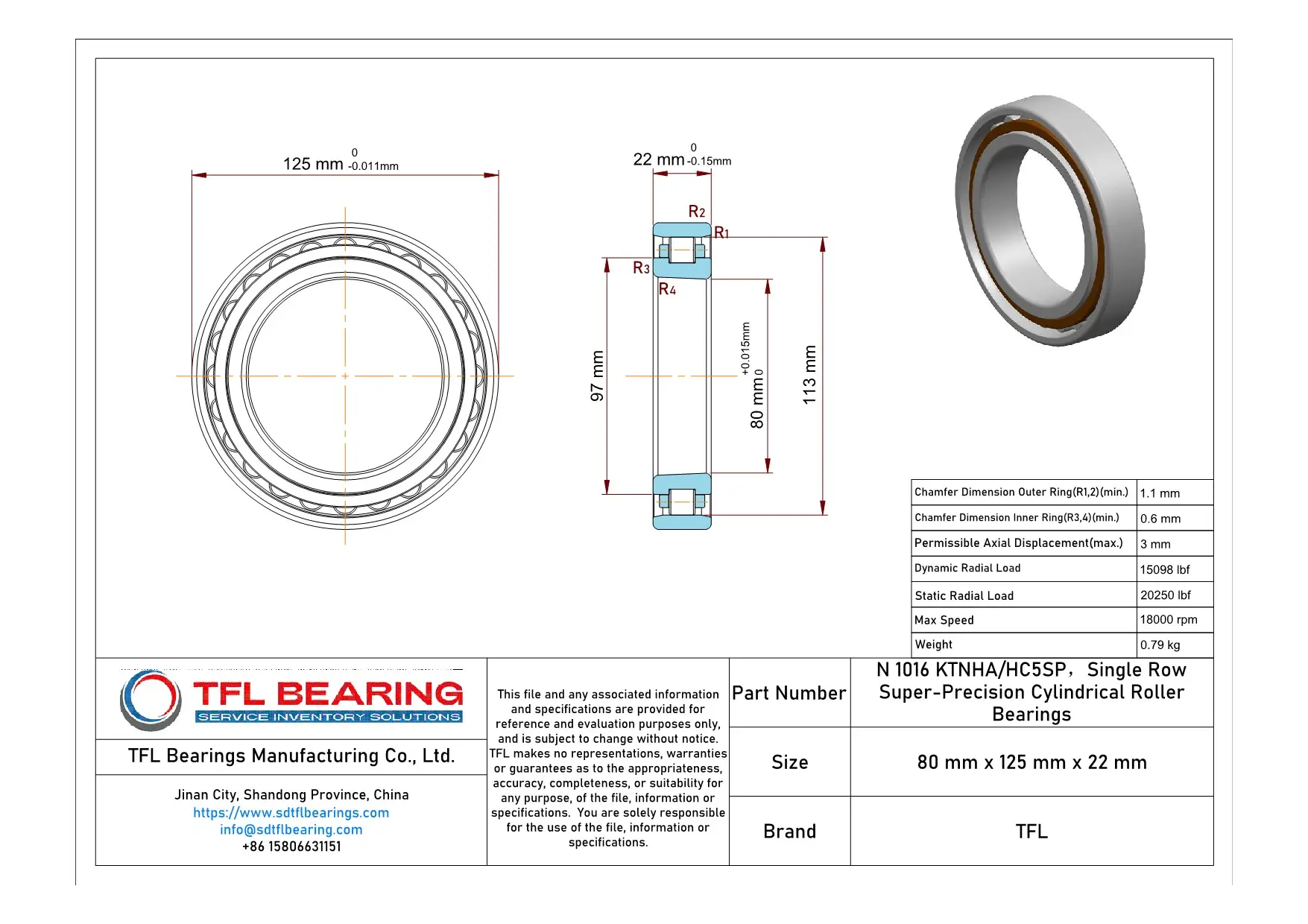

Single Row Super-Precision Cylindrical Roller Bearings N 1016 KTNHA/HC5SP dimension drawing
Download DWG Download PDF

Features

Performance Features of N 1016 KTNHA/HC5SP Bearing

N 1016 KTNHA/HC5SP Bearing is built with chrome steel rings and Si3N4 rollers, offering high precision and durability.
Its dynamic radial load capacity of 15098 lbf ensures reliable performance under combined loads.

The PEEK cage, centred on the outer ring, maintains roller alignment for smooth operation.
With a maximum speed of 18,000 rpm, it excels in high-speed applications.

N 1016 KTNHA/HC5SP Bearing operates efficiently in temperatures from -30° to 110°C.
Its tapered bore design simplifies installation and enhances stability.

The open seal type allows for flexible lubrication options, either grease or oil.
This design reduces maintenance needs while ensuring long service life.

Application

Industrial Uses of N 1016 KTNHA/HC5SP Bearing
N 1016 KTNHA/HC5SP Bearing is commonly used in high-speed machine tools, where its cylindrical roller design handles combined loads efficiently. The PEEK cage and Si3N4 rollers ensure smooth operation even at 18,000 rpm.

In automotive applications, N 1016 KTNHA/HC5SP Bearing fits well in gearboxes and drivetrains, thanks to its tapered bore for secure mounting. Its chrome steel construction offers durability under heavy radial and axial loads.

For automation systems, N 1016 KTNHA/HC5SP Bearing supports robotic arms and precision conveyors, where low friction and high speed are key. The open design allows easy lubrication, extending service life in continuous operations.

Medical imaging devices benefit from N 1016 KTNHA/HC5SP Bearing’s precision, ensuring quiet and vibration-free performance. The wide temperature range makes it suitable for various clinical environments.

In consumer electronics, N 1016 KTNHA/HC5SP Bearing can be found in high-end printers and scanners, where its compact size and reliability are valued. The metric dimensions ensure compatibility with global equipment standards.
