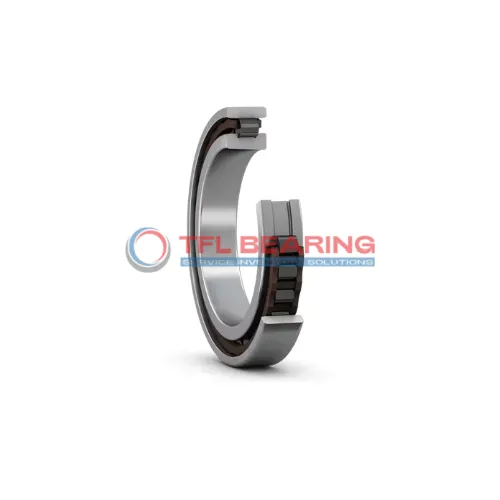

Single Row Super-Precision Cylindrical Roller Bearings N 1013 KTNHA/SP

Single Row Super-Precision Cylindrical Roller Bearings N 1013 KTNHA/SP

The N 1013 KTNHA/SP is a single-row cylindrical roller bearing with a 65mm tapered bore and 100mm outer diameter, crafted from high-quality chrome steel. It handles combined loads up to 9900 lbf and reaches speeds of 20,000 RPM, making it suitable for demanding applications.

Its PEEK cage, centred on the outer ring, ensures smooth operation and reduces friction, while the open design allows easy lubrication with grease or oil. The bearing can withstand temperatures from -30°C to 110°C, offering reliable performance in various conditions.

With a permissible axial displacement of 2.5mm, it accommodates slight misalignments, enhancing durability. The tapered bore design simplifies installation and ensures a secure fit.

Ideal for precision machinery like spindles or gearboxes, this bearing is interchangeable with SKF models. Weighing 0.44kg, it balances strength and lightweight design, complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 1013 KTNHA/SP
  • Size 65 mm x 100 mm x 18 mm
  • Brand TFL
  • Interchangeable Brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 65 mm
  • Bore Dia Tolerance 0 to +0.015mm
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.010mm to 0
  • Width 18 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 78.2 mm
  • Raceway Diameter Outer Ring 91 mm
  • Chamfer Dimension Outer Ring(r1,2)(min.) 1.1 mm
  • Chamfer Dimension Inner Ring(r3,4)(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 2.5 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PEEK cage, outer ring centred
  • Dynamic Radial Load 9900 lbf
  • Static Radial Load 12600 lbf
  • Max Speed 20000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.44 kg

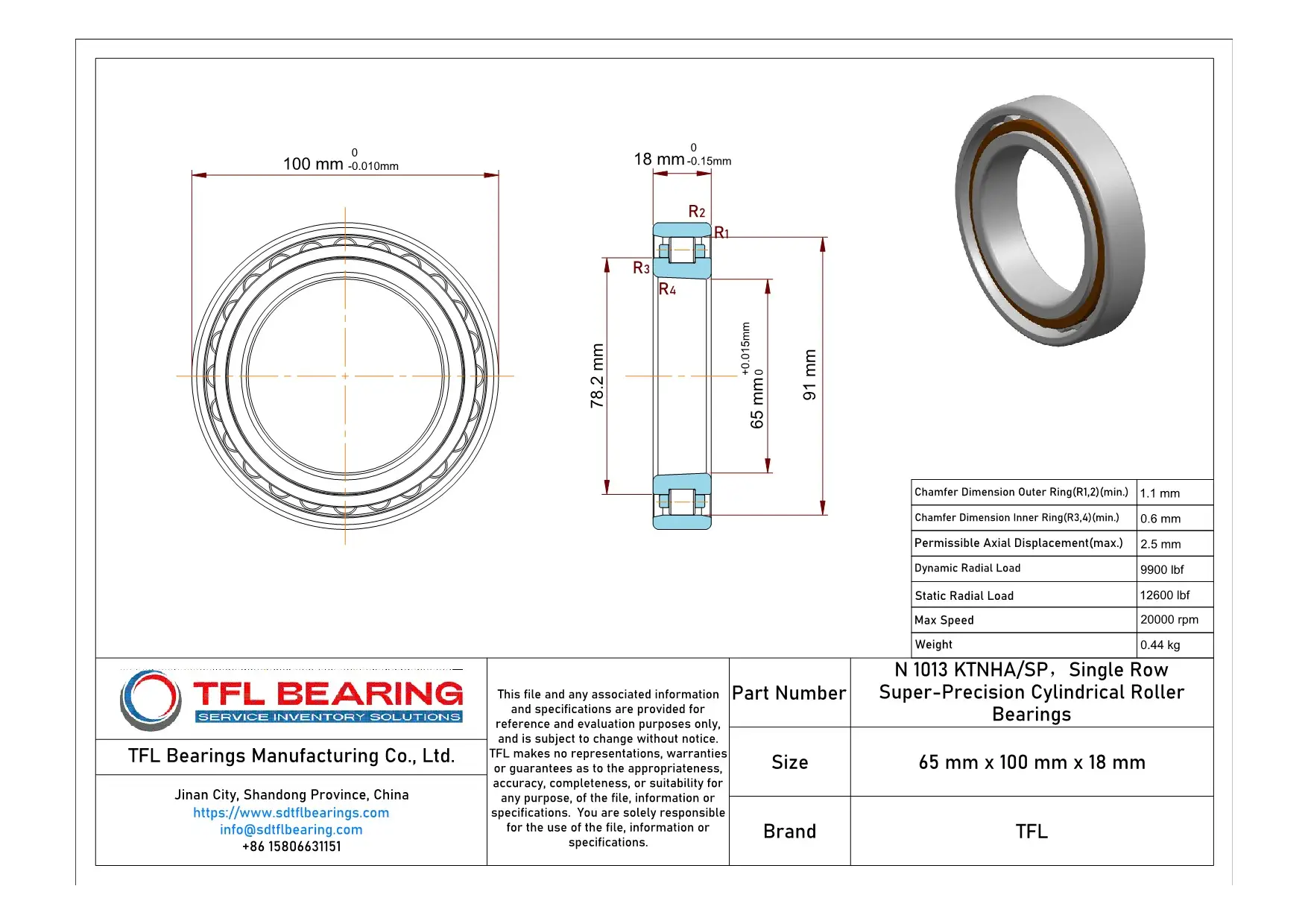

Single Row Super-Precision Cylindrical Roller Bearings N 1013 KTNHA/SP dimension drawing
Download DWG Download PDF

Features

Performance Features of N 1013 KTNHA/SP Bearing

N 1013 KTNHA/SP Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 9900 lbf, making it suitable for demanding applications.

The PEEK cage ensures smooth operation, even at speeds up to 20,000 rpm.
This design reduces friction and extends the bearing’s service life.

N 1013 KTNHA/SP Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, simplifying maintenance.

With precise tolerances and a tapered bore, N 1013 KTNHA/SP Bearing ensures reliable performance.
The chamfered edges on both rings facilitate easier installation and alignment.

Application

Industrial Uses of N 1013 KTNHA/SP Bearing
N 1013 KTNHA/SP Bearing is commonly used in high-speed machine tools, where its cylindrical roller design ensures precise radial load handling. The PEEK cage and chrome steel construction make it suitable for demanding industrial environments.

In automotive applications, N 1013 KTNHA/SP Bearing supports gearboxes and drivetrain components, offering reliable performance under combined loads. Its metric sizing ensures compatibility with a variety of vehicle designs.

For automation systems, N 1013 KTNHA/SP Bearing excels in robotic arms and precision machinery, thanks to its high-speed capabilities. The open seal type allows for easy lubrication, extending its service life.

Medical equipment like imaging devices benefit from N 1013 KTNHA/SP Bearing’s smooth operation and low maintenance requirements. The tapered bore design ensures secure fitting in critical applications.

In consumer electronics, N 1013 KTNHA/SP Bearing can be found in high-performance printers and fans, where its durability and speed are key advantages. The grease or oil lubrication options provide flexibility for different usage scenarios.
