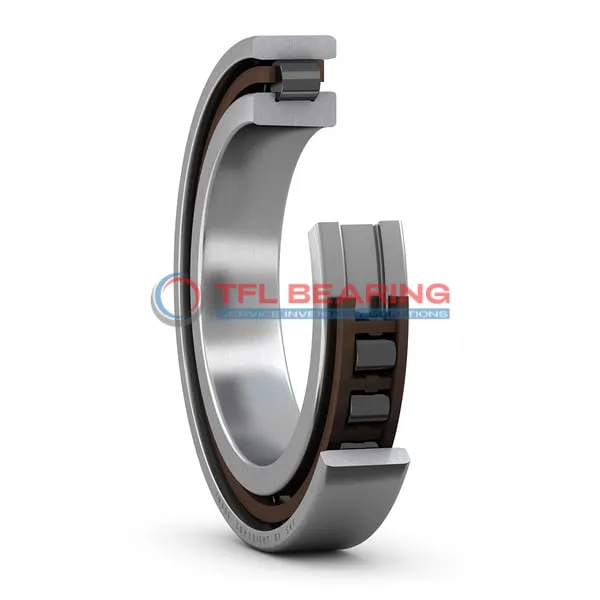

Single Row Super-Precision Cylindrical Roller Bearings N 1013 KPHA/HC5SP

Single Row Super-Precision Cylindrical Roller Bearings N 1013 KPHA/HC5SP

The N 1013 KPHA/HC5SP is a single-row cylindrical roller bearing with a 65mm tapered bore and 100mm outer diameter, crafted from high-quality chrome steel. It handles combined loads up to 9652 lbf and reaches speeds of 26000 RPM, making it suitable for high-performance applications.

Its PEEK cage and silicon nitride rollers reduce friction, ensuring smooth operation even at high speeds. The open design allows for easy lubrication with grease or oil, and it performs well in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for precision machinery like spindles or machine tools where accuracy and speed are crucial.

Weighing just 0.35kg, it’s lightweight yet durable, meeting RoHS and REACH standards for safety and environmental compliance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 1013 KPHA/HC5SP
  • Size 65 mm x 100 mm x 18 mm
  • Brand TFL
  • Interchangeable Brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 65 mm
  • Bore Dia Tolerance 0 to +0.015mm
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.010mm to 0
  • Width 18 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 78.2 mm
  • Raceway Diameter Outer Ring 91 mm
  • Chamfer Dimension Outer Ring(r1,2)(min.) 1.1 mm
  • Chamfer Dimension Inner Ring(r3,4)(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 2.5 mm
  • Ring Material Chrome Steel
  • Roller Material Si3N4
  • Cage Material PEEK cage, outer ring centred
  • Dynamic Radial Load 9652 lbf
  • Static Radial Load 12150 lbf
  • Max Speed 26000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.35 kg

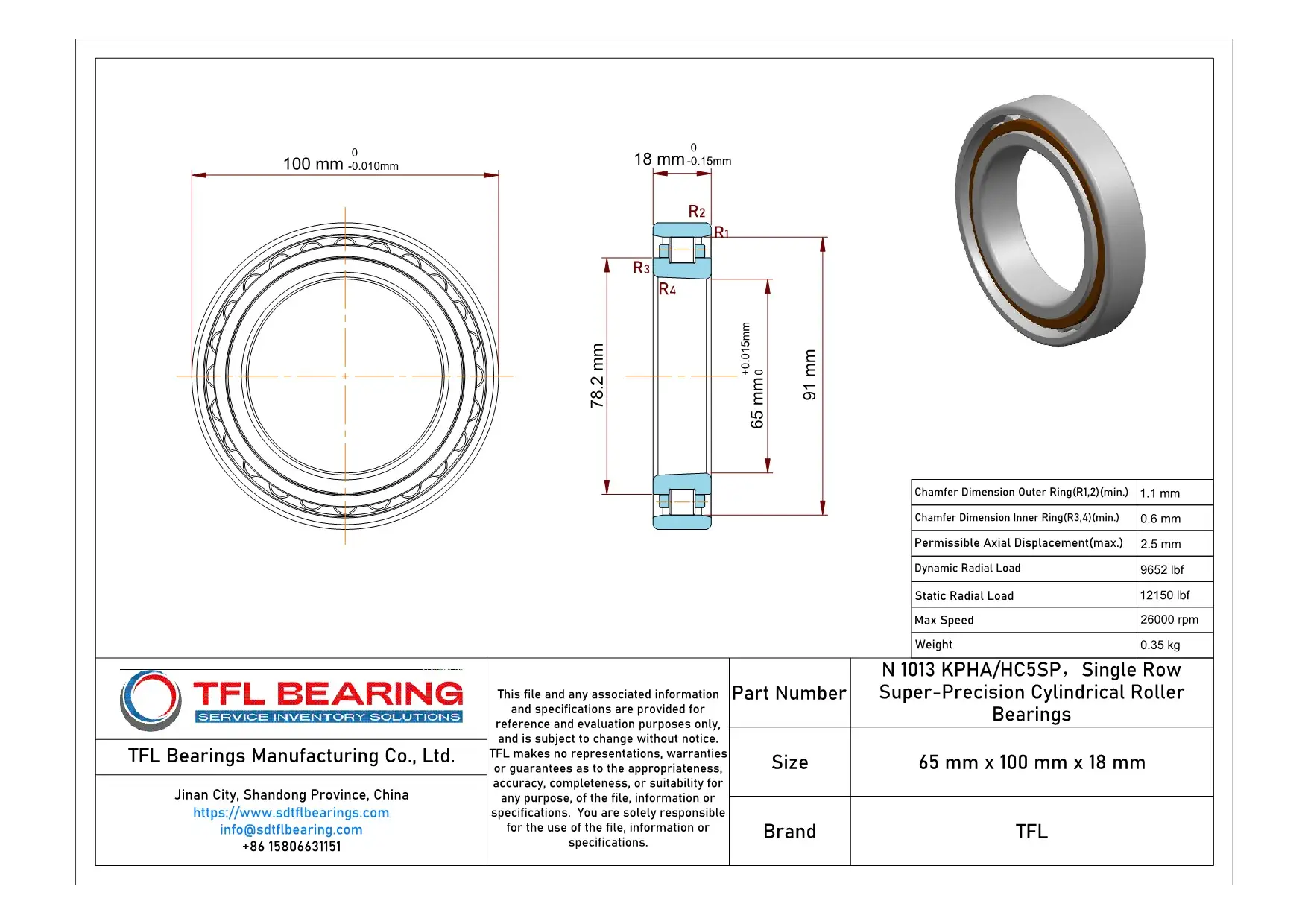

Single Row Super-Precision Cylindrical Roller Bearings N 1013 KPHA/HC5SP dimension drawing
Download DWG Download PDF

Features

Performance Features of N 1013 KPHA/HC5SP Bearing

N 1013 KPHA/HC5SP Bearing is built with chrome steel rings and Si3N4 rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 9652 lbf, ensuring reliable performance in precision applications.

The PEEK cage keeps the rollers aligned, reducing friction and extending service life.
With a maximum speed of 26,000 rpm, it delivers both durability and efficiency.

N 1013 KPHA/HC5SP Bearing operates smoothly in temperatures from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The tapered bore design ensures secure fitting and precise alignment.
This makes N 1013 KPHA/HC5SP Bearing suitable for high-speed and high-precision machinery.

Application

Industrial Uses of N 1013 KPHA/HC5SP Bearing
N 1013 KPHA/HC5SP Bearing is commonly used in high-speed machine tools, where its cylindrical roller design ensures precise radial load handling. The PEEK cage and Si3N4 rollers contribute to smooth operation even at 26,000 rpm.

In automotive applications, N 1013 KPHA/HC5SP Bearing supports gearbox components, thanks to its combined load capacity and tapered bore for secure fitting. Its chrome steel construction also withstands the demanding conditions of vehicle transmissions.

For automation systems, N 1013 KPHA/HC5SP Bearing is ideal for robotic arms, where its low friction and high-speed capabilities enhance movement accuracy. The open design allows for easy lubrication, extending service life in continuous operation.

Medical imaging devices benefit from N 1013 KPHA/HC5SP Bearing’s reliability, as its precision reduces vibration in sensitive equipment. The wide temperature range ensures consistent performance in various clinical environments.

In consumer electronics, N 1013 KPHA/HC5SP Bearing can be found in high-performance printers, where its durability supports frequent use. The metric sizing makes it compatible with a range of compact devices.
