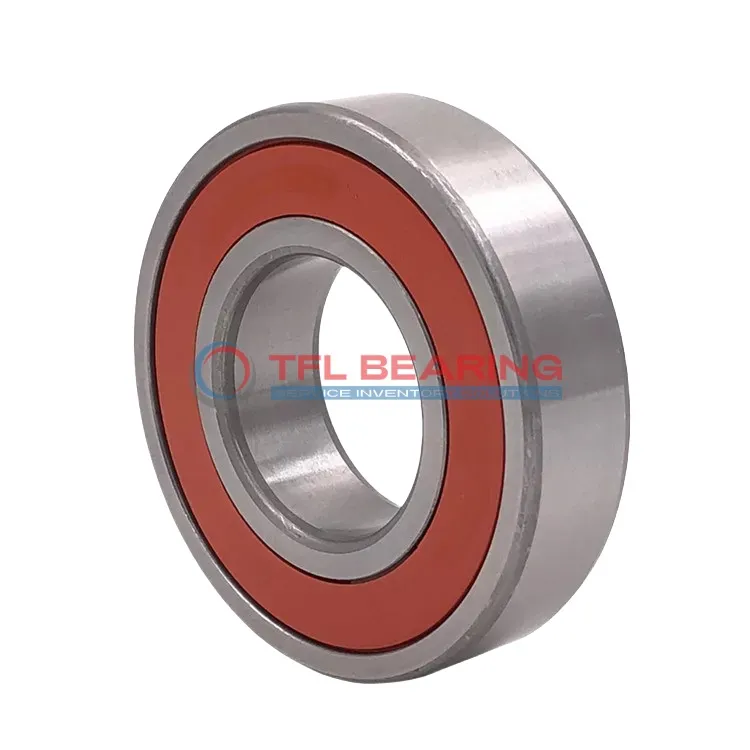

Single Row Deep Groove Ball Bearings 6313-2RS1/C3

Single Row Deep Groove Ball Bearings 6313-2RS1/C3

The 6313-2RS1/C3 is a single-row deep groove ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2084 lbf and operates smoothly at speeds up to 4800 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 2080g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6313-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 33 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2084 lbf
  • Static Radial Load 13466 lbf
  • Max Speed 4800 rpm
  • Weight 2080 g
  • price（$） 45.774
Single Row Deep Groove Ball Bearings 6313-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6313-2RS1/C3 Bearing

6313-2RS1/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 2084 lbf.

Its sealed design protects against dust and moisture, enhancing durability in various environments.

The C3 radial clearance ensures smooth operation, even under fluctuating temperatures.

With a maximum speed of 4,800 rpm, it balances performance and longevity.

Application

Common Applications of 6313-2RS1/C3 Bearing
6313-2RS1/C3 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6313-2RS1/C3 Bearing fits well in wheel hubs and transmissions, offering reliable performance under radial loads. Its chrome steel construction provides durability for long-term use.

For automation systems, 6313-2RS1/C3 Bearing supports robotic arms and conveyor belts, where precision and low maintenance are key. The sealed design also makes it suitable for dusty or wet environments.

In household appliances like washing machines, 6313-2RS1/C3 Bearing ensures quiet and efficient operation. Its robust design handles the constant motion and load variations typical in home use.

Medical devices benefit from 6313-2RS1/C3 Bearing’s consistent performance in equipment like centrifuges. The sealed construction helps maintain hygiene by preventing lubricant leakage.
