Single Row Deep Groove Ball Bearings 6313-2RS1/C3 GJN

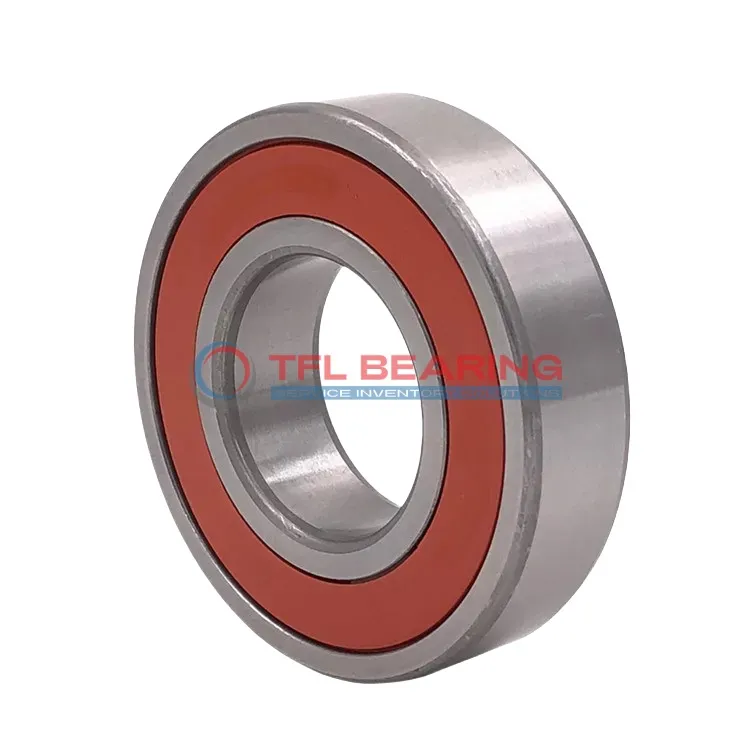

Single Row Deep Groove Ball Bearings 6313-2RS1/C3 GJN

The 6313-2RS1/C3 GJN is a single-row deep groove ball bearing with a 65mm bore and 140mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 2084 lbf and runs smoothly at speeds up to 4800 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 clearance allows for slight thermal expansion, ideal for varying temperatures.

With a width of 33mm, it’s compact yet robust, weighing 2.08kg. It works well in temperatures from -30°C to 120°C, suitable for industrial machinery or electric motors.

Compliant with RoHS and REACH standards, this bearing is interchangeable with SKF models, offering a reliable replacement option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6313-2RS1/C3 GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 33 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2084 lbf
  • Static Radial Load 13466 lbf
  • Max Speed 4800 rpm
  • Weight 2080 g
  • price（$） 48.24
Single Row Deep Groove Ball Bearings 6313-2RS1/C3 GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6313-2RS1/C3 GJN Bearing

6313-2RS1/C3 GJN Bearing is designed for radial loads, with a dynamic radial load capacity of 2084 lbf.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the C3 radial clearance allows for thermal expansion.
With a maximum speed of 4,800 rpm, it offers reliable performance in demanding applications.

The bearing’s sealed design reduces maintenance needs, making it a practical choice for long-term use.
Its temperature range of -30° to 120°C ensures versatility across different operating conditions.

Application

Industrial Uses of 6313-2RS1/C3 GJN Bearing
6313-2RS1/C3 GJN Bearing is commonly used in industrial machinery like pumps and compressors, where its sealed design keeps contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

In automotive applications, 6313-2RS1/C3 GJN Bearing handles radial loads in components such as alternators and water pumps. Its chrome steel construction offers durability, making it suitable for long-term use in vehicles.

For automation systems, 6313-2RS1/C3 GJN Bearing provides smooth operation in robotic arms and conveyor belts. The sealed design reduces maintenance needs, ideal for high-duty cycles in manufacturing environments.

In household appliances like washing machines, 6313-2RS1/C3 GJN Bearing ensures quiet and efficient performance. Its robust design handles the vibrations and loads typical in daily use.
