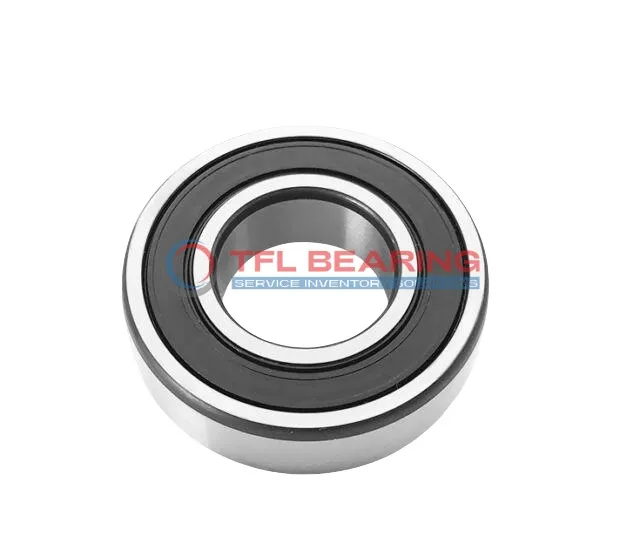

Single Row Deep Groove Ball Bearings 6309-RS1/C3GJN

Single Row Deep Groove Ball Bearings 6309-RS1/C3GJN

The 6309-RS1/C3GJN is a single-row deep groove ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11915 lbf and operates smoothly at speeds up to 6700 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, making replacements straightforward. Ideal for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 811g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6309-RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11915 lbf
  • Static Radial Load 7194 lbf
  • Max Speed 6700 rpm
  • Weight 811 g
Single Row Deep Groove Ball Bearings 6309-RS1/C3GJN dimension drawing
Download DWG Download PDF

Features

How Does 6309-RS1/C3GJN Bearing Reduce Friction?

6309-RS1/C3GJN Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under high radial loads of up to 11915 lbf.
The C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
With a maximum speed of 6,700 rpm, it offers reliable efficiency in demanding applications.

Application

Industrial Uses of 6309-RS1/C3GJN Bearing
The 6309-RS1/C3GJN Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. Its C3 radial clearance allows for slight misalignment, making it suitable for high-vibration environments.

What Makes 6309-RS1/C3GJN Bearing a Preferred Choice?
In automotive applications, 6309-RS1/C3GJN Bearing works well in alternators and water pumps due to its reliable radial load capacity. The chrome steel construction ensures longevity even under constant use.

Perfect Fit for Automation: 6309-RS1/C3GJN Bearing
For automated systems, 6309-RS1/C3GJN Bearing is ideal for conveyor belts and robotic arms, where smooth operation is key. The sealed feature reduces maintenance needs, saving time and effort.

Medical vs Industrial: Where 6309-RS1/C3GJN Bearing Excels
In medical devices like centrifuges, 6309-RS1/C3GJN Bearing offers quiet and precise performance. Its industrial strength also makes it a go-to for heavy machinery requiring consistent radial support.
