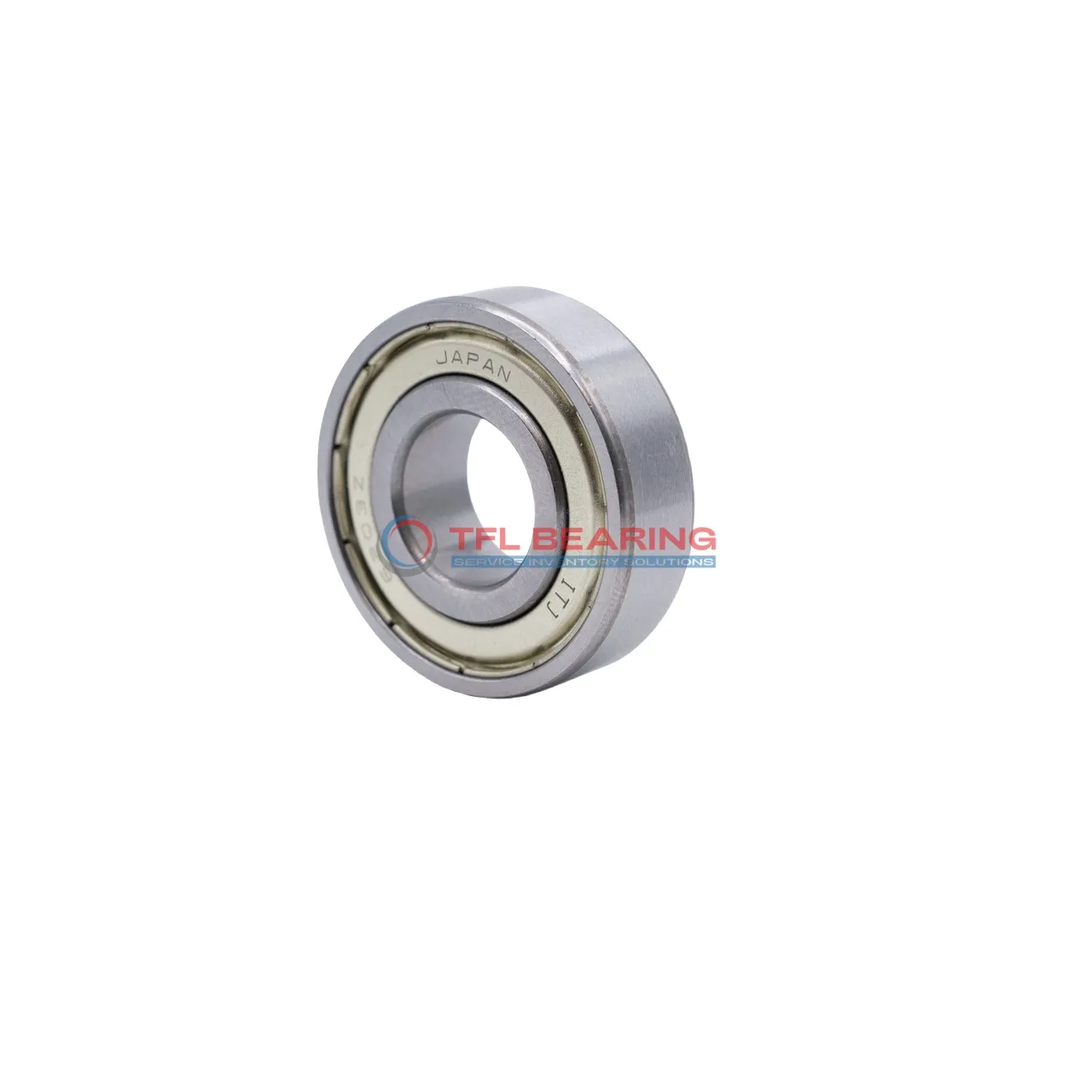

Single Row Deep Groove Ball Bearings 6305-2Z/C3MT33

Single Row Deep Groove Ball Bearings 6305-2Z/C3MT33

The 6305-2Z/C3MT33 is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4631 lbf and spins smoothly at speeds up to 11,000 RPM.

Its shielded design keeps dirt out while the C3 radial clearance allows for slight misalignment. The chrome steel cage ensures durability and long service life.

This bearing operates well in temperatures from -30°C to 120°C, making it versatile for various conditions. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing just 232g, it’s lightweight yet robust. Ideal for applications like electric motors or pumps where radial loads and moderate speeds are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-2Z/C3MT33
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g
Single Row Deep Groove Ball Bearings 6305-2Z/C3MT33 dimension drawing
Download DWG Download PDF

Features

How Does 6305-2Z/C3MT33 Bearing Reduce Friction?

6305-2Z/C3MT33 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while minimising friction during operation.

Shielded on both sides, 6305-2Z/C3MT33 Bearing protects against contaminants without compromising speed.
Its C3 radial clearance allows for thermal expansion, maintaining performance in varied temperatures.

With a dynamic radial load capacity of 4631 lbf, 6305-2Z/C3MT33 Bearing handles demanding applications reliably.
The ABEC 1 tolerance class ensures consistent performance for general industrial use.

Operating up to 11,000 rpm, 6305-2Z/C3MT33 Bearing balances speed and longevity effectively.
Its 17mm width provides a compact solution for space-constrained installations.

Application

Common Applications of 6305-2Z/C3MT33 Bearing
6305-2Z/C3MT33 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its shielded design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying temperatures.

In automotive applications, 6305-2Z/C3MT33 Bearing fits well in components such as alternators and water pumps, thanks to its durable chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

For automation systems, 6305-2Z/C3MT33 Bearing works efficiently in robotic arms and assembly line equipment. The ABEC 1 tolerance ensures reliable performance in precision-driven tasks.

Around the home, 6305-2Z/C3MT33 Bearing can be found in appliances like washing machines and power tools. Its shielded seals help extend the lifespan by reducing dust and debris ingress.
