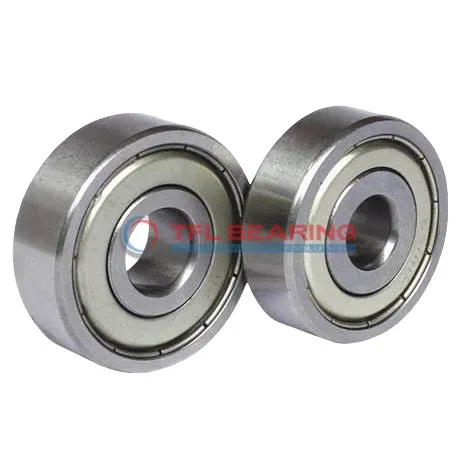

Single Row Deep Groove Ball Bearings 6302-Z/MT47VK285

Single Row Deep Groove Ball Bearings 6302-Z/MT47VK285

The 6302-Z is a compact single-row deep groove ball bearing, measuring 15mm in bore and 42mm in outer diameter, with a width of 13mm. Made from durable chrome steel, it handles radial loads up to 2563 lbf and spins smoothly at speeds up to 17,000 RPM.

Its shielded design keeps dirt out while maintaining smooth operation, and the chrome steel cage adds durability. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s ideal for applications like electric motors or small machinery where reliable radial load support is needed.

Weighing just 82g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6302-Z/MT47VK285
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1225 lbf
  • Max Speed 17000 rpm
  • Weight 82 g
Single Row Deep Groove Ball Bearings 6302-Z/MT47VK285 dimension drawing
Download DWG Download PDF

Features

Why Choose 6302-Z/MT47VK285 Bearing for Precision Tasks?

6302-Z/MT47VK285 Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 2563 lbf, it handles demanding tasks with ease.
The bearing operates efficiently at speeds up to 17,000 rpm, making it suitable for high-performance machinery.

Application

Common Applications of 6302-Z/MT47VK285 Bearing
This bearing is widely used in industrial machinery, such as electric motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6302-Z/MT47VK285 Bearing is often found in alternators and small gearboxes, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances like washing machines, 6302-Z/MT47VK285 Bearing offers smooth operation and long service life. The shielded seals help protect against dust and moisture, extending its performance.

Where Is 6302-Z/MT47VK285 Bearing Used?
You’ll often see this bearing in conveyor systems, where its radial load capacity and shielded design are ideal for continuous operation. It’s also a popular choice for small industrial fans.

In robotics, 6302-Z/MT47VK285 Bearing provides precise movement in joints and actuators. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Built for Heavy-Duty Use: 6302-Z/MT47VK285 Bearing
This bearing handles radial loads effortlessly in agricultural equipment like small tractors. Its chrome steel cage adds strength while maintaining smooth rotation.

For workshop tools such as grinders, 6302-Z/MT47VK285 Bearing delivers reliable performance. The temperature range suits both indoor and outdoor applications.

Light-Duty vs Heavy-Duty: Best Uses for 6302-Z/MT47VK285 Bearing
In light-duty applications like office printers, this bearing operates quietly thanks to its shielded design. For heavier tasks, it’s robust enough for small industrial compressors.

The 6302-Z/MT47VK285 Bearing works well in both low-speed and high-speed scenarios, from food processing equipment to small turbine systems. Its versatility makes it a go-to solution.
