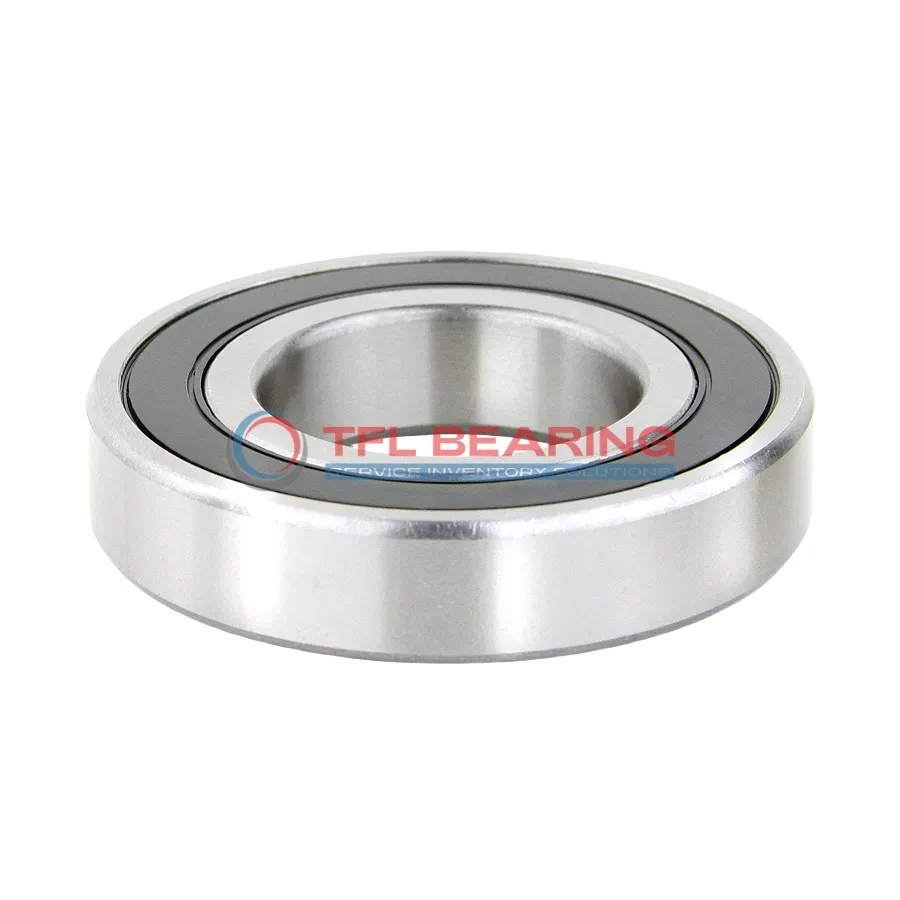

Single Row Deep Groove Ball Bearings 6302-RS1/MT47VK285

Single Row Deep Groove Ball Bearings 6302-RS1/MT47VK285

The 6302-RS1 is a compact single-row deep groove ball bearing, measuring 15mm by 42mm by 13mm, crafted from durable chrome steel. It handles radial loads up to 2563 lbf and spins smoothly at speeds up to 17,000 RPM.

Its sealed design keeps out dust and dirt, making it low-maintenance, while the chrome steel cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 82g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6302-RS1/MT47VK285
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1225 lbf
  • Max Speed 17000 rpm
  • Weight 82 g
Single Row Deep Groove Ball Bearings 6302-RS1/MT47VK285 dimension drawing
Download DWG Download PDF

Features

How Does 6302-RS1/MT47VK285 Bearing Reduce Friction?

6302-RS1/MT47VK285 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under high radial loads of up to 2563 lbf.
The single-row deep groove design enhances efficiency, making it suitable for various applications.
With a maximum speed of 17,000 rpm, it delivers reliable performance in demanding conditions.

Application

Industrial Uses of 6302-RS1/MT47VK285 Bearing
6302-RS1/MT47VK285 Bearing is commonly used in conveyor systems and small electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in continuous operation.

What Makes 6302-RS1/MT47VK285 Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6302-RS1/MT47VK285 Bearing provides reliable radial load support. Its ABEC 1 tolerance makes it suitable for general-purpose use without compromising performance.

Perfect Fit for Automation: 6302-RS1/MT47VK285 Bearing
For robotic arms and small automation systems, 6302-RS1/MT47VK285 Bearing offers smooth rotation and low maintenance. The sealed design is ideal for environments where contamination could be an issue.

Light-Duty vs Heavy-Duty: Best Uses for 6302-RS1/MT47VK285 Bearing
In light-duty applications like household fans, 6302-RS1/MT47VK285 Bearing ensures quiet operation. For heavier tasks in industrial gearboxes, it maintains stability even at higher speeds.
