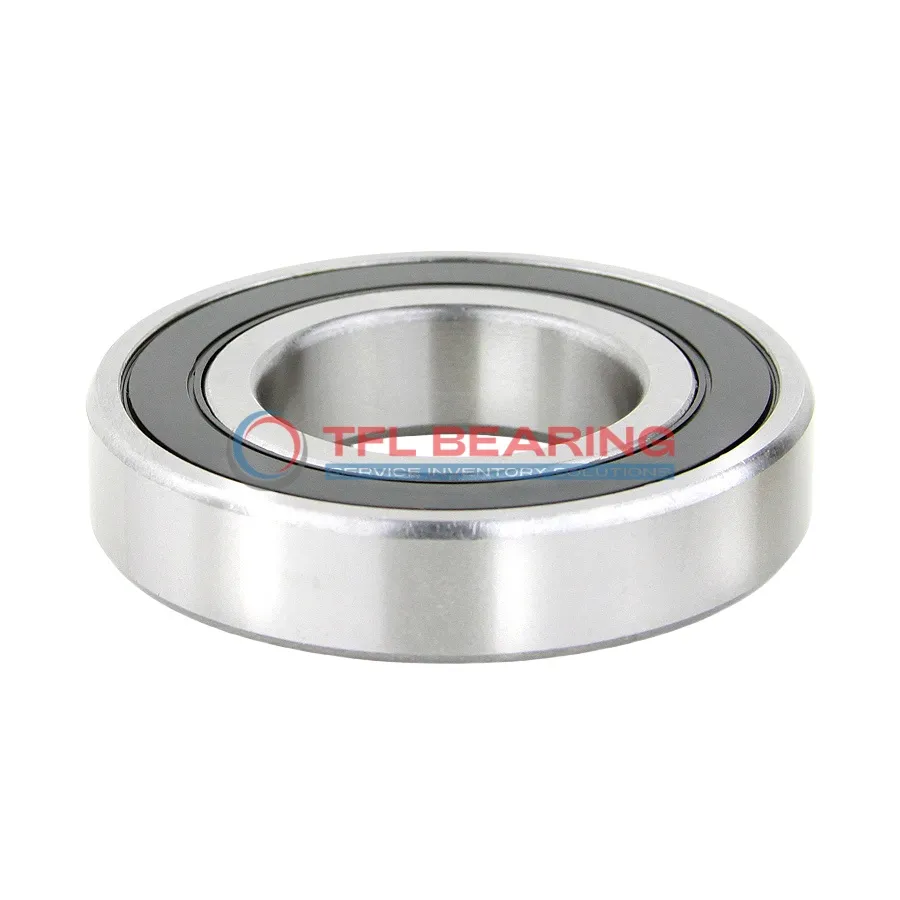

Single Row Deep Groove Ball Bearings 6302-2RSH/C3W64F

Single Row Deep Groove Ball Bearings 6302-2RSH/C3W64F

The 6302-2RSH/C3W64F is a sealed single-row deep groove ball bearing, measuring 15mm by 42mm by 13mm. Made from durable chrome steel, it handles radial loads up to 2563 lbf and spins smoothly at speeds up to 17,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where reliability is key.

Weighing just 82g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6302-2RSH/C3W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1225 lbf
  • Max Speed 17000 rpm
  • Weight 82 g
  • price（$） 6.282
Single Row Deep Groove Ball Bearings 6302-2RSH/C3W64F dimension drawing
Download DWG Download PDF

Features

How Does 6302-2RSH/C3W64F Bearing Reduce Friction?

6302-2RSH/C3W64F Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its sealed construction and solid oil lubrication minimise friction, ensuring quiet and efficient operation.
The chrome steel rings and balls enhance durability, while the C3 radial clearance allows for thermal expansion.
With a maximum speed of 17,000 rpm, it delivers reliable performance across a wide temperature range.

Application

Common Applications of 6302-2RSH/C3W64F Bearing
In industrial settings, 6302-2RSH/C3W64F Bearing is widely used in electric motors and pumps, thanks to its sealed design that keeps contaminants out. The solid oil lubrication ensures smooth operation even in dusty environments.

Where Is 6302-2RSH/C3W64F Bearing Used?
You’ll often find 6302-2RSH/C3W64F Bearing in household appliances like washing machines, where its radial load capacity handles the constant motion. The chrome steel construction adds durability for long-lasting performance.

Built for Heavy-Duty Use: 6302-2RSH/C3W64F Bearing
6302-2RSH/C3W64F Bearing excels in conveyor systems, where its C3 clearance accommodates thermal expansion. The ABEC 1 tolerance makes it reliable for consistent, low-maintenance operation.

Automotive vs Industrial: Applications of 6302-2RSH/C3W64F Bearing
In automotive applications, 6302-2RSH/C3W64F Bearing supports alternators and fans, while in industry, it’s ideal for gearboxes. Its temperature range suits both high-heat engine bays and factory floors.

Perfect Fit for Automation: 6302-2RSH/C3W64F Bearing
6302-2RSH/C3W64F Bearing is a go-to for robotic arms, where its sealed design prevents lubricant leakage. The high-speed capability ensures precise movement in automated assembly lines.
