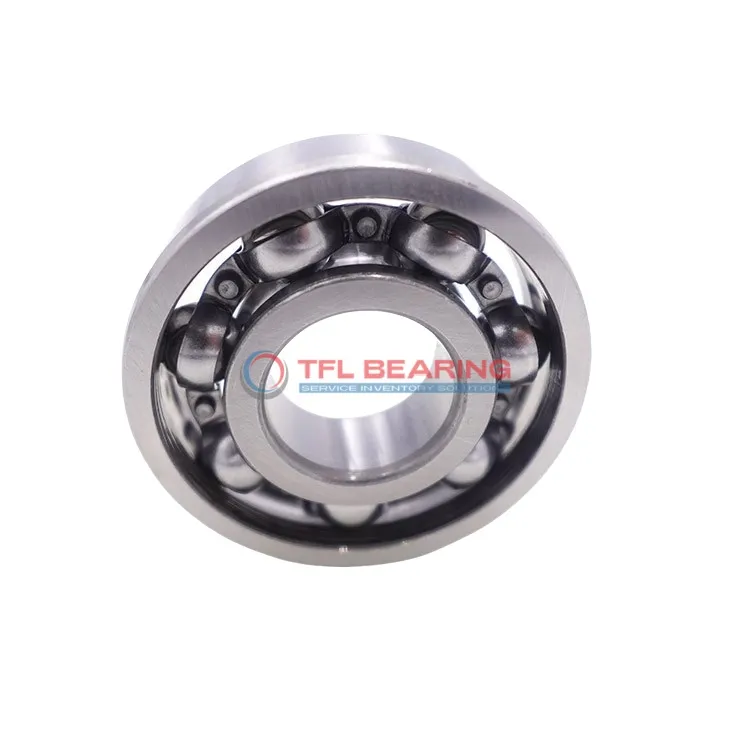

Single Row Deep Groove Ball Bearings 6217 TC/C782

Single Row Deep Groove Ball Bearings 6217 TC/C782

The 6217 TC/C782 is a single-row deep groove ball bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel for durability. It manages radial loads up to 18884 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are typical.

Weighing 1740g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6217 TC/C782
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 18884 lbf
  • Static Radial Load 13916 lbf
  • Max Speed 4300 rpm
  • Weight 1740 g
  • price（$） 228.681
Single Row Deep Groove Ball Bearings 6217 TC/C782 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6217 TC/C782 Bearing

6217 TC/C782 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 18,884 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances load distribution, reducing stress and wear.
With a maximum speed of 4,300 rpm, it balances durability and efficiency for smooth operation.

6217 TC/C782 Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
The open seal design allows for easy maintenance, though it requires proper lubrication for optimal performance.

Its ABEC 1 | ISO P0 tolerance class ensures consistent quality and reliability.
The chrome steel cage keeps the balls aligned, extending the bearing’s service life.

Application

Common Applications of 6217 TC/C782 Bearing
This bearing is widely used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending service life in demanding conditions.

Where Is 6217 TC/C782 Bearing Used?
You’ll often find it in automotive applications such as wheel hubs and alternators, thanks to its reliable performance under radial loads. The chrome steel construction also makes it suitable for high-temperature environments.

Built for Heavy-Duty Use: 6217 TC/C782 Bearing
It’s a solid choice for conveyor systems and agricultural equipment, where durability matters. The ABEC 1 tolerance ensures consistent performance without overcomplicating maintenance.

Automotive vs Industrial: Applications of 6217 TC/C782 Bearing
In cars, it handles wheel loads, while in factories, it supports machinery shafts. The metric sizing makes it versatile for global equipment standards.

Perfect Fit for Automation: 6217 TC/C782 Bearing
Robotic arms and assembly lines benefit from its smooth rotation and load handling. The chrome steel cage adds extra resilience in high-cycle applications.
