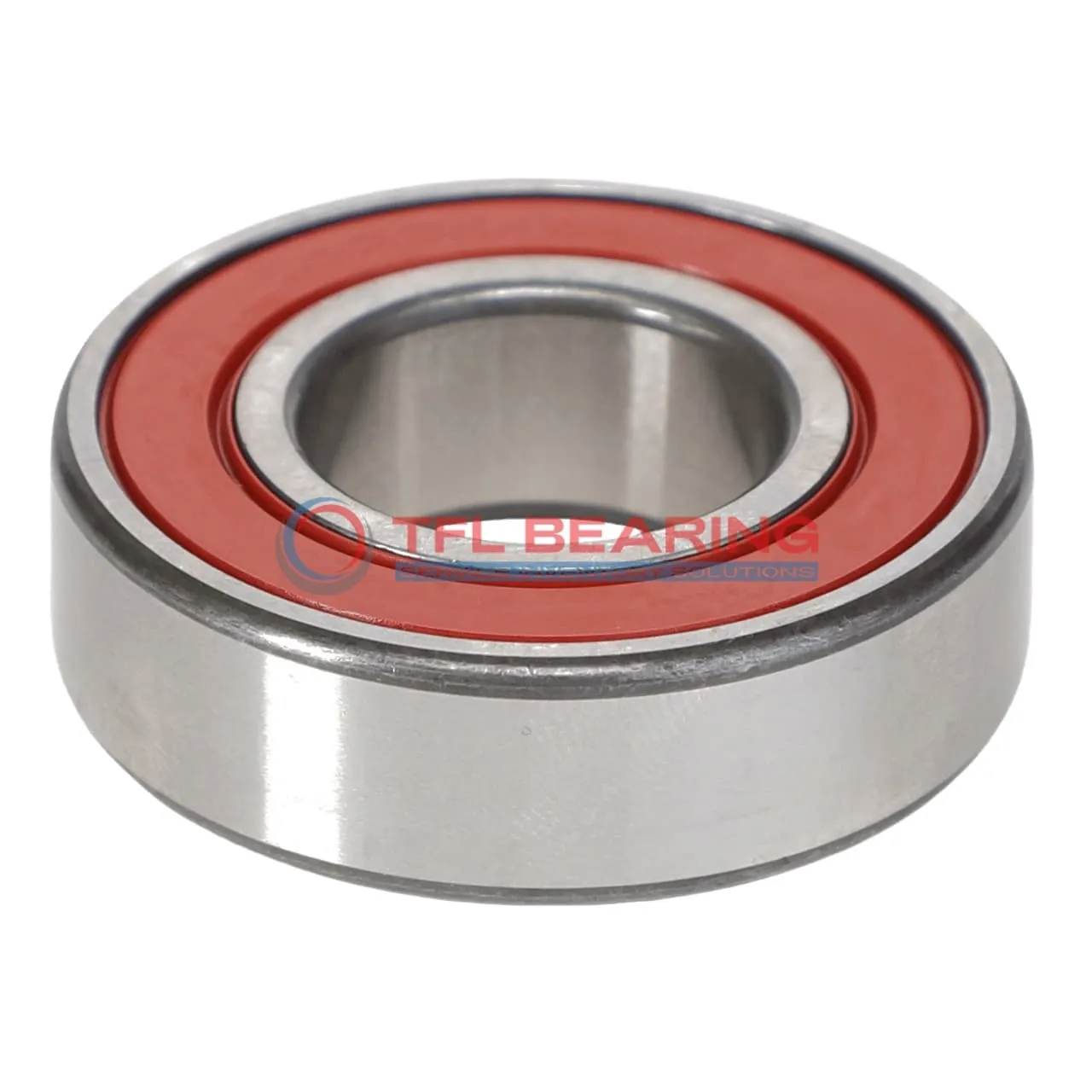

Single Row Deep Groove Ball Bearings 6214-2RS1/GXNDBGA

Single Row Deep Groove Ball Bearings 6214-2RS1/GXNDBGA

The 6214-2RS1/GXNDBGA is a single-row deep groove ball bearing with a 70mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13983 lbf and operates smoothly at speeds up to 5000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds durability, ensuring reliable performance even under stress.

With a temperature range of -30°C to 120°C, it suits various environments. Its compact 24mm width and 1070g weight make it easy to fit into tight spaces without sacrificing strength.

Ideal for machinery like pumps or electric motors where radial loads are common. Compliant with RoHS and REACH standards, it’s a safe and versatile choice for industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6214-2RS1/GXNDBGA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13983 lbf
  • Static Radial Load 9914 lbf
  • Max Speed 5000 rpm
  • Weight 1070 g
Single Row Deep Groove Ball Bearings 6214-2RS1/GXNDBGA dimension drawing
Download DWG Download PDF

Features

How Does 6214-2RS1/GXNDBGA Bearing Reduce Friction?

6214-2RS1/GXNDBGA Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction helps to retain lubrication, reducing friction and wear over time.
Chrome steel rings and balls enhance durability, while the cage ensures stable operation.
With a maximum speed of 5,000 rpm, it maintains efficiency in various applications.

Application

Common Applications of 6214-2RS1/GXNDBGA Bearing
In industrial settings, 6214-2RS1/GXNDBGA Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability even in demanding environments.

Where Is 6214-2RS1/GXNDBGA Bearing Used?
You’ll often find 6214-2RS1/GXNDBGA Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load capacity. The sealed feature also makes it suitable for areas exposed to moisture or dirt.

Perfect Fit for Automation: 6214-2RS1/GXNDBGA Bearing
For robotic arms and automated machinery, 6214-2RS1/GXNDBGA Bearing offers smooth operation and low maintenance. Its consistent performance makes it a go-to choice for precision movements.

Light-Duty vs Heavy-Duty: Best Uses for 6214-2RS1/GXNDBGA Bearing
In light-duty applications like household appliances, 6214-2RS1/GXNDBGA Bearing provides quiet and efficient performance. For heavier tasks, it handles radial loads well in industrial gearboxes and pumps.
