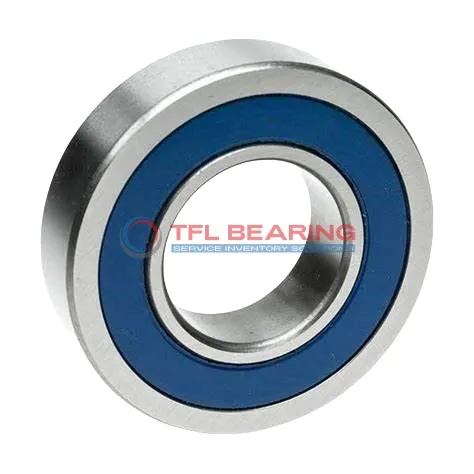

Single Row Deep Groove Ball Bearings 6206-2RS1/C3GJN

Single Row Deep Groove Ball Bearings 6206-2RS1/C3GJN

The 6206-2RS1/C3GJN is a sealed single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4384 lbf and spins smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the C3 radial clearance ensures reliable performance under varying temperatures. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Ideal for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing just 199g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-2RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
  • price（$） 3.717
Single Row Deep Groove Ball Bearings 6206-2RS1/C3GJN dimension drawing
Download DWG Download PDF

Features

How Does 6206-2RS1/C3GJN Bearing Reduce Friction?

6206-2RS1/C3GJN Bearing features a single-row deep groove design, optimised for smooth radial load handling.
The sealed construction keeps contaminants out, ensuring consistent performance over time.
Made from chrome steel, it offers reliable durability and resistance to wear.
With a maximum speed of 11,000 rpm, it balances efficiency and longevity in various applications.

Application

Common Applications of 6206-2RS1/C3GJN Bearing
In industrial settings, 6206-2RS1/C3GJN Bearing is widely used in conveyor systems and electric motors, thanks to its sealed design which keeps out dust and debris. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6206-2RS1/C3GJN Bearing Used?
You’ll often find 6206-2RS1/C3GJN Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are ideal. The chrome steel material also offers good resistance to wear over time.

Built for Heavy-Duty Use: 6206-2RS1/C3GJN Bearing
For household appliances like washing machines, 6206-2RS1/C3GJN Bearing provides smooth operation and long service life. Its metric sizing makes it easy to replace in most European and Asian models.

Automotive vs Industrial: Applications of 6206-2RS1/C3GJN Bearing
In automotive gearboxes, 6206-2RS1/C3GJN Bearing handles radial loads efficiently, while in industrial fans, its sealed design prevents contamination. The wide temperature range ensures performance in diverse environments.

Key Fields for 6206-2RS1/C3GJN Bearing
Medical devices like centrifuges benefit from 6206-2RS1/C3GJN Bearing’s precision and reliability. The chrome steel construction ensures consistent performance in high-speed applications.
