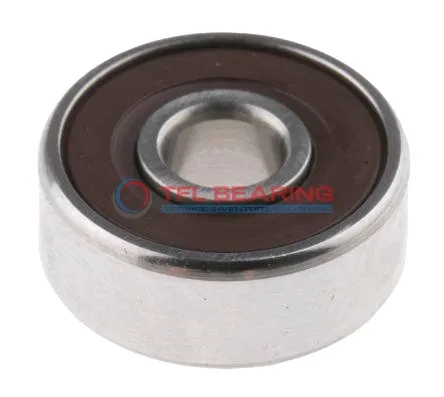

Single Row Deep Groove Ball Bearings 6205-2RSH/C3LHT23

Single Row Deep Groove Ball Bearings 6205-2RSH/C3LHT23

The 6205-2RSH/C3LHT23 is a single-row deep groove ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3147 lbf and spins smoothly at speeds up to 13,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the chrome steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. Ideal for electric motors, pumps, or small machinery where reliable radial load support is needed.

Weighing just 128g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6205-2RSH/C3LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3147 lbf
  • Static Radial Load 1765 lbf
  • Max Speed 13000 rpm
  • Weight 128 g
  • price（$） 3.465
Single Row Deep Groove Ball Bearings 6205-2RSH/C3LHT23 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6205-2RSH/C3LHT23 Bearing

6205-2RSH/C3LHT23 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 3147 lbf, ensuring reliable performance in various applications.

The sealed design of 6205-2RSH/C3LHT23 Bearing protects against dust and moisture, extending its service life.
It operates smoothly in temperatures ranging from -30°C to 120°C, making it versatile for different environments.

With a maximum speed of 13,000 rpm, 6205-2RSH/C3LHT23 Bearing balances durability and efficiency.
The C3 radial clearance ensures optimal performance under varying load conditions.

Application

Common Applications of 6205-2RSH/C3LHT23 Bearing
In industrial machinery, 6205-2RSH/C3LHT23 Bearing is widely used in pumps and electric motors, thanks to its sealed design that keeps contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6205-2RSH/C3LHT23 Bearing Used?
You’ll often find 6205-2RSH/C3LHT23 Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are ideal. The chrome steel build also offers good resistance to wear over time.

Built for Heavy-Duty Use: 6205-2RSH/C3LHT23 Bearing
For automation equipment, 6205-2RSH/C3LHT23 Bearing provides reliable performance in conveyor systems and robotic arms. Its ABEC 1 tolerance ensures consistent operation without excessive maintenance.

Automotive vs Industrial: Applications of 6205-2RSH/C3LHT23 Bearing
In cars, 6205-2RSH/C3LHT23 Bearing handles radial loads in components like fans and pulleys, while in factories, it supports machinery with moderate speed requirements. The temperature range makes it versatile for different environments.

Practical Applications of 6205-2RSH/C3LHT23 Bearing
For household appliances like washing machines, 6205-2RSH/C3LHT23 Bearing offers quiet and efficient operation. The sealed design helps prolong its life by preventing dust and moisture ingress.
