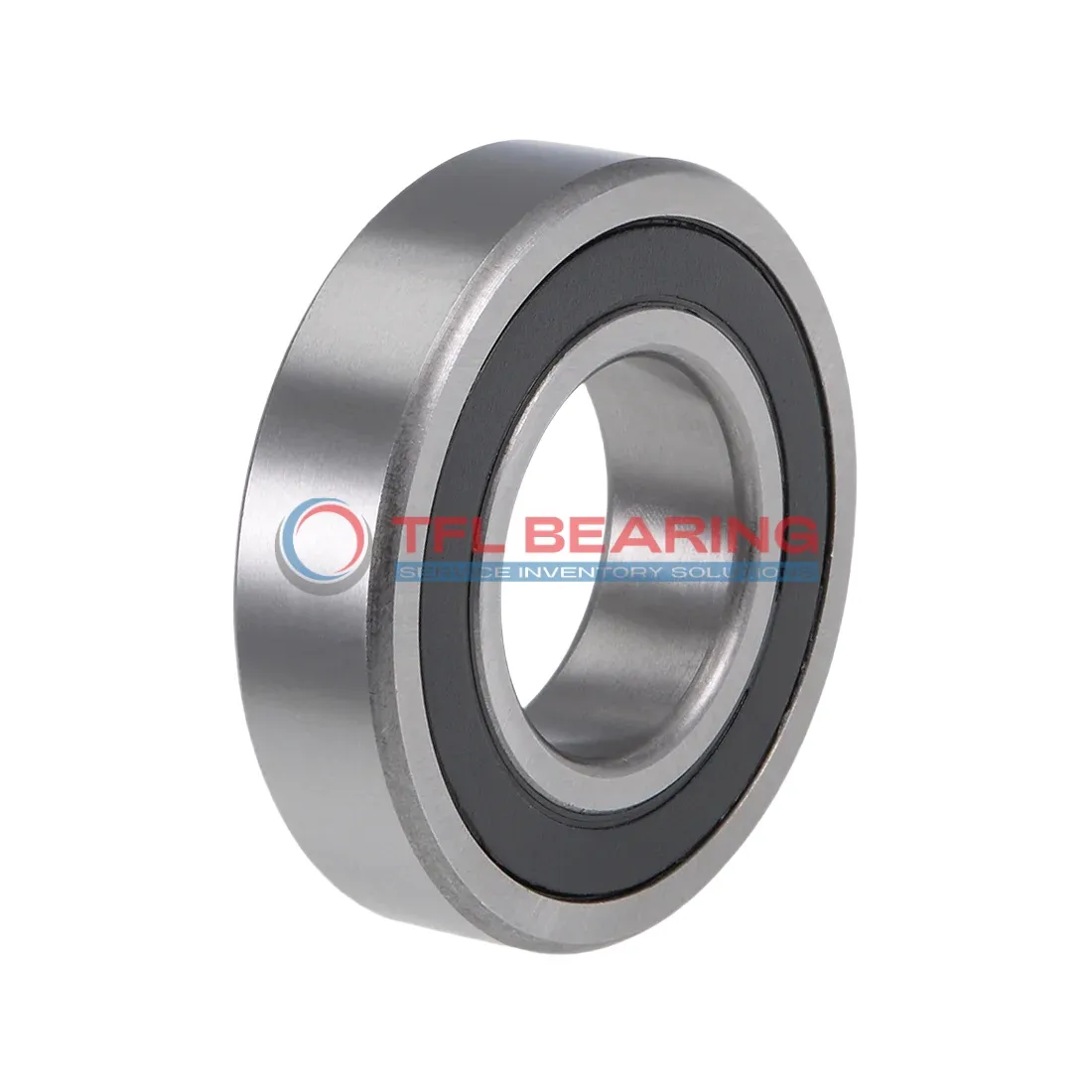

Single Row Deep Groove Ball Bearings 6024-2RS1/C3W64

Single Row Deep Groove Ball Bearings 6024-2RS1/C3W64

The 6024-2RS1/C3W64 is a single-row deep groove ball bearing with a 120mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 19873 lbf and runs smoothly at speeds up to 4800 RPM.

Its sealed design keeps dirt out and the solid oil lubrication ensures long service life with minimal maintenance. The C3 radial clearance allows for slight thermal expansion, making it reliable under varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative for replacements. It’s well-suited for industrial machinery, pumps, or electric motors where radial loads are common.

Weighing 2100g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it operates safely in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6024-2RS1/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 19873 lbf
  • Static Radial Load 17985 lbf
  • Max Speed 4800 rpm
  • Weight 2100 g
  • price（$） 150.948
Single Row Deep Groove Ball Bearings 6024-2RS1/C3W64 dimension drawing
Download DWG Download PDF

Features

How Does 6024-2RS1/C3W64 Bearing Reduce Friction?

6024-2RS1/C3W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
Its chrome steel construction provides durability and resistance to wear, even under high radial loads.

The C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
With a maximum speed of 4,800 rpm, it offers reliable efficiency for industrial applications.

The sealed design protects against contaminants, extending the bearing’s service life.
Its static radial load capacity of 17,985 lbf ensures stability in demanding conditions.

Application

Industrial Uses of 6024-2RS1/C3W64 Bearing
This bearing is commonly used in industrial machinery like pumps and compressors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in demanding environments.

What Makes 6024-2RS1/C3W64 Bearing a Preferred Choice?
In automotive applications, it supports components such as electric motors and alternators, thanks to its reliable radial load capacity. The chrome steel construction offers durability under various operating conditions.

Perfect Fit for Automation: 6024-2RS1/C3W64 Bearing
It works well in robotic arms and conveyor systems, where precision and low maintenance are key. The C3 clearance allows for slight misalignments without compromising performance.

Medical vs Industrial: Where 6024-2RS1/C3W64 Bearing Excels
While suitable for industrial gear, it also finds use in medical devices like centrifuges, where consistent speed is vital. The temperature range makes it adaptable to different settings.

Where to Use 6024-2RS1/C3W64 Bearing
In household appliances like washing machines, this bearing reduces noise and vibration. Its sealed design prevents grease leakage, extending the appliance’s lifespan.
