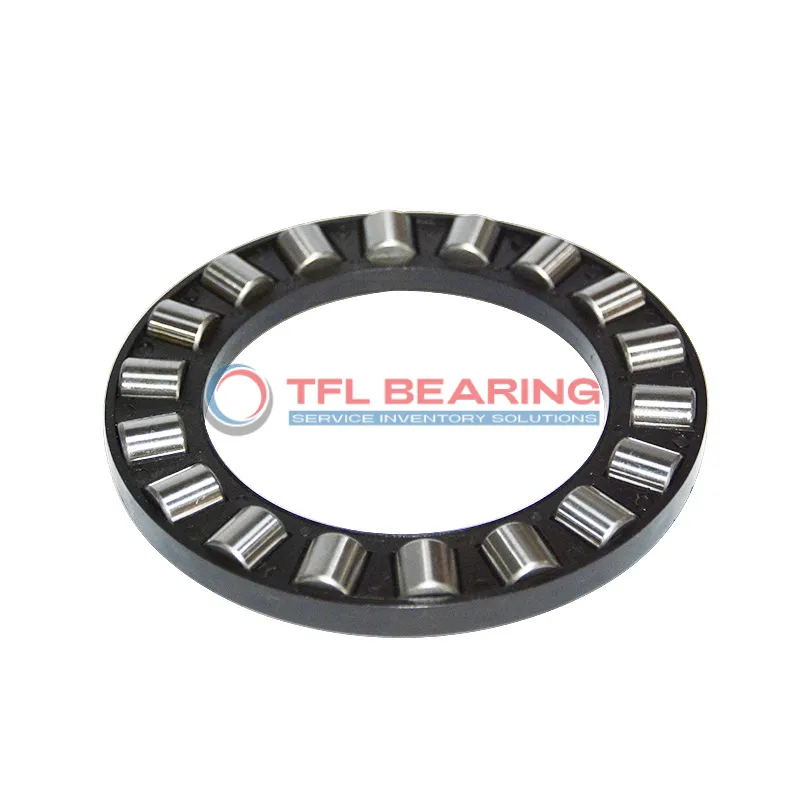

Single Row Cylindrical Roller Thrust Bearings assembly K 81206 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81206 TN

The K 81206 TN is a compact single-row cylindrical roller thrust bearing, measuring 30mm by 52mm by 7.5mm. Made from chrome steel, it’s built to handle heavy thrust loads with ease.

With a dynamic radial load capacity of 11250 lbf and a max speed of 4800 RPM, it performs reliably under pressure. The glass fibre reinforced PA66 cage adds durability while keeping the weight light at just 0.033kg.

Its design includes separate shaft and housing washers (WS 81206 and GS 81206) for easy installation. The bearing operates smoothly in temperatures from -30°C to 110°C.

Ideal for machinery with high axial loads, such as gearboxes or industrial equipment. It’s interchangeable with SKF bearings, making replacements straightforward. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81206 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 30 mm
  • Bore Dia Tolerance +0.04mm to +0.17mm
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.34mm to -0.80mm
  • Diameter Roller 7.5 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 31 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 50 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 11250 lbf
  • Static Radial Load 30150 lbf
  • Max Speed 4800 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.033 kg
  • Shaft Washer WS 81206
  • Housing Washer GS 81206

Features

Performance Features of K 81206 TN Bearing

K 81206 TN Bearing is designed with a single row of cylindrical rollers, ideal for handling thrust loads efficiently.
Its chrome steel rollers and glass fibre reinforced PA66 cage ensure durability and smooth operation.

The bearing can withstand dynamic radial loads up to 11250 lbf, making it suitable for demanding applications.
With a maximum speed of 4800 rpm, it balances performance and reliability in various conditions.

K 81206 TN Bearing operates within a temperature range of -30° to 110°C, ensuring versatility in different environments.
Its compact size of 30 mm x 52 mm x 7.5 mm allows for easy integration into various machinery setups.

Application

Industrial Uses of K 81206 TN Bearing
K 81206 TN Bearing is commonly used in industrial settings, especially in machinery that handles heavy axial loads, like presses and gearboxes. Its cylindrical roller design ensures efficient load distribution, making it suitable for high-demand environments.

Where Is K 81206 TN Bearing Used?
In automotive applications, K 81206 TN Bearing can be found in clutch systems and transmissions, where its robust construction handles thrust loads effectively. The glass fibre reinforced cage adds durability, even under frequent use.

Built for Heavy-Duty Use: K 81206 TN Bearing
For automation equipment, K 81206 TN Bearing provides reliable performance in robotic arms and conveyor systems. Its metric dimensions and high-speed capability make it a versatile choice for various industrial needs.

Medical vs Industrial: Where K 81206 TN Bearing Excels
While K 81206 TN Bearing isn’t typically used in medical devices, it shines in industrial applications like pumps and compressors. Its chrome steel rollers and reinforced cage ensure long-lasting performance in tough conditions.
