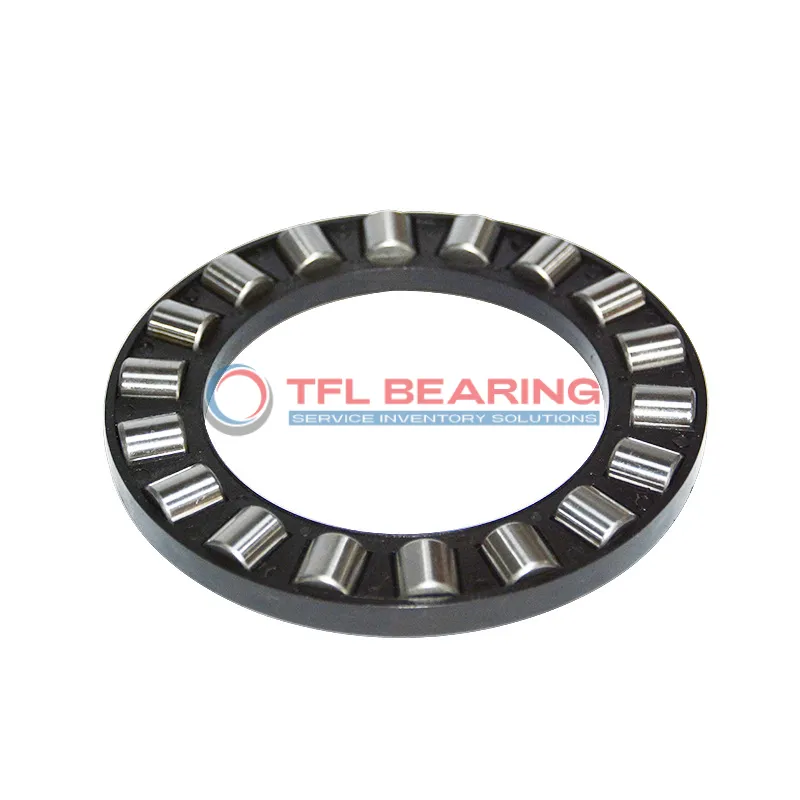

Single Row Cylindrical Roller Thrust Bearings assembly K 81106 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81106 TN

The K 81106 TN is a single-row cylindrical roller thrust bearing with a 30mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages thrust loads up to 6075 lbf and operates smoothly at speeds up to 6000 RPM.

Its glass fibre reinforced PA66 cage offers durability while keeping the weight low at just 0.017kg. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

Designed with a universal washer (LS 3047), it simplifies installation in various setups. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for applications like pumps or compressors where high thrust loads are common. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81106 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 30 mm
  • Bore Dia Tolerance +0.04mm to +0.17mm
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.32mm to -0.71mm
  • Diameter Roller 5 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 31 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 46 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 6075 lbf
  • Static Radial Load 17550 lbf
  • Max Speed 6000 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.017 kg
  • Shaft Washer WS 81106
  • Housing Washer GS 81106
  • Universal Washer LS 3047

Features

Performance Features of K 81106 TN Bearing

K 81106 TN Bearing is built with chrome steel rollers, offering strong resistance to thrust loads.
Its dynamic radial load capacity reaches 6075 lbf, ensuring reliable performance in demanding conditions.

The glass fibre reinforced PA66 cage keeps the rollers aligned, reducing friction and wear.
This design enhances the bearing’s longevity, even under continuous operation.

K 81106 TN Bearing operates smoothly at speeds up to 6000 rpm.
Its temperature range of -30° to 110 °C makes it suitable for various environments.

The bearing’s compact size (30 mm x 47 mm x 5 mm) allows for easy integration into different systems.
Its lightweight design (0.017 kg) further simplifies installation and handling.

Application

Industrial Uses of K 81106 TN Bearing
K 81106 TN Bearing is commonly used in machine tools, where its cylindrical roller design efficiently handles high thrust loads. The glass fibre reinforced cage offers durability in demanding industrial environments.

Where Is K 81106 TN Bearing Used?
You’ll often find K 81106 TN Bearing in automotive transmissions, providing reliable performance under heavy axial loads. Its compact size and metric dimensions make it a versatile choice for various vehicle models.

Perfect Fit for Automation: K 81106 TN Bearing
K 81106 TN Bearing works well in robotic arms, ensuring smooth movement with its high-speed capability. The chrome steel rollers and reinforced cage enhance its longevity in continuous operation.

Medical vs Industrial: Where K 81106 TN Bearing Excels
In medical devices like lab equipment, K 81106 TN Bearing offers precision and reliability. Its temperature resistance and compliance with RoHS standards make it suitable for sensitive applications.
