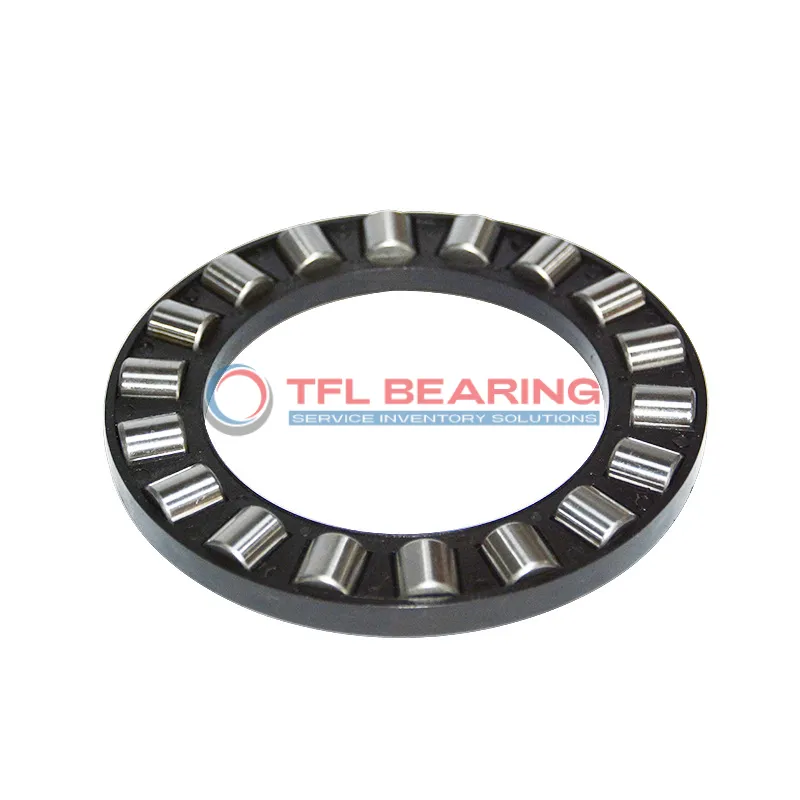

Single Row Cylindrical Roller Thrust Bearings assembly K 81103 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81103 TN

The K 81103 TN is a compact single-row cylindrical roller thrust bearing, measuring 17mm by 30mm by 3.5mm. Made from chrome steel, it’s built to handle heavy thrust loads with ease.

It supports dynamic radial loads up to 2745 lbf and spins smoothly at speeds up to 8500 RPM. The glass fibre reinforced PA66 cage adds durability while keeping the weight light at just 0.009kg.

Its design includes separate shaft and housing washers for easy installation. The bearing performs well in temperatures from -30°C to 110°C, making it versatile for various conditions.

Ideal for applications like pumps or gearboxes where space is limited but high thrust capacity is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81103 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 17 mm
  • Bore Dia Tolerance +0.032mm to +0.142mm
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.30 mm to -0.63mm
  • Diameter Roller 3.5 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 18 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 29 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 2745 lbf
  • Static Radial Load 7088 lbf
  • Max Speed 8500 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.009 kg
  • Shaft Washer WS 81103
  • Housing Washer GS 81103
  • Universal Washer LS 1730

Features

Performance Features of K 81103 TN Bearing

K 81103 TN Bearing is built with chrome steel rollers, offering strong resistance to thrust loads.
Its dynamic radial load capacity reaches 2745 lbf, ensuring reliable performance in various applications.

The glass fibre reinforced PA66 cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 8500 rpm, it balances durability and efficiency.

K 81103 TN Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its compact size of 17 mm x 30 mm x 3.5 mm makes it suitable for space-constrained installations.

The bearing’s design ensures easy maintenance and long-lasting performance.
Its compatibility with SKF models adds to its versatility and convenience.

Application

Key Fields for K 81103 TN Bearing
K 81103 TN Bearing is commonly used in industrial machinery, especially in applications where high thrust loads are present, like hydraulic pumps and gearboxes. Its compact size and cylindrical roller design ensure efficient load distribution.

What Makes K 81103 TN Bearing a Preferred Choice?
In automotive systems, K 81103 TN Bearing fits well in clutch mechanisms and steering columns, thanks to its durable chrome steel rollers. The glass fibre reinforced cage adds extra strength for high-speed operations.

Built for Heavy-Duty Use: K 81103 TN Bearing
For automation equipment, K 81103 TN Bearing provides reliable performance in robotic arms and conveyor systems. Its metric sizing makes it easy to integrate into various European and Asian machinery designs.

Medical vs Industrial: Where K 81103 TN Bearing Excels
While K 81103 TN Bearing isn’t typically used in medical devices, it shines in industrial settings like packaging machines. The PA66 cage material ensures smooth operation even under continuous use.

Practical Applications of K 81103 TN Bearing
In consumer electronics, K 81103 TN Bearing can be found in high-performance printers and small appliances. Its lightweight design and high-speed capability make it a versatile choice for compact devices.
