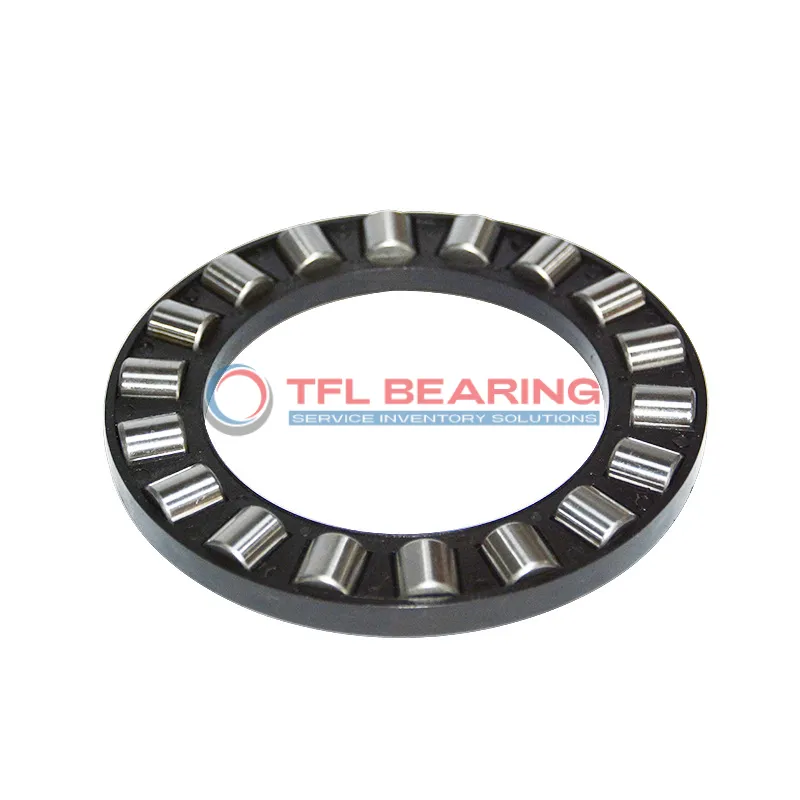

Single Row Cylindrical Roller Thrust Bearings assembly K 81102 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81102 TN

The K 81102 TN is a compact single-row cylindrical roller thrust bearing, measuring 15mm by 28mm by 3.5mm. It’s made from chrome steel for durability and features a glass fibre reinforced PA66 cage for smooth operation.

This bearing handles thrust loads up to 2520 lbf and spins at speeds up to 8500 RPM. Its design ensures reliable performance in temperatures ranging from -30°C to 110°C.

The cylindrical rollers provide excellent load distribution, making it suitable for high-thrust applications. It’s interchangeable with SKF bearings, offering a practical replacement option.

Ideal for use in gearboxes, pumps, or industrial machinery where space is limited but high thrust capacity is needed. Compliant with RoHS and REACH standards, it’s both safe and efficient. Weighing just 0.006kg, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81102 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 15 mm
  • Bore Dia Tolerance +0.032mm to +0.142mm
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.30 mm to -0.63mm
  • Diameter Roller 3.5 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 16 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 27 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 2520 lbf
  • Static Radial Load 6075 lbf
  • Max Speed 8500 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.006 kg
  • Shaft Washer WS 81102
  • Housing Washer GS 81102
  • Universal Washer LS 1528

Features

How Does K 81102 TN Bearing Handle Thrust Loads?

K 81102 TN Bearing features a single row cylindrical roller design, optimised for high thrust load applications.
The chrome steel rollers ensure durability and consistent performance under pressure.

With a dynamic radial load capacity of 2520 lbf, K 81102 TN Bearing is reliable in demanding conditions.
Its glass fibre reinforced PA66 cage maintains roller alignment, reducing friction and wear.

K 81102 TN Bearing operates smoothly at speeds up to 8500 rpm, balancing speed and load capacity.
The temperature range of -30° to 110 °C makes it suitable for various environments.

The compact size of 15 mm x 28 mm x 3.5 mm allows for easy integration into different systems.
Its lightweight design at 0.006 kg ensures minimal impact on overall assembly weight.

Application

Industrial Uses of K 81102 TN Bearing
K 81102 TN Bearing is commonly used in machine tools, where its cylindrical roller design handles high thrust loads efficiently. The glass fibre reinforced cage ensures durability even in demanding industrial environments.

Where Is K 81102 TN Bearing Used?
You’ll often find K 81102 TN Bearing in automotive gearboxes, providing smooth operation under heavy thrust conditions. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: K 81102 TN Bearing
K 81102 TN Bearing works well in robotic arms, offering reliable performance in high-speed applications. The chrome steel rollers and reinforced cage make it suitable for continuous operation.

Medical vs Industrial: Where K 81102 TN Bearing Excels
In medical devices like lab equipment, K 81102 TN Bearing ensures precise movement with minimal friction. For industrial uses, it’s a go-to for conveyor systems needing consistent thrust load support.

How Does K 81102 TN Bearing Support High-Speed Operations?
K 81102 TN Bearing’s design allows it to maintain stability at speeds up to 8500 rpm, ideal for precision machinery. The temperature range also makes it adaptable to various working conditions.
