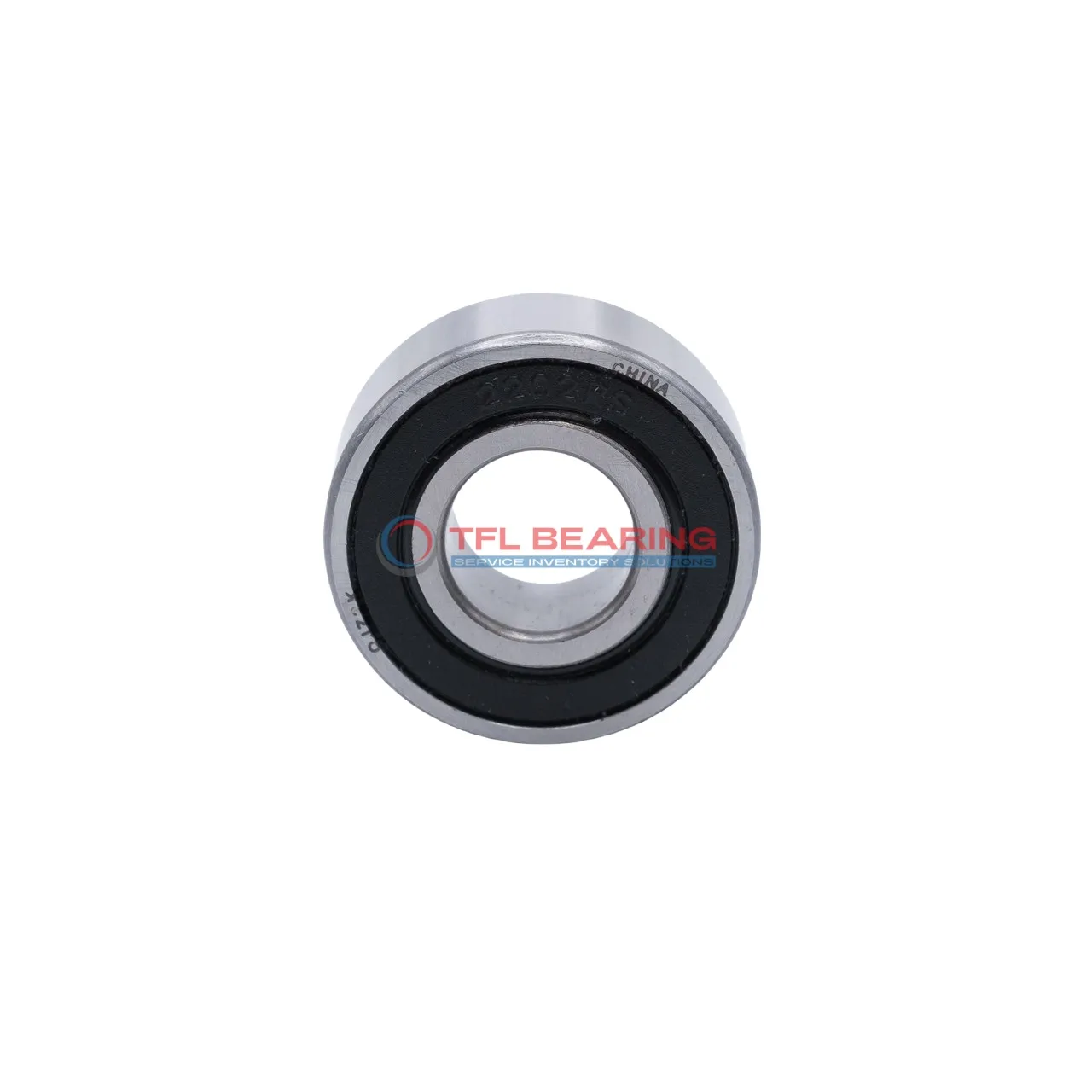

Self Aligning Ball Bearings S2200-2RS-TV

Self Aligning Ball Bearings S2200-2RS-TV

The S2200-2RS-TV is a compact self-aligning ball bearing, measuring 10mm by 30mm by 14mm, crafted from durable chrome steel. It handles radial loads up to 1244 lbf and spins smoothly at speeds up to 17000 RPM.

Its double-row design and sealed construction help maintain alignment and keep dirt out, while the nylon cage reduces friction. The bearing comes pre-lubricated for easy installation and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or conveyor systems where misalignment might occur.

Weighing just 0.048kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S2200-2RS-TV
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 14.6 mm
  • Internal Diameter On Outer Ring 24.72 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8665 lbf
  • Static Radial Load 71890 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.048 kg
Self Aligning Ball Bearings S2200-2RS-TV dimension drawing
Download DWG Download PDF

Features

How Does S2200-2RS-TV Bearing Reduce Friction?

S2200-2RS-TV Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
The sealed construction keeps contaminants out, maintaining consistent performance over time.
Its nylon cage minimises friction, allowing for quieter operation at speeds up to 17,000 rpm.
With a dynamic radial load capacity of 1244 lbf, it offers reliable performance in various applications.

Application

Industrial Uses of S2200-2RS-TV Bearing
S2200-2RS-TV Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

How Does S2200-2RS-TV Bearing Improve Performance?
In electric motors, S2200-2RS-TV Bearing reduces friction and noise, thanks to its nylon cage and smooth chrome steel balls. This makes it ideal for applications where quiet operation is important.

Built for Heavy-Duty Use: S2200-2RS-TV Bearing
S2200-2RS-TV Bearing handles radial loads effortlessly in agricultural machinery, such as harvesters and tractors. Its double-row construction provides extra stability under tough working conditions.

Automotive vs Aerospace: Applications of S2200-2RS-TV Bearing
In cars, S2200-2RS-TV Bearing is often found in wheel hubs, offering reliable performance. For aerospace, its lightweight design and precision make it suitable for auxiliary equipment.

Perfect Fit for Automation: S2200-2RS-TV Bearing
S2200-2RS-TV Bearing works well in robotic arms, where its ability to handle misalignment ensures smooth movement. The lubricated design also reduces maintenance needs in high-speed applications.
