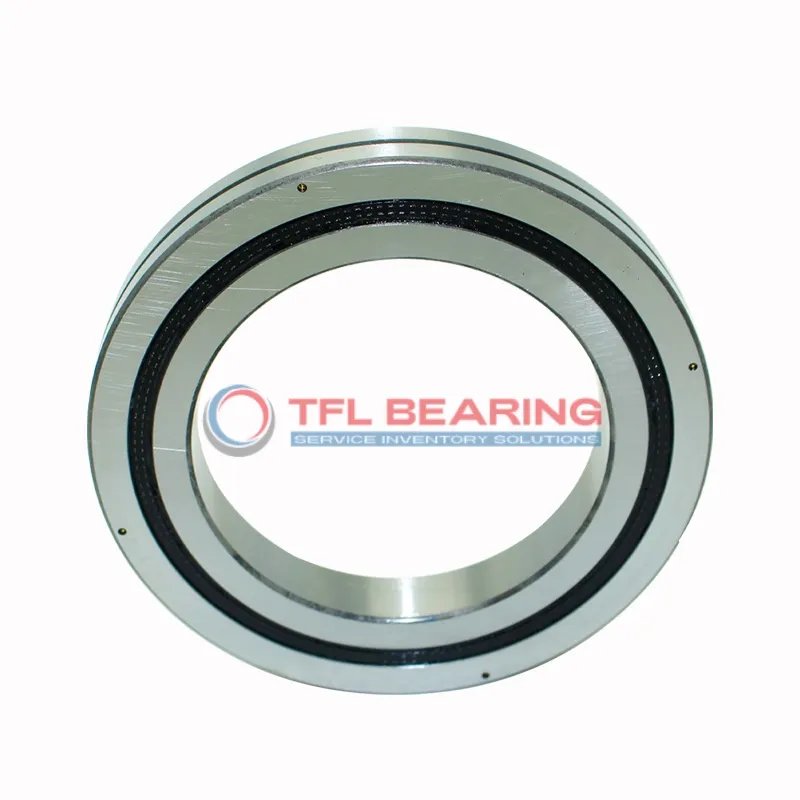

RB Crossed Roller Bearings RB5013UU

RB Crossed Roller Bearings RB5013UU

The RB5013UU is a crossed roller bearing with a compact size of 50mm x 80mm x 13mm, made from sturdy steel for reliable performance. It handles combined loads up to 16.7 kN and is designed for press-fit mounting.

Its double-sealed construction keeps out contaminants, making it suitable for dusty or demanding environments. The bearing operates smoothly in temperatures ranging from 0°C to 110°C.

With an ABEC5 precision rating (also available in higher grades), it offers accurate rotation for precision applications. The crossed roller design provides excellent stability under load.

Ideal for robotics, medical equipment or machine tools where space is limited but precision is crucial. Compliant with RoHS and REACH standards, it weighs just 0.27kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RB5013UU
  • Brand TFL
  • size 50 mm x 80 mm x 13 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 50 mm
  • Outer Dia 80 mm
  • Width 13 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 57 mm
  • Shoulder Height Dh(min) 72 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 16.7 kN
  • Basic Load Rating Co 20.9 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.27 Kg

Features

Performance Features of RB5013UU Bearing

RB5013UU Bearing is designed with crossed rollers, providing excellent load capacity for combined radial and axial forces.
Its steel construction ensures durability, while the double seal protects against contaminants.
The bearing operates efficiently within a temperature range of 0 to 230°F, making it suitable for various industrial applications.
With an ABEC5 rating, RB5013UU Bearing offers precision and reliability in high-performance settings.

Application

Industrial Uses of RB5013UU Bearing
RB5013UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The double seal helps keep contaminants out, extending service life in demanding workshop conditions.

Where Is RB5013UU Bearing Used?
You’ll often find RB5013UU Bearing in robotics, particularly in articulated arms that require smooth, precise movement. Its compact 50x80x13mm size makes it ideal for space-constrained applications without sacrificing load capacity.

Built for Heavy-Duty Use: RB5013UU Bearing
This bearing handles combined loads effortlessly, making it perfect for packaging machinery that undergoes constant start-stop cycles. The steel construction and ABEC5 rating ensure reliable performance even at moderate speeds.

Medical vs Industrial: Where RB5013UU Bearing Excels
While RB5013UU Bearing performs well in industrial automation, its precision also suits medical imaging devices needing minimal vibration. The press-fit mounting simplifies installation in both environments.

Perfect Fit for Automation: RB5013UU Bearing
In 3D printers and CNC equipment, RB5013UU Bearing’s low-profile design maintains accuracy during repetitive movements. The required lubrication is easily maintained through regular servicing intervals.
