One Way Bearing 1WC0608

One Way Bearing 1WC0608

The 1WC0608 is a compact one-way needle bearing with a 6mm bore and 10mm outer diameter, crafted from sturdy steel. It allows rotation in a single direction, making it useful for applications requiring controlled movement.
With a torque capacity of 0.44 Nm, it handles moderate loads efficiently. Its open design simplifies lubrication, ensuring smooth operation over time.
The press-fit shaft mount ensures a secure installation, while the steel construction offers durability. It operates reliably in temperatures ranging from -30°C to 110°C.
Ideal for small machinery or devices where one-directional rotation is needed, such as conveyor systems or automotive components. Lightweight at just 2g, it’s easy to integrate into various designs. Compliant with RoHS standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1WC0608
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 6 mm
  • Outer Dia 10 mm
  • Width 8 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Seal Type Open
  • Series 1WC Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Steel
  • Torque Capacity 0.44 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 2 g

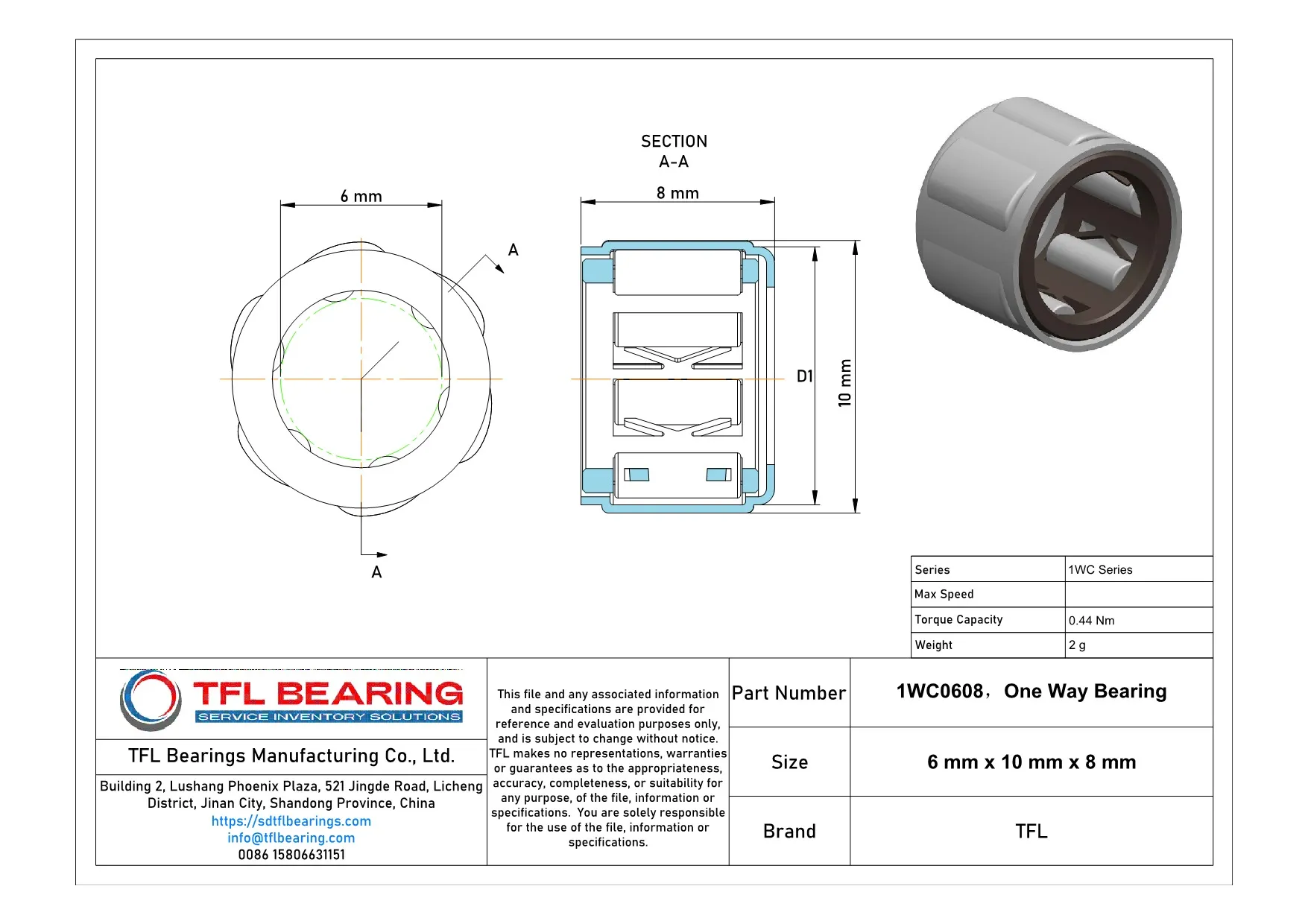

One Way Bearing 1WC0608 dimension drawing
Download DWG Download PDF

Features

How Is 1WC0608 Bearing Engineered for Reliability?
1WC0608 Bearing features a steel construction, ensuring durability and resistance to wear.
Its press-fit shaft mount type provides a secure installation, reducing the risk of slippage.
The needle roller design of 1WC0608 Bearing enhances torque capacity up to 0.44 Nm.
This makes it suitable for applications requiring precise motion control.
With a temperature range of -30° to 110°C, 1WC0608 Bearing performs reliably in various conditions.
Its lubricated design further ensures smooth operation with minimal maintenance.

Application

Industrial Uses of 1WC0608 Bearing
1WC0608 Bearing is commonly used in conveyor systems, where its one-way rotation feature ensures smooth material handling. The press-fit design makes installation straightforward, saving time during assembly.
In automotive applications, 1WC0608 Bearing is ideal for gearbox mechanisms, providing reliable torque transmission. Its compact size and steel construction make it suitable for tight spaces and high-load conditions.
For automation equipment, 1WC0608 Bearing excels in robotic arms, where precise movement control is essential. The lubricated design reduces friction, extending the bearing’s lifespan in continuous operation.
Where Is 1WC0608 Bearing Used?
You’ll often find 1WC0608 Bearing in printers, where its one-way function prevents paper jams. The lightweight design and steel needles ensure durability without adding bulk.
In electric tools, 1WC0608 Bearing supports mechanisms like drill chucks, offering consistent performance. The open seal allows for easy maintenance, keeping tools running smoothly.
