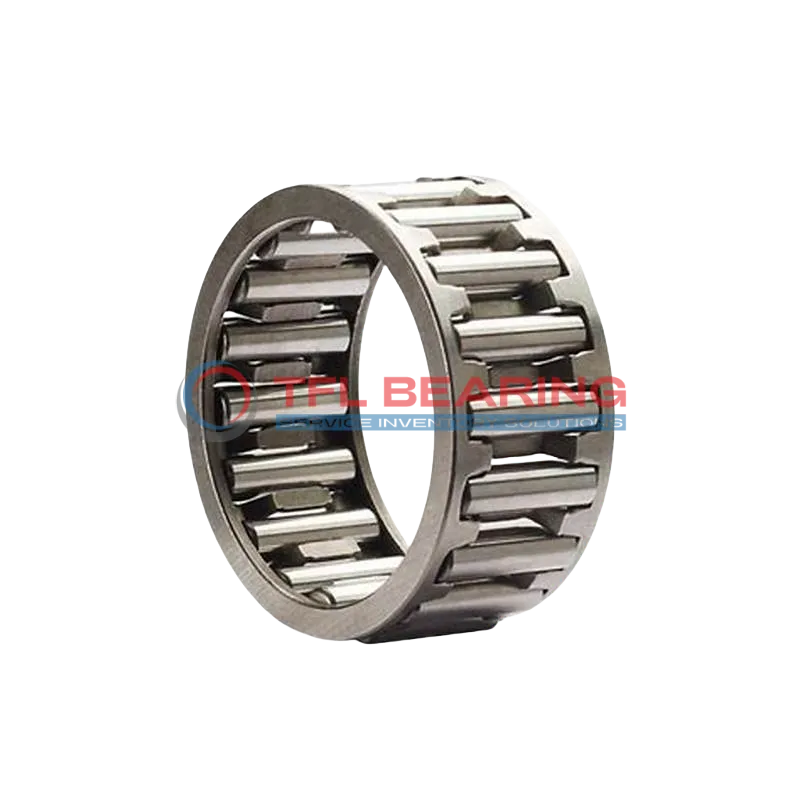

Needle Roller And Cage Assemblies K28X33X17

Needle Roller And Cage Assemblies K28X33X17

The K28X33X17 is a needle roller and cage assembly with a 28mm bore and 33mm outer diameter, crafted from sturdy steel. It handles radial loads up to 4432 lbf and spins smoothly at speeds up to 16100 RPM.
Its single-row design with a steel cage ensures durability and consistent performance. The compact width of 17mm makes it suitable for tight spaces.
This assembly is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like gearboxes or automotive components where high-speed rotation is needed.
Weighing just 17g, it’s lightweight yet robust. Compliant with RoHS standards and operates in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K28X33X17
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 28 mm
  • Outer Dia 33 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 4432 lbf
  • Static Radial Load 7538 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 16100 rpm
  • Weight 17 g
Needle Roller And Cage Assemblies K28X33X17 dimension drawing
Download DWG Download PDF

Features

How Does K28X33X17 Bearing Achieve High-Speed Performance?
K28X33X17 Bearing features a steel cage and needle rollers, designed for smooth operation at high speeds.
Its dynamic radial load capacity of 4432 lbf ensures reliable performance in demanding conditions.
The compact design with a width of 17 mm makes it suitable for applications where space is limited.
With a maximum speed of 16,100 rpm, it balances efficiency and durability.

Application

Key Fields for K28X33X17 Bearing
K28X33X17 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, K28X33X17 Bearing fits well in transmission systems, providing smooth rotation under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K28X33X17 Bearing offers reliable performance in robotic arms and conveyor systems. The high-speed capability ensures efficiency in repetitive motion tasks.
Medical devices like surgical tools benefit from K28X33X17 Bearing’s precision and low weight. The steel needles provide consistent performance in critical applications.
In consumer electronics, K28X33X17 Bearing can be found in printers and small appliances. Its compact size and durability make it suitable for everyday use.
