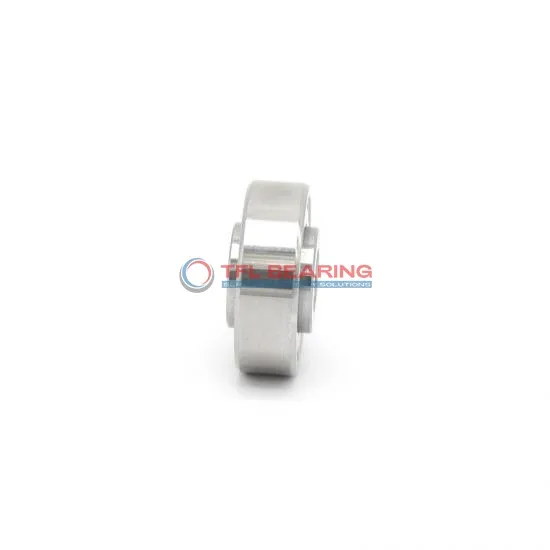

Miniature Ball Bearings with Extended Inner Ring SRW1-4

Miniature Ball Bearings with Extended Inner Ring SRW1-4

The SRW1-4 is a miniature ball bearing with an extended inner ring, measuring just 0.078″×0.25″×0.125″. Made entirely from stainless steel, it offers good corrosion resistance and durability.

It handles radial loads up to 49 lbf and spins at speeds up to 60,300 RPM, making it suitable for high-speed applications. The open design requires lubrication but allows for easy maintenance.

The extended inner ring provides better mounting stability, while the ABEC1 tolerance ensures smooth operation. Its small size and lightweight (0.53g) make it ideal for precision instruments.

Perfect for use in small motors, medical devices, or optical equipment where space is limited. Compliant with RoHS and REACH standards for safe use in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SRW1-4
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 0.07813"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.25"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.0937"
  • Width Tolerance -0.005" to 0"
  • External Diameter On Inner Ring 0.122"
  • Inner Ring Width 0.125"
  • Ball Qty 7
  • Ball Dia 0.0394"
  • Radial Clearance 0.00008" to 0.0005"
  • System of Measurement Inch
  • Seal Type Open
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Extended
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 49 lbf
  • Static Radial Load 15 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 60300 rpm
  • Weight 0.53 g
  • Price（$） 4.158
Miniature Ball Bearings with Extended Inner Ring SRW1-4 dimension drawing
Download DWG Download PDF

Features

Why Choose SRW1-4 Bearing for Precision Tasks?

SRW1-4 Bearing features a stainless steel construction, ensuring corrosion resistance and durability.
Its extended inner ring design provides better alignment and ease of installation in compact spaces.

With a dynamic radial load capacity of 49 lbf, SRW1-4 Bearing handles precise radial loads efficiently.
The ABEC1 tolerance class ensures reliable performance in applications requiring moderate precision.

SRW1-4 Bearing operates smoothly at speeds up to 60,300 rpm, making it suitable for high-speed devices.
Its open design allows for easy lubrication, maintaining optimal performance over time.

The miniature size of SRW1-4 Bearing makes it ideal for applications where space is limited.
Its stainless steel balls and rings ensure long-lasting performance even in demanding conditions.

Application

Common Applications of SRW1-4 Bearing
SRW1-4 Bearing is commonly used in small electric motors, where its compact size and stainless steel construction ensure reliable performance. The extended inner ring makes it easier to install in tight spaces, ideal for precision devices.

In robotics, SRW1-4 Bearing supports lightweight joints and pivots, offering smooth movement with minimal friction. Its high-speed capability suits applications like drone rotors or small automated tools.

For medical instruments, SRW1-4 Bearing’s corrosion-resistant materials are perfect for devices requiring frequent sterilization. The open design allows for easy lubrication, maintaining efficiency in delicate equipment.

Around the home, SRW1-4 Bearing can be found in appliances like cooling fans or small power tools. Its durability and low maintenance make it a practical choice for everyday use.
