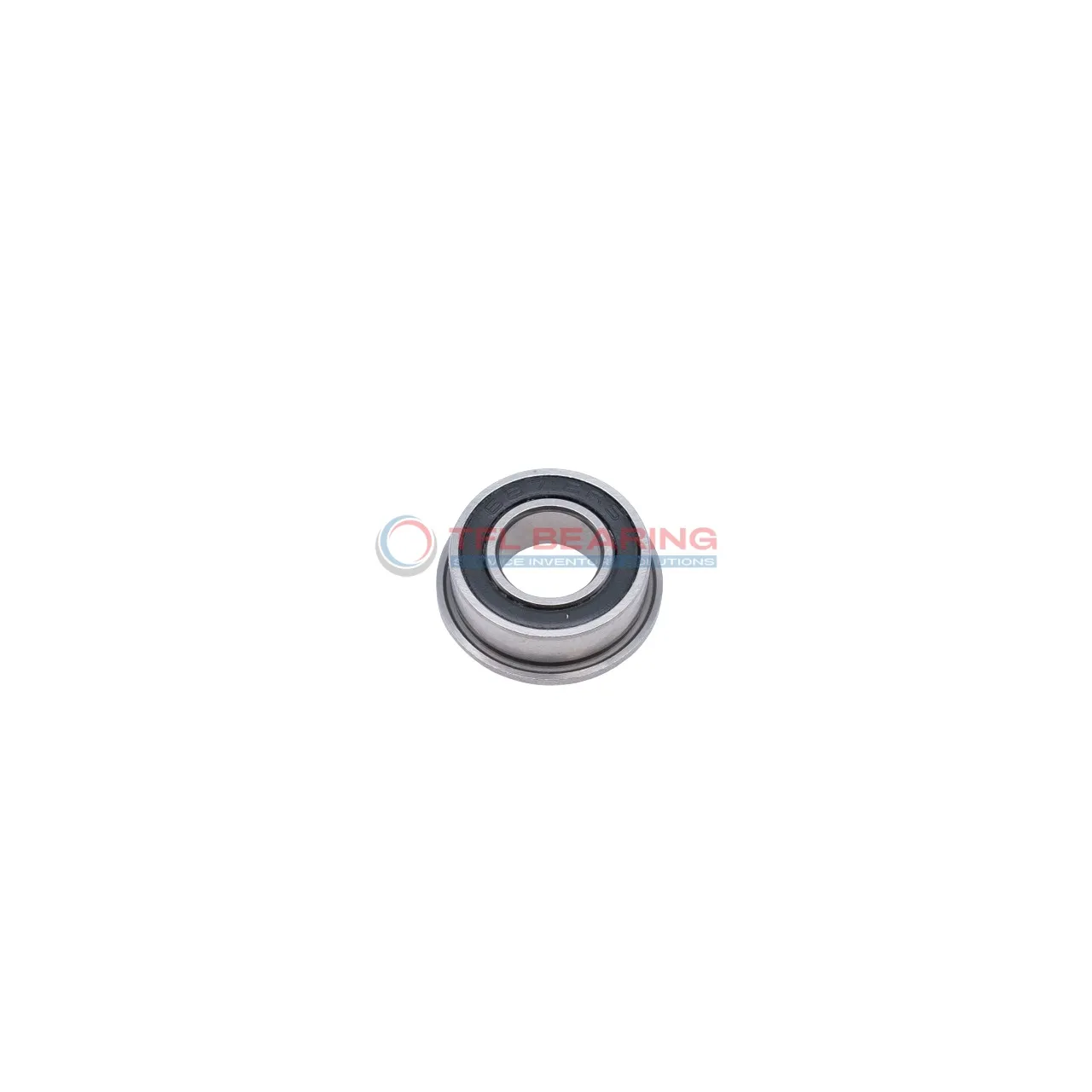

Metric Size Miniature Flanged Ball Bearings F607 2rs

Metric Size Miniature Flanged Ball Bearings F607 2rs

The F607 2rs is a compact, sealed ball bearing with a 7mm bore and 19mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 447 lbf and spins smoothly at speeds up to 36,000 RPM.

Its nitrile rubber seals keep dirt out and grease in, making it low-maintenance. The stainless steel cage ensures reliable performance, even in demanding conditions.

With a radial clearance of 0.002mm to 0.013mm, it offers smooth operation for precision applications. The flange design adds stability, with a 22mm outer diameter and 1.5mm thickness.

Ideal for small machinery or electric motors where space is limited. It operates in temperatures from -30°C to 110°C and meets RoHS and REACH standards. Weighing just 9.37g, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F607 2rs
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 3.5000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Sealed
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 36000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.37 g
  • Shield Material Nitrile Rubber
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings F607 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose F607 2rs Bearing for Precision Tasks?

F607 2rs Bearing features a sealed design with nitrile rubber shields, protecting against dust and moisture.
Its chrome steel construction ensures durability and smooth operation in radial load applications.
With a dynamic radial load capacity of 447 lbf, it handles demanding tasks efficiently.
The bearing’s ABEC1 tolerance class and precise radial clearance provide reliable performance for precision instruments.

Application

Practical Applications of F607 2rs Bearing
F607 2rs Bearing is commonly used in small electric motors, such as those found in household appliances or power tools. Its sealed design helps keep out dust and moisture, ensuring reliable performance in everyday conditions.

In automotive applications, F607 2rs Bearing fits well in components like alternators or cooling fans, where its compact size and radial load capacity are beneficial. The chrome steel construction also provides good durability for these uses.

For hobbyist projects like RC cars or drones, F607 2rs Bearing offers smooth rotation at high speeds. The lightweight design and ABEC1 tolerance make it a practical choice for precision-focused builds.

In office equipment such as printers or scanners, F607 2rs Bearing contributes to quiet operation and long service life. The nitrile rubber seals help maintain performance even with frequent use.
