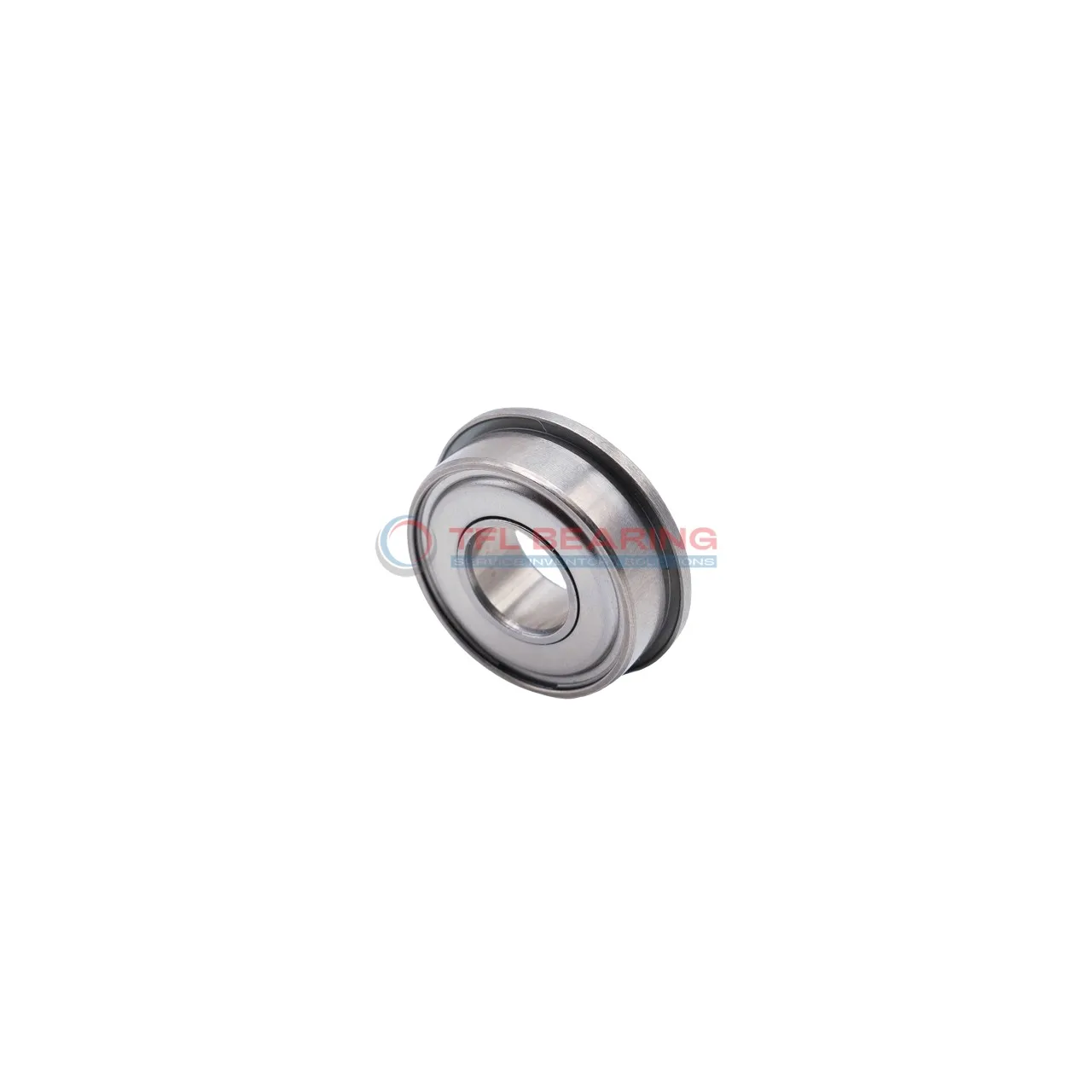

Metric Size Miniature Flanged Ball Bearings F601xzz

Metric Size Miniature Flanged Ball Bearings F601xzz

The F601xzz is a small, shielded ball bearing with a 1.5mm bore and 6mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 63 lbf and spins at speeds up to 75,000 RPM, making it suitable for high-speed applications.

Its stainless steel cage and shielded design help keep dirt out while maintaining smooth operation. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.

With a lightweight design at just 0.5g, it’s ideal for precision devices like small motors or instruments. Compliant with RoHS and REACH standards, it’s a reliable choice for compact machinery.

The flange adds stability during installation, ensuring it stays securely in place. Perfect for applications where space is limited but performance can’t be compromised.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F601xzz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 1.5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 7.5 mm
  • Flange Thickness 0.8 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 1.2000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 63 lbf
  • Static Radial Load 18 lbf
  • Max Speed 75000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.5 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 16.5
Metric Size Miniature Flanged Ball Bearings F601xzz dimension drawing
Download DWG Download PDF

Features

Why Choose F601xzz Bearing for Precision Tasks?

F601xzz Bearing features a shielded design with stainless steel shields, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 63 lbf, F601xzz Bearing handles precise movements efficiently.
The ABEC1 tolerance class guarantees consistent performance for high-speed applications up to 75,000 rpm.

F601xzz Bearing’s compact size (1.5 mm bore) makes it ideal for small, precision instruments.
Its stainless steel cage maintains ball alignment, reducing friction and extending service life.

Application

Common Applications of F601xzz Bearing
F601xzz Bearing is widely used in small electric motors, such as those found in cooling fans or miniature pumps, thanks to its compact size and high-speed capability. The shielded design helps keep contaminants out while maintaining smooth rotation.

In consumer electronics, F601xzz Bearing ensures reliable performance in devices like handheld gadgets or precision instruments where space is limited. Its chrome steel construction offers durability without adding unnecessary weight.

For hobbyist projects like model-making or DIY tools, F601xzz Bearing provides a cost-effective solution for smooth rotational movement. The ABEC1 tolerance ensures decent precision for most general-purpose applications.

Automotive Uses of F601xzz Bearing
F601xzz Bearing can be found in car dashboard components or small actuators, where its radial load capacity handles minor vibrations effectively. The stainless steel cage adds corrosion resistance for longer service life.

In medical devices like dental tools or portable monitors, F601xzz Bearing’s small dimensions and consistent performance make it a practical choice. The lubrication requirement ensures quiet operation in sensitive environments.
