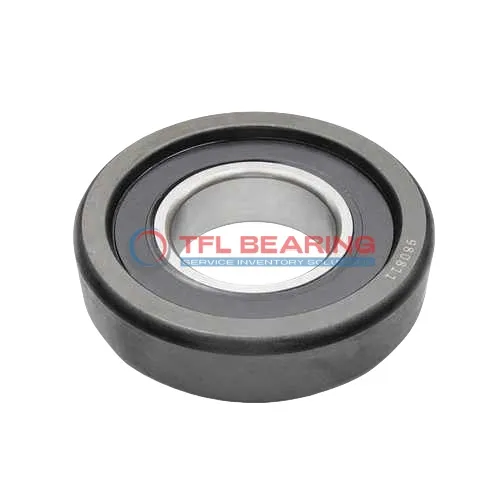

Mast Guide Bearings MG 305 T‑5

Mast Guide Bearings MG 305 T‑5

The MG 305 T-5 mast guide bearing is a compact unit measuring 25mm by 71mm by 21mm, crafted for durability. It handles dynamic loads up to 22,390 N and static loads up to 11,490 N, making it reliable for demanding applications.

With a 1.5mm radius design, it fits smoothly into tight spaces while reducing stress on surrounding components. The inner and outer ring widths (17mm and 21mm) provide stability during operation.

This bearing is ideal for mast guidance systems or industrial equipment where precision alignment is needed. Its lightweight construction (0.4082kg) ensures easy handling without compromising strength.

Suitable for both OEM replacements and new installations, it offers a balance of performance and practicality. The robust design ensures longevity in high-load environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 305 T‑5
  • Brand TFL & OEM
  • Inner Diameter (d) 25.000 mm
  • Outer Diameter (D) 71.00 mm
  • Inner Ring Width (b) 17 mm
  • Outer Ring Width (B) 21.000 mm
  • Radius (R) 1.5 mm
  • Dynamic Capacity (Cr.) 22,390 N
  • Static Capacity (Cor.) 11,490 N
  • Weight 0.4082 Kg
Mast Guide Bearings MG 305 T‑5 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 305 T‑5 Bearing

MG 305 T‑5 Bearing is built with a robust design, featuring an inner diameter of 25.000 mm and an outer diameter of 71.00 mm.
Its dynamic capacity of 22,390 N ensures reliable performance under heavy loads.

The inner ring width of 17 mm and outer ring width of 21.000 mm provide stability in various applications.
With a static capacity of 11,490 N, it offers durability and long service life.

The 1.5 mm radius design enhances load distribution, reducing stress on the bearing.
Weighing just 0.4082 Kg, it combines strength with lightweight efficiency.

Application

Industrial Uses of MG 305 T‑5 Bearing
MG 305 T‑5 Bearing is commonly used in mast guide systems, providing smooth movement and stability in lifting equipment. Its robust design handles dynamic loads well, making it suitable for construction machinery.

In automotive applications, MG 305 T‑5 Bearing ensures precise alignment in steering columns and suspension components. The 25mm bore size fits standard shafts, offering versatility for various vehicle models.

For automation setups, MG 305 T‑5 Bearing supports robotic arms and conveyor belts with its high dynamic capacity. The 1.5mm radius edge reduces stress concentrations, prolonging service life.

Where Is MG 305 T‑5 Bearing Used?
You’ll find MG 305 T‑5 Bearing in industrial fans, where its 71mm outer diameter provides ample support for rotating blades. The stainless steel construction resists corrosion in humid environments.

In packaging machinery, MG 305 T‑5 Bearing maintains accuracy during high-speed operations. Its 21mm width balances space efficiency with load-bearing capability.

Built for Heavy-Duty Use: MG 305 T‑5 Bearing
MG 305 T‑5 Bearing excels in agricultural equipment, handling dirt and debris without compromising performance. The 17mm inner ring width ensures stability under uneven loads.

For printing presses, MG 305 T‑5 Bearing’s 22,390N dynamic capacity keeps rollers running smoothly. The precision-ground surfaces minimise vibration for crisp print quality.
