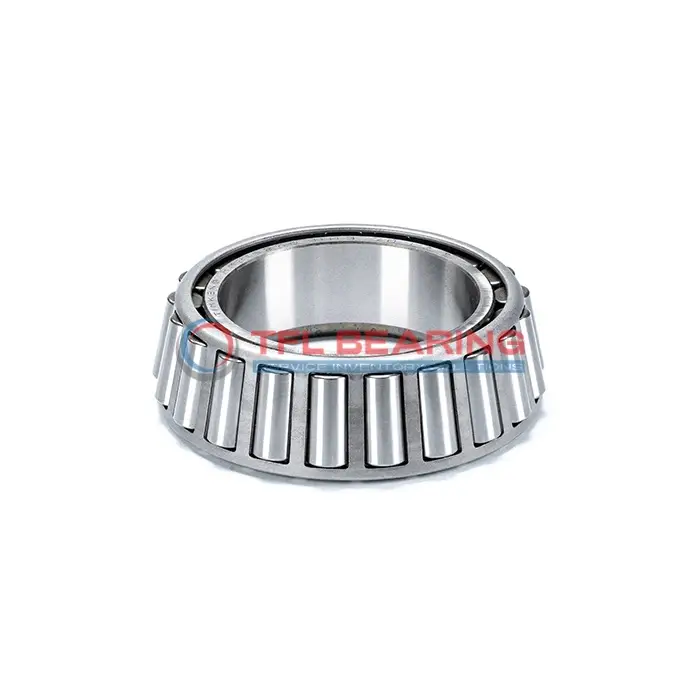

KL624549 Single Cones (Imperial)

KL624549 Single Cones (Imperial)

The KL624549 single cone is a tapered roller bearing with a 4.75-inch bore, designed for combined loads. Made from durable chrome steel, it handles radial loads up to 23,700 lbf and thrust loads up to 4,570 lbf.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.

Compliant with RoHS and REACH standards, it offers a balance of strength and durability. The standard radial clearance ensures easy installation and reliable operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KL624549
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number KL624549-KL624510
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4.75"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 0.8438"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 5"
  • Cone Backface Backing Diameter 5.08"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location 0.33"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 23700 lbf
  • Static Radial Load 46400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6140 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 41200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4570 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 10700 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of KL624549 Bearing

KL624549 Bearing is crafted with chrome steel rings and a steel cage, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 23,700 lbf, making it suitable for heavy-duty applications.
The tapered roller design ensures efficient load distribution, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

Application

Industrial Uses of KL624549 Bearing
KL624549 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is KL624549 Bearing Used?
You’ll often find KL624549 Bearing in automotive axles and wheel hubs, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: KL624549 Bearing
KL624549 Bearing excels in industrial gearboxes and conveyor systems, where its steel cage provides stability under high loads. The standard radial clearance offers flexibility for various operational needs.

Automotive vs Aerospace: Applications of KL624549 Bearing
In automotive settings, KL624549 Bearing supports wheel assemblies, while in aerospace, it’s used in landing gear systems. Its ABEC-1 rating ensures reliable performance across different industries.

Practical Applications of KL624549 Bearing
KL624549 Bearing is a go-to for agricultural machinery like tractors, where its robust design handles rough terrain. The temperature range of -30° to 110°C makes it suitable for diverse climates.
